MRV-ST Polariscope Strain Viewer
Rainbow Viewer for Visual Strain Inspection
MRV-ST is a visual strain inspection system for observing residual stress, strain and birefringence patterns in transparent or translucent materials such as molded plastic, glass, lenses, films and optical components.
A large A4-size LED polarized light stage and an observation analyzer make it possible to inspect a wide range of objects, from small parts to larger samples. The system supports cross Nicols, parallel Nicols and sensitive color observation with a simple, robust structure.
MRV-ST Standard System
|
|
Cross Nicols / Sensitive Color Method
Cross Nicols
Sensitive Color
Cross Nicols observation is suitable for transparent resin and other materials
with relatively
large strain. Sensitive color observation is useful for glass and materials
with smaller strain differences.
System Composition & Price
|
|
Digital Camera System - Canon G7X Mark III System / Olympus TG-7 System
| Set Code | Price | System Composition | ||
| MRV-ST | US$ 1,290 |
|
||
| MRVST-G7XM3 | US$ 2,570 |  |
||
| MRVST-TG7 | US$ 1,880 |  |
||
| Product Code | MRV-ST | G7XM3-SET | TG7-SET | |
| Price | US$ 1,290 | US$ 1,280 | US$ 590 | |
Features
Cross Nicols / CD Case
Cross Nicols / Plastic Case
Cross Nicols / Glass
Sensitive Color / Glass
One Device,
Three Observation Methods
Using the front and back of a single analyzer filter allows three observation methods: cross Nicols, parallel Nicols and sensitive color method.
- Cross Nicols: suitable for observing transparent objects with larger strain, such as injection-molded resin parts.
- Parallel Nicols: useful for checking optical changes under a different polarization condition.
- Sensitive Color Method: useful for glass and other materials with smaller strain differences. Subtle stress patterns become easier to see as color differences.

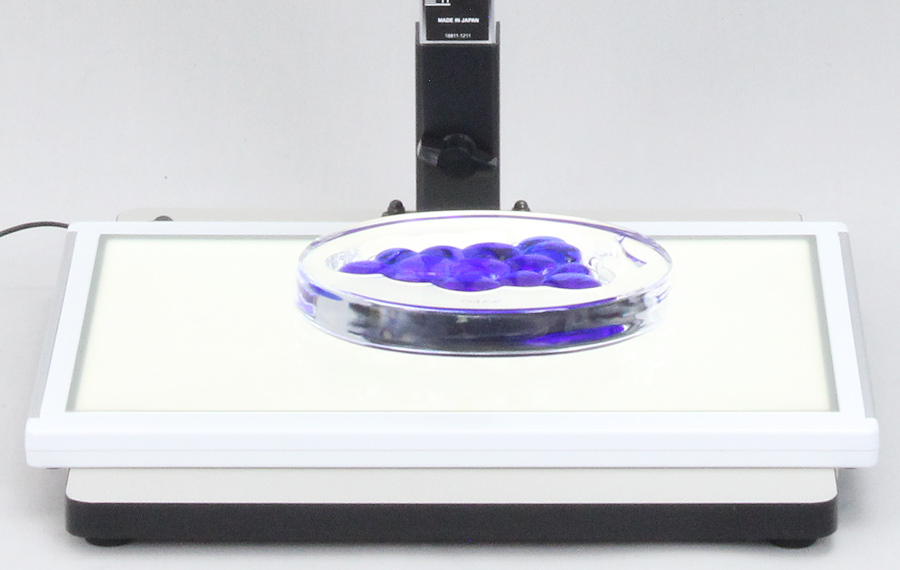

Large A4-Size
LED Polarized Light Stage
The high-brightness polarized light source has a large A4-size luminous surface, allowing larger specimens to be checked in their entirety. The LED light source has an approximate lifetime of 40,000 hours, reducing the need for lamp replacement.
Adjustable Macro Stand
With the macro stand, the working distance can be adjusted easily for both thick and thin samples. A digital camera or smartphone can also be mounted to support image documentation.
Live Image Sharing via HDMI
When using a compatible camera, video can be recorded in Full HD and live images can be shared on a TV or monitor via HDMI. This is useful when multiple people need to observe and evaluate the same image simultaneously.
Camera Information
Canon PowerShot G7X Mark III
Recommended when higher imaging sensitivity is needed. The adjustable tilt monitor, large 1-inch sensor and bright F1.8 lens help capture faint strain patterns and subtle brightness differences.
Canon Website
Olympus Tough TG-7
Suitable for a simple, rugged and affordable workflow. The TG-7 camera set is useful for practical laboratory and inspection environments.
OM System WebsiteSpecification
| LED Lightbox Luminous Surface |
High-contrast linear polarizer, size: 210 x 297 mm |
|---|---|
| Analyzer Filter | Linear polarizer / high-transmittance sensitive color plate External dimensions: 177 x 177 mm Effective size: 143 x 143 mm |
| Observation Methods | Cross Nicols, parallel Nicols and sensitive color method |
| Working Distance Range | Lightbox to analyzer filter: 100-320 mm adjustable |
| Body Size | Base plate: 300 mm wide x 360 mm deep Pillar height: 574 mm from desktop surface |
| Weight | Body: 2.7 kg / LED lightbox: 1.5 kg |
| Power Supply for Lightbox | Input: AC 100-240 V, 50/60 Hz universal Output: DC 12 V, 1 A |
FAQ
What types of samples are suitable for MRV-ST?
MRV-ST is suitable for transparent or translucent materials such as plastic molded parts, clear resin components, glass plates, lenses, optical filters, films and transparent panels.
What is the difference between cross Nicols and sensitive color method?
Cross Nicols observation shows stress patterns mainly as brightness differences. The sensitive color method helps visualize small strain differences as color changes, which can make subtle stress patterns easier to see.
Can I document images with a camera?
Yes. MRV-ST includes a camera mount and smartphone adapter. Camera set configurations are also available for digital documentation.
