Ocular Micrometer / Microscope Reticle

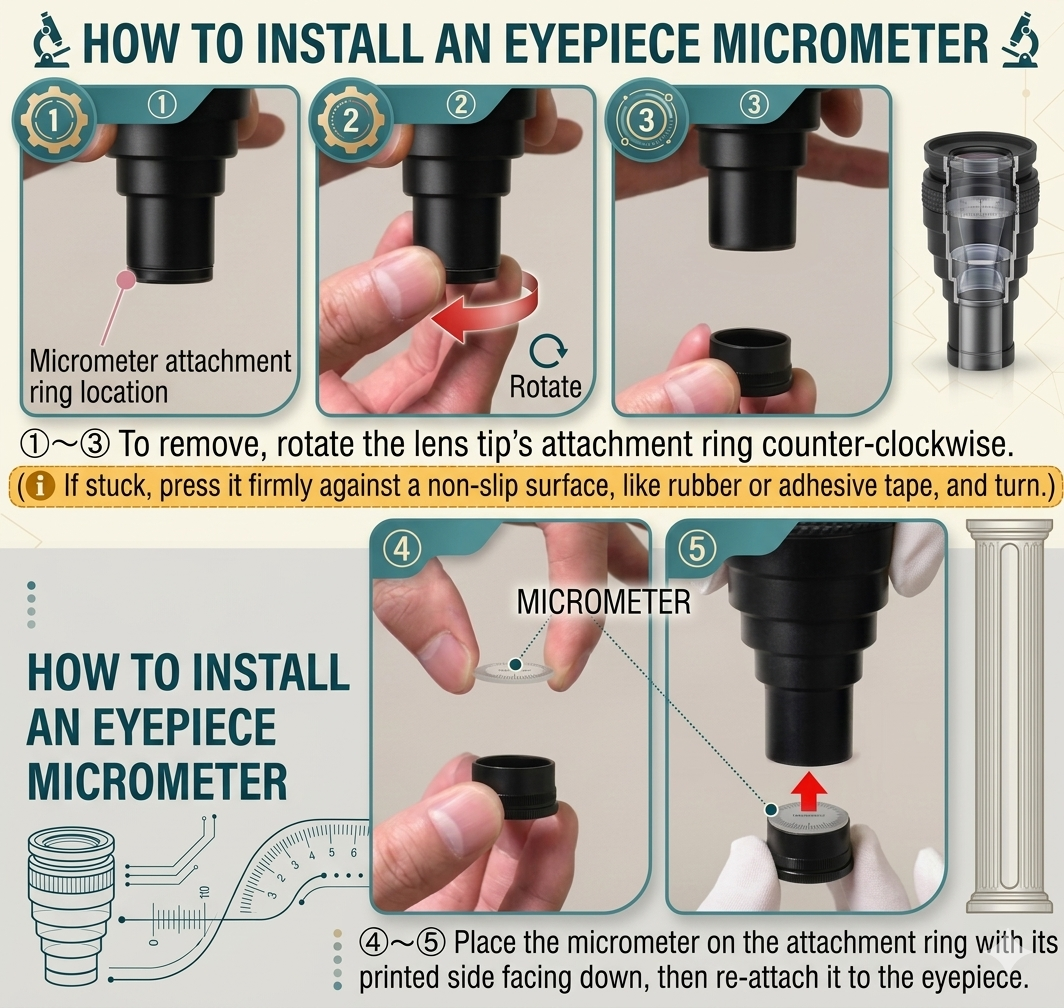

Ocular micrometers are installed in the eyepiece and provide a reference scale or pattern in the microscope field of view. Select the reticle pattern according to the measurement task, then confirm the correct reticle diameter for the eyepiece model.
This lineup is organized by reticle design. Each series block shows the available pattern designs first, followed by a size / model table.
How to Read the Eyepiece Model Number
How to read product model number
Micrometer size compatibility varies by eyepiece manufacturer and model number. Before selecting an ocular micrometer, please check the product model number printed on the eyepiece.
Refer to the figure on the left to find your eyepiece model number, then check the Compatible Sizes List to select the correct micrometer diameter.
Ocular Micrometer - Scale Series
S11
10 mm / 100 divisions
Pitch 0.1 mm
S12
10 mm / 200 divisions
Pitch 0.05 mm

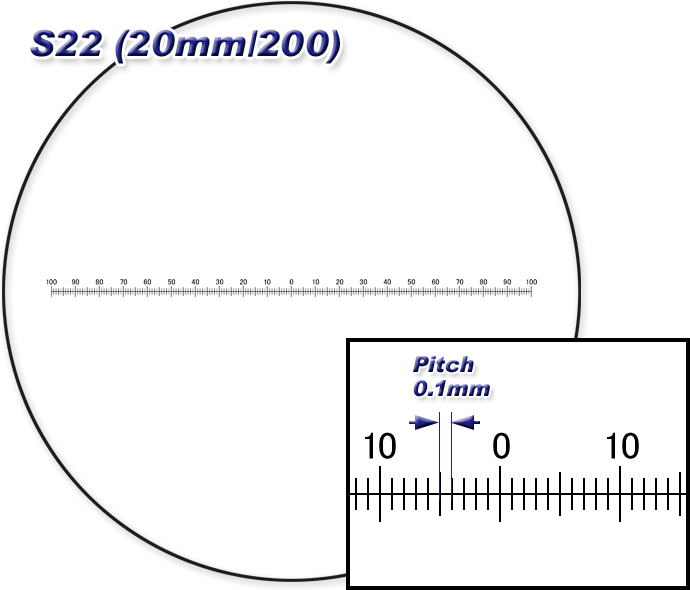

S22
20 mm / 200 divisions
Pitch 0.1 mm
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| S11 | Model | S1119 | S11204 | S1121 | S1124 | S1125 | S1127 |
| Price | US$ 76 | US$ 76 | US$ 76 | US$ 81 | US$ 88 | US$ 92 | |
| S12 | Model | S1219 | S12204 | S1221 | S1224 | S1225 | S1227 |
| Price | US$ 99 | US$ 99 | US$ 99 | US$ 104 | US$ 110 | US$ 115 | |
| S22 | Model | - | - | S2221 | S2224 | S2225 | S2227 |
| Price | - | - | US$ 104 | US$ 110 | US$ 115 | US$ 121 |
Ocular Micrometer - Cross X Series

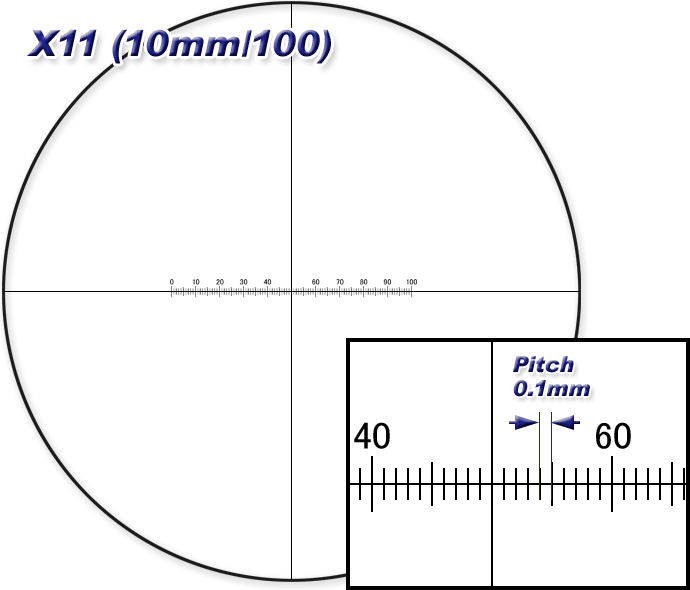

X11
10 mm / 100 divisions
Pitch 0.1 mm

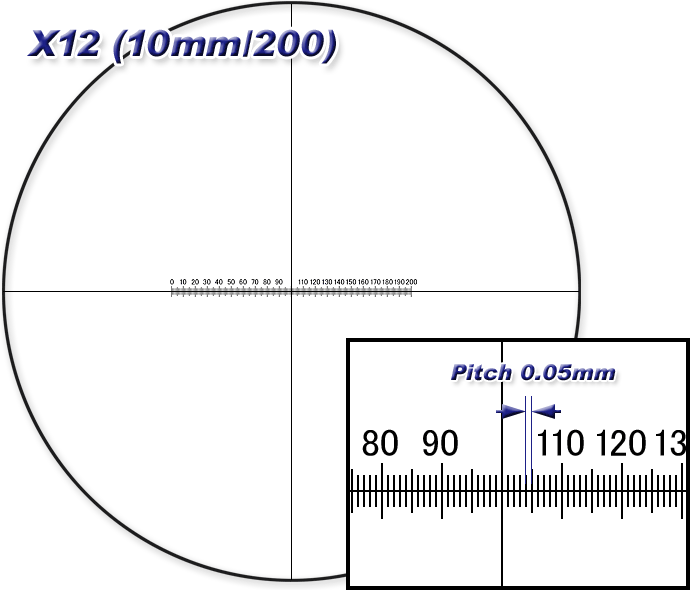

X12
10 mm / 200 divisions
Pitch 0.05 mm
X22
20 mm / 200 divisions
Pitch 0.1 mm
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| X11 | Model | X1119 | X11204 | X1121 | X1124 | X1125 | X1127 |
| Price | US$ 81 | US$ 81 | US$ 81 | US$ 88 | US$ 92 | US$ 99 | |
| X12 | Model | X1219 | - | X1221 | X1224 | X1225 | X1227 |
| Price | US$ 92 | - | US$ 92 | US$ 99 | US$ 104 | US$ 110 | |
| X22 | Model | X2219 | X22204 | X2221 | X2224 | X2225 | X2227 |
| Price | US$ 126 | US$ 126 | US$ 126 | US$ 137 | US$ 144 | US$ 149 |
Ocular Micrometer - Cross XY Series

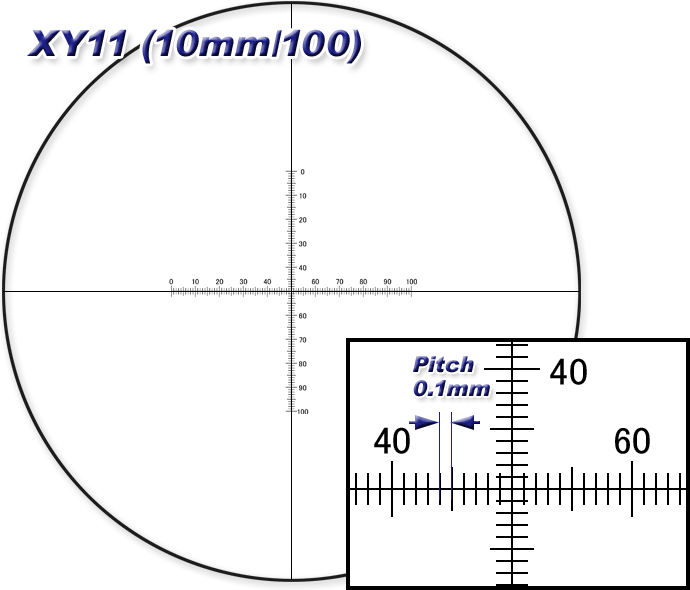

XY11
10 mm / 100 divisions
Pitch 0.1 mm

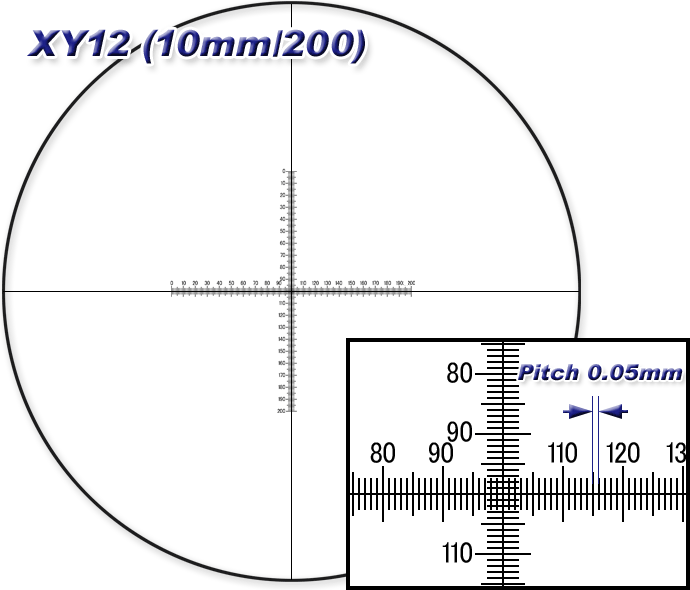

XY12
10 mm / 200 divisions
Pitch 0.05 mm

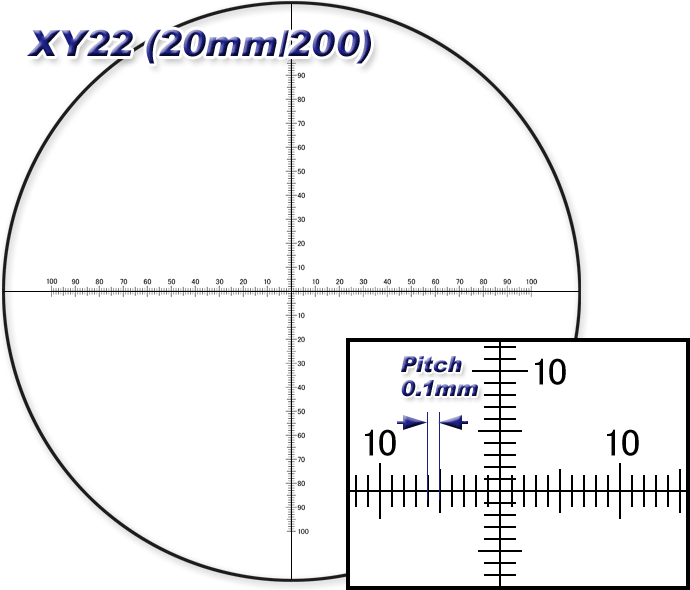

XY22
20 mm / 200 divisions
Pitch 0.1 mm
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| XY11 | Model | XY1119 | XY11204 | XY1121 | XY1124 | XY1125 | XY1127 |
| Price | US$ 92 | US$ 92 | US$ 92 | US$ 99 | US$ 99 | US$ 104 | |
| XY12 | Model | XY1219 | XY12204 | XY1221 | XY1224 | XY1225 | XY1227 |
| Price | US$ 115 | US$ 115 | US$ 115 | US$ 121 | US$ 121 | US$ 126 | |
| XY22 | Model | - | - | XY2221 | XY2224 | XY2225 | XY2227 |
| Price | - | - | US$ 115 | US$ 121 | US$ 121 | US$ 126 |
Ocular Micrometer - Grid Series

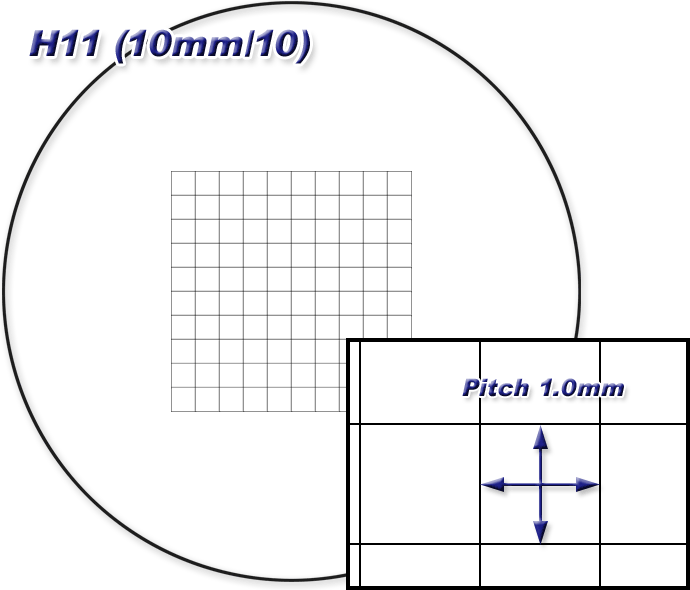

H11
10mm / 10 div
pitch 1mm

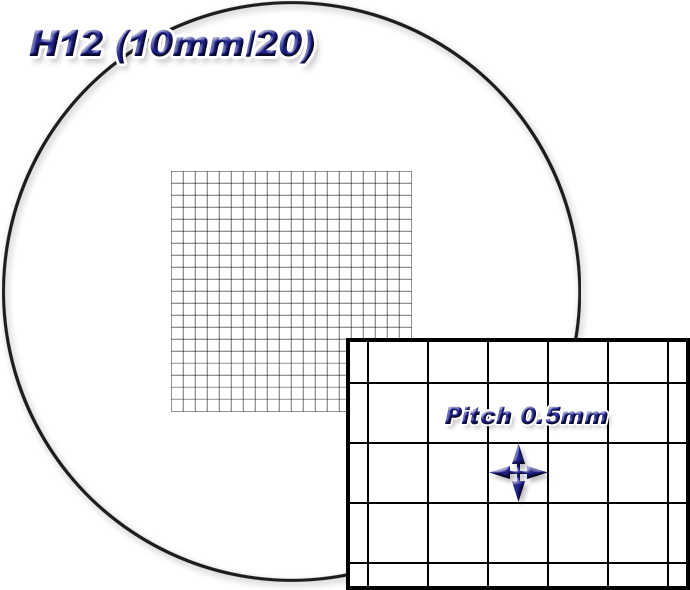

H12
10mm / 20 div
pitch 0.5mm
H15
10mm / 5 div
pitch 2mm
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| H11 | Model | H1119 | H11204 | H1121 | H1124 | H1125 | H1127 |
| Price | US$ 81 | US$ 81 | US$ 81 | US$ 88 | US$ 88 | US$ 92 | |
| H12 | Model | H1219 | H12204 | H1221 | H1224 | H1225 | H1227 |
| Price | US$ 81 | US$ 81 | US$ 81 | US$ 88 | US$ 88 | US$ 92 | |
| H15 | Model | - | - | - | - | H1525 | H1527 |
| Price | - | - | - | - | US$ 129 | US$ 129 |
Ocular Micrometer - Full / XY Grid Series
HA1
Full grid
Pitch 1.0 mm

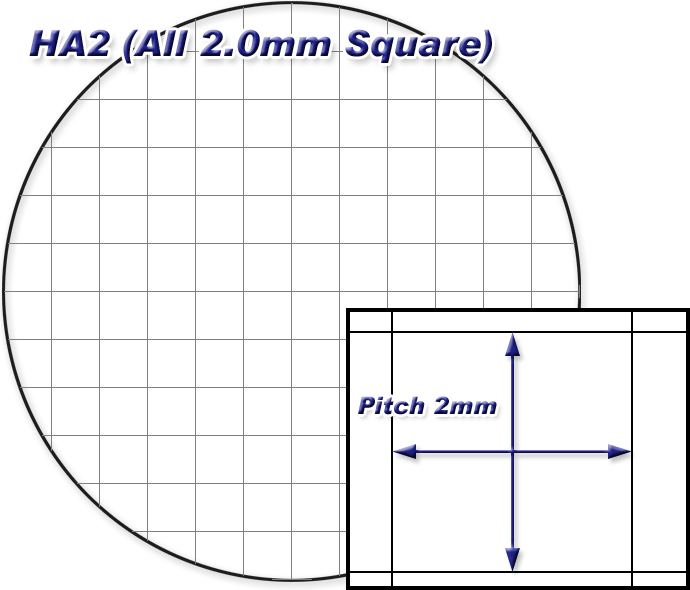

HA2
Full grid
Pitch 2.0 mm

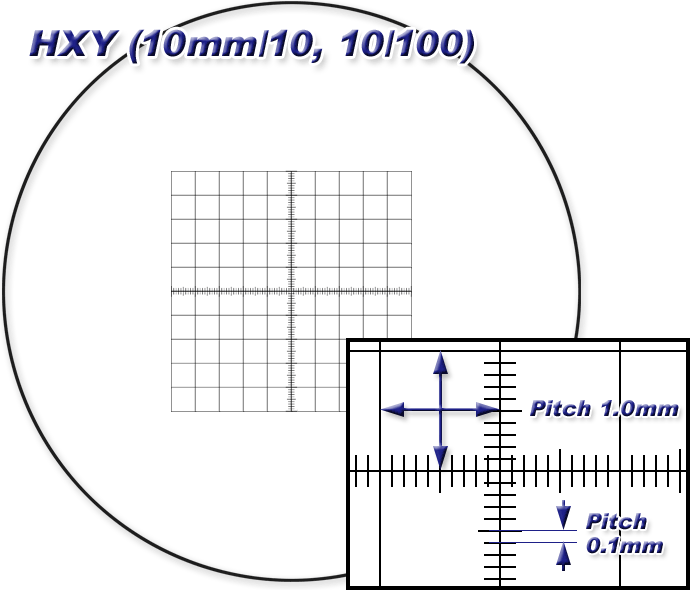

HXY
Grid: 10 mm
10 div / Pitch: 1 mm
Scale: 10 mm
100 div / Pitch: 0.1 mm
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| HA1 | Model | - | - | HA121 | HA124 | HA125 | HA127 |
| Price | - | - | US$ 137 | US$ 137 | US$ 137 | US$ 137 | |
| HA2 | Model | - | - | - | HA224 | - | HA227 |
| Price | - | - | - | US$ 137 | - | US$ 137 | |
| HA5 | Model | - | - | - | - | - | HA527 |
| Price | - | - | - | - | - | US$ 137 | |
| HXY | Model | - | - | HXY1121 | - | HXY1125 | HXY1127 |
| Price | - | - | US$ 137 | - | US$ 137 | US$ 137 |
Ocular Micrometer - Miller Reticle Series
MR124
Miller reticle
12 : 4 pattern
MR93
Miller reticle
9 : 3 pattern
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| MR124 | Model | - | - | - | MR12424 | MR12425 | MR12427 |
| Price | - | - | - | US$ 137 | US$ 137 | US$ 132 | |
| MR93 | Model | - | - | - | MR9324 | - | MR9327 |
| Price | - | - | - | US$ 133 | - | US$ 137 |
SSC / Cross Line / Grain Scale Series

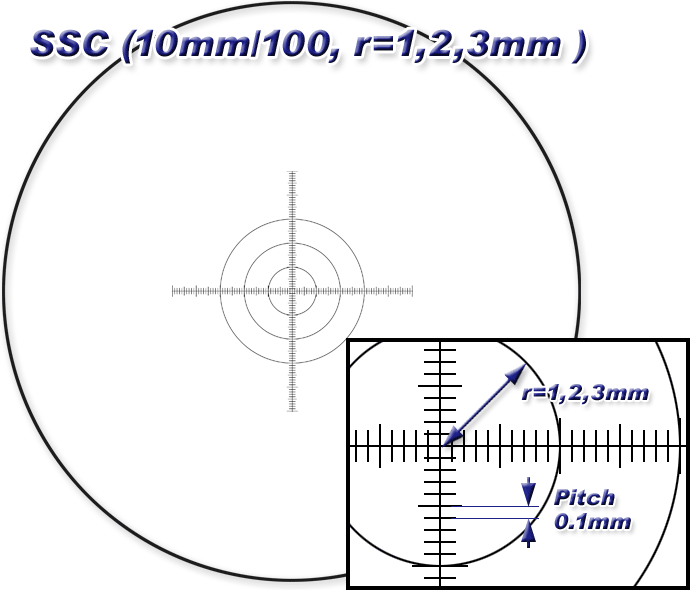

SSC
Concentric circles
Special observation use
Cross Line CL90
Simple cross line
Positioning reference
Grain GR27
Grain scale
Particle comparison
| Series | 19φ | 20.4φ | 21φ | 24φ | 25φ | 27φ | |
|---|---|---|---|---|---|---|---|
| SSC | Model | SSC1119 | - | - | - | - | SSC1127 |
| Price | US$ 149 | - | - | - | - | US$ 156 | |
| CL90 | Model | CL9019 | CL90204 | CL9021 | CL9024 | CL9025 | CL9027 |
| Price | US$ 71 | US$ 71 | US$ 71 | US$ 76 | US$ 76 | US$ 81 | |
| GR27 | Model | GR19 | GR204 | GR21 | GR24 | GR25 | GR27 |
| Price | US$ 126 | US$ 126 | US$ 126 | US$ 133 | US$ 133 | US$ 137 |
Special Purpose Eyepiece Reticles & Micrometers
NSB
Designs are subject to change without notice for improvement.
YSK
Designs are subject to change without notice for improvement.
| Series | 20.4φ | 24φ | 27φ | |
|---|---|---|---|---|
| NSB | Model | NSB204 | NSB24 | - |
| Price | US$ 246 | US$ 246 | - | |
| YSK | Model | - | - | YSK27 |
| Price | - | - | US$ 336 |
Precision reticles for specialized microscopic analysis and measurement.

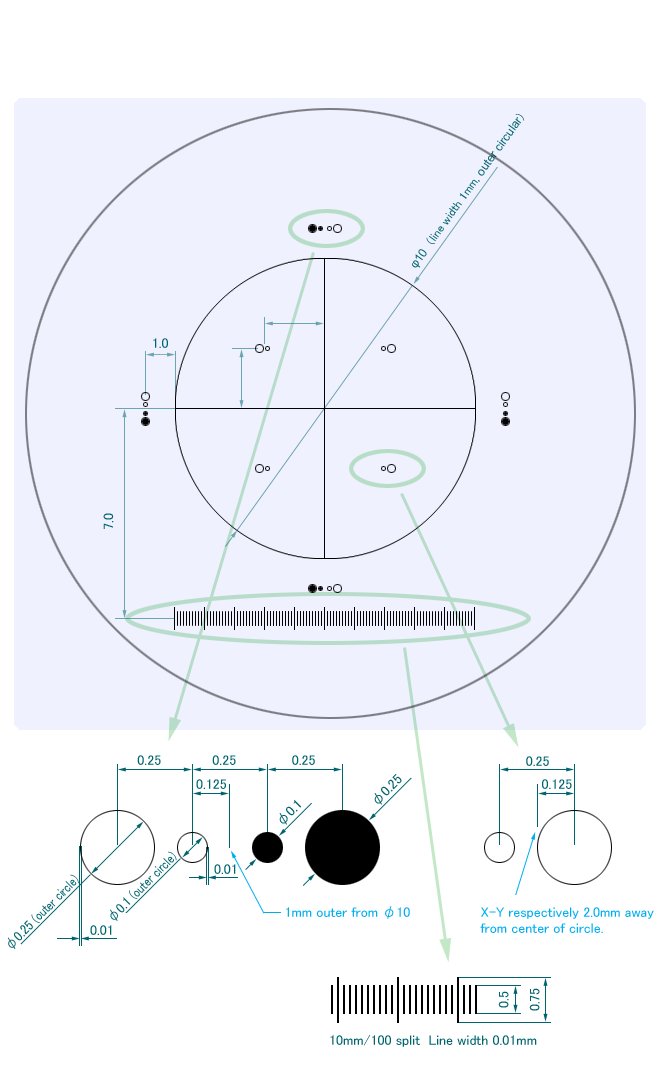

NSB is a special-purpose ocular micrometer designed for insoluble particulate matter testing in injections. It is used for microscopic observation and particle measurement in pharmaceutical particulate contamination inspection applications.
YSK is a special-purpose eyepiece graticule designed for asbestos analysis. It is used for asbestos fiber observation and counting under a microscope in asbestos inspection and analytical applications.
Micrometer for Microscope Digital Camera Adapter
S11-CF
Scale: 10mm / 100 divisions
Pitch: 0.1mm / φ21mm

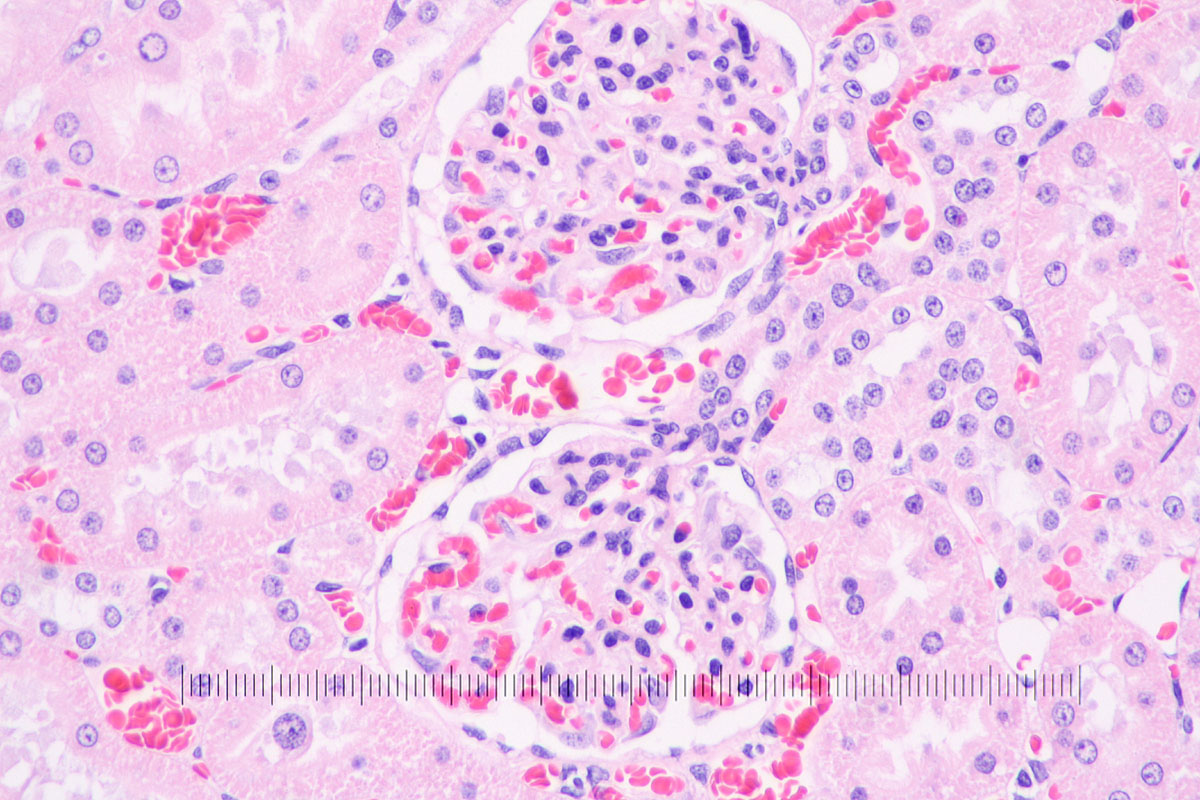

Sample Image
Scale positioned near the image edge
for clearer specimen visibility
| Series | 21φ | |
|---|---|---|
| S11-CF | Model | S11-CF |
| Price | US$ 113 |
The center of the microscope image remains unobstructed, providing a cleaner and easier-to-view captured image.
Standard ocular micrometers usually place the scale and numbers near the center of the field of view. S11-CF shifts the scale toward the edge of the image and omits unnecessary numbering, making it more suitable for digital camera and smartphone microscope photography workflows.
The scale pattern remains visible while minimizing obstruction of important specimen details in the center area.
Need Help Selecting?
Please provide the microscope model, eyepiece model number, desired reticle pattern and known compatible diameter. We can help narrow down suitable ocular micrometer options based on the eyepiece and measurement workflow.
