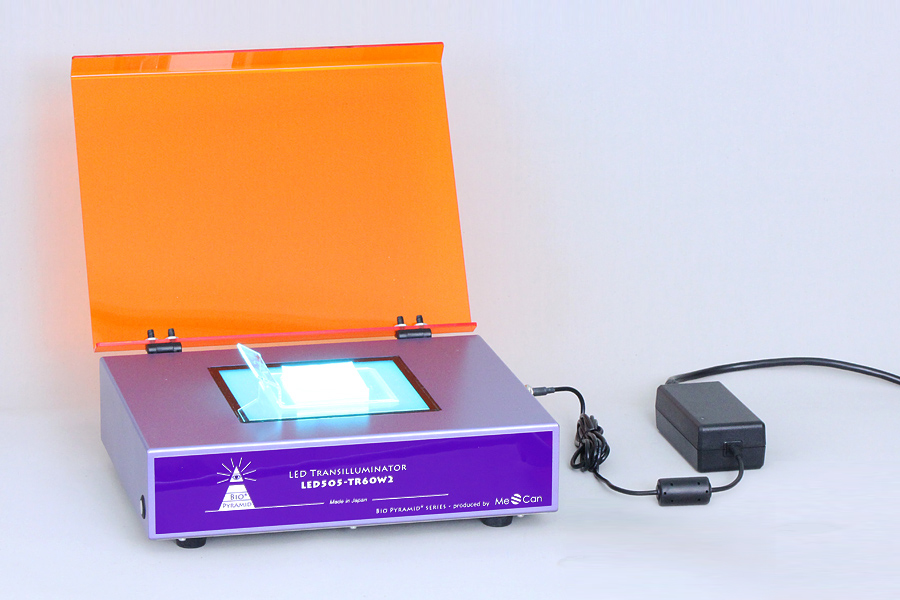

| High-Power (60W Class) LED Transilluminator for Gel Ducumentation & Gel Cutting |
 |
Applicable for reagent with Excitation wavelength of 485-510nm EtBr, DsRed®, AlexaFluor532®, Flamingo®, Gel Green®, Gel Red®, SYPRO Red®, YFP, etc. |
| Feature |
 |
■ ■ ■ |
Super High Power (60W Class) 5 times brighter than conventional products (at high power mode) and can easily detect even weak bands. LED (505nm) is a safer alternative to UV, generate less heat, and prevent specimen damage. It is also environmentally friendly with an ultra-long life. Direct lighting system with 25 LED chips. Built-in diffuser plate ensures almost no lighting irregularity. |
| Compound Dichroic Filter Our newly developed Compound Dichroic Filter eliminate unwanted background image noise, which is often a problem with the direct lighting method, down to a minimum by cutting off the long-wavelength side of the light. Enables observation of even faint bands with a sharp image. |
|
|
Auto-Off feature Have you ever dried out a gel during the gel analysis because you forgot to turn off the transilluminator ? LED470-TR60W protects gels with an auto-off function (20 minutes). Continuous operation is also possible by deactivating the auto-off. (*Auto-off is set at the time of shipment.) |
| Luminous surface size : 120 x 130 mm A 120 x 130 mm size luminous surface allows four mini-gels simultaneous observation. Direct lighting and diffuser plates ensure no light irregularities. Furthermore, the chemically tempered glass is resistant to breakage, allowing for safe cutting operations. Observation filter cover and Goggles A filter cover that cuts off below 560nm and a special goggle are also included as standard accessories. |
 |
 |
Removable filter cover with Open/Close Torque The Sharp-cut filter cover is easily removable with an Open/Close hinge and torque control, making it super convenient for gel documentation. The hardness of the opening/closing can be adjusted with a plus screwdriver. |
 |

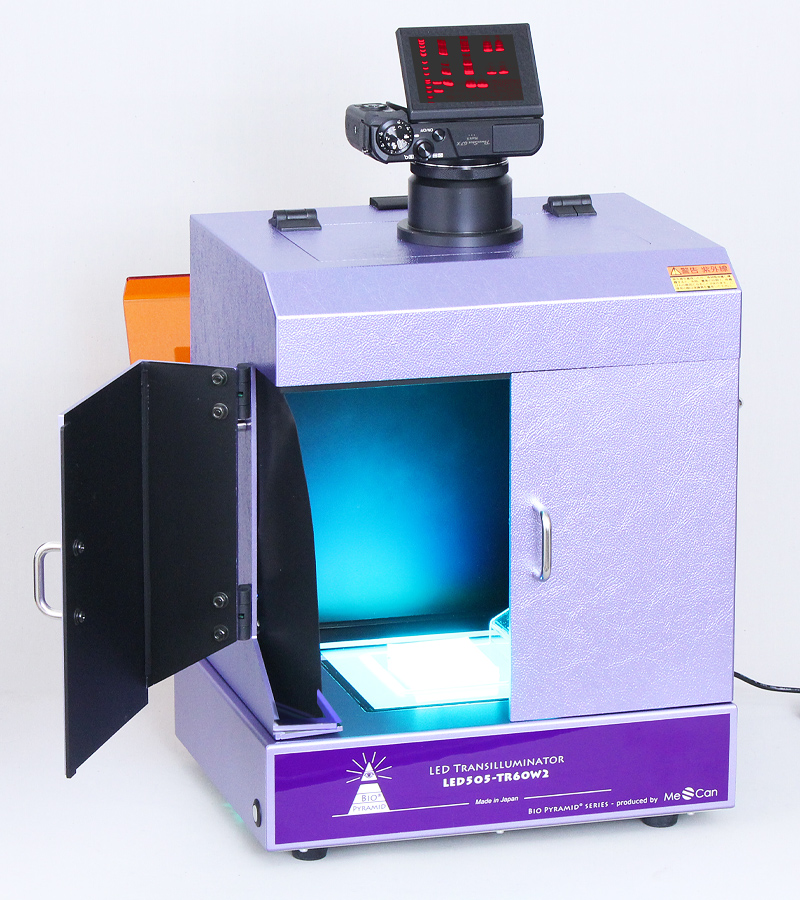

Perfect match for Pict LaBox ! Match the size of Pict LaBox that allows observation, gel-cutting, and capturing of electrophoresis gel bands in a single unit, and allow for a low-cost, complete gel documentation system. |
||

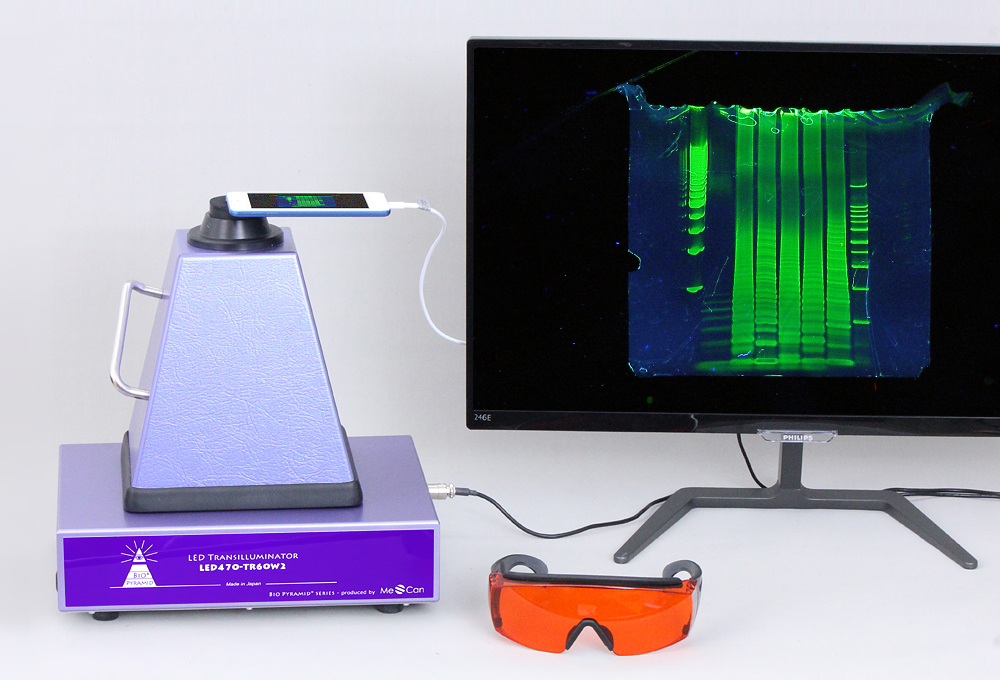

| Ideal for MBP-Mini too A compact gel doc system is ideal for mini-gel and captures high-quality gel doc images. |
 |
||
| LED505 or LED470 ? |  |
| Set Composition & Price |
 |
|
| Product | Item Code | Price |
| LED Transilluminator (505nm) | LED505-TR60W | US$ 1,200 |
|
|
|
||||||||
 |
| Specification |
| LED505-TR60W | |
| Peak wavelength | 505 nm |
| Filter size | 130 x 120 mm |
| LED | High-Power chip LED x 25 (lined up with evenly spaced) |
| Illumination method | Direct radiation from below (Transilluminator) |
| Surface Filter | Compound dichroic filter. Metallic multi-layered, deposition and anti-fluorescence reflective processed |
| Feature | 1. Press and hold switch for 1.5x power (30 sec) 2. Auto-off (20min) |
| Observation Cover filter | Cast acrylic, orange cover, cuts off 560nm or below |
| Compatible fluorescent reagents |
Applicable for reagent with Excitation wavelength of 485-510 nm EtBr, DsRed®, AlexaFluor532®, Flamingo®, Gel Green®, Gel Red®, SYPRO Red®, YFP etc. |
| Power supply (AC adapter) | Input: 100 - 240V, 50-60Hz universal Output:：24V 2.7A (65W) PSE / UL / CE approved. |
| Power consumption | Normal setting = 39W / High power setting 58.5W |
| Lamp life | 40,000 hours (estimated calculation time) |
| Cooling | Micro fan, Forced-air cooling system |
| Accessories | AC-DC adapter |
| Body size / weight | W290mm x D230mm x H81mm (with filter cover = H99mm) / 1.8kg |

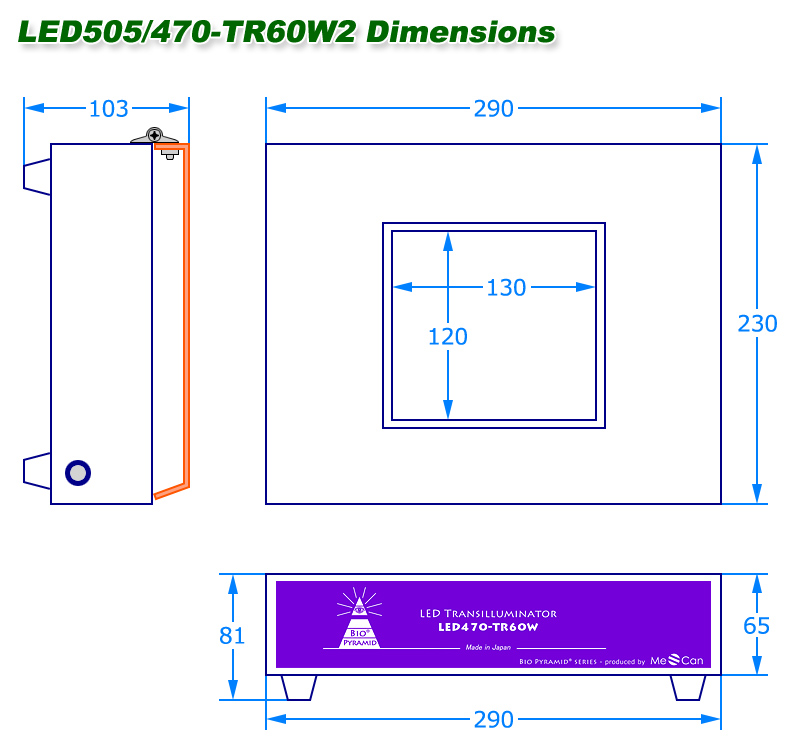

| Size & Dimention |  |

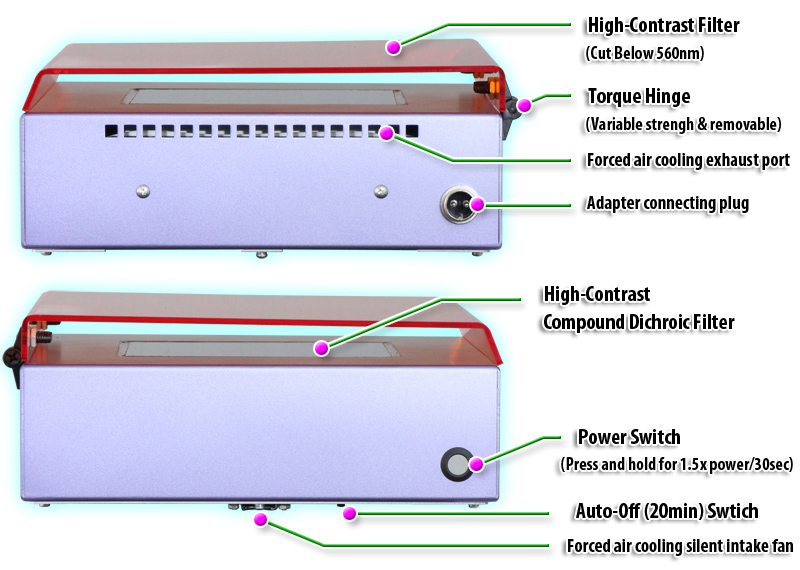

| Part Names & Functions |  |
 |
 |
