High Power LED Transmitted Light - LED505/470-TR8W

High Power LED Transmitted Light
- LED505 / LED470-TR8W

Blue 470 nm and cyan 505 nm transmitted fluorescence excitation for stereo microscope observation

LED505-TR8W and LED470-TR8W are compact, high-power transmitted LED light sources designed for fluorescence excitation from directly beneath the microscope stage. The system combines strong excitation output, front dimming control and a dichroic-filter-based optical design to help reduce unwanted background glow during fluorescence observation and imaging.

470 nm Blue 505 nm Cyan Transmitted Excitation Dimmer Control Stereo Microscope Use
Features Price Filter Holder Set Options Specifications

Compact transmitted LED excitation

High power LED transmitted light for fluorescence excitation microscopy
  • Direct LED emission from beneath the microscope stage.
  • Available in 470 nm blue and 505 nm cyan excitation models.
  • Useful for fluorescent gels, stained samples and stereo microscope fluorescence workflows.
  • Front dimming control supports brightness adjustment for observation and image capture.
Model selection note Select 470 nm or 505 nm according to the excitation range of the fluorescent reagent or sample. A suitable emission filter is typically required for observation.

Features

Blue 470 nm and cyan 505 nm LED transmitted light

High-power excitation from below

The LED is positioned close to the sample and emits excitation light directly upward from beneath the stage.

Dichroic filter performance for fluorescence observation

Reduced background glow

A multilayer dichroic filter helps sharply control residual wavelengths at the longer-wavelength side, improving the separation between excitation light and weak fluorescence signals.

High contrast fluorescence observation with transmitted LED light

High-contrast fluorescence viewing

Strong excitation and background suppression help make fluorescent bands or stained regions easier to observe and capture, especially when used with the appropriate emission filter and camera settings.

LED transmitted light features and system design

Practical microscope-stage design

The die-cast aluminum body and heat-sink structure support stable operation. The included fixing stage plate, compact body and front dimmer make the system easy to use on many stereo microscope stages.

LED505 or LED470? The best wavelength depends on the excitation profile of the reagent. For gel dyes and fluorescent samples, confirm the recommended excitation wavelength and emission filter before selecting the model.
See Filter / Reagent Guide

Price

Product Item Code Price
Super High-Power LED Transmitted Light, Cyan 505 nm LED505-TR8W US$ 580
Super High-Power LED Transmitted Light, Blue 470 nm LED470-TR8W US$ 580
LED TR8W package contents
  1. LED Transmitted Light Body (w/ dichroic filter)
  2. AC-DC adapter 100V–240V universal – 12V 1.5A 18W
  3. 90-degree conversion plug
  4. Fixing stage plate —
    select one from ø90 / 95 / 100 mm
    (Nikon = ø90  /  Olympus = ø100  /  YS series = ø95)

Recommended Filter Holder Set

For fluorescence observation with a stereo microscope, the transmitted excitation light should be combined with a suitable emission filter. The microscope filter holder keeps the emission filter in the optical path above the objective side, helping separate fluorescence from excitation light.

MFH-FL microscope filter holder

MFH-FL Filter Holder

LFH-FL laboratory filter holder

LFH-FL Filter Holder

Set Code Price System Composition
LED505-TR8W US$ 580 LED505-TR8W
LED505TR8-MFH US$ 752 LED505-TR8W MFH-FL
LED505TR8-LFH56 US$ 639 LED505-TR8W LFH-FL
LED470-TR8W US$ 580 LED470-TR8W
LED470TR8-MFH US$ 752 LED470-TR8W MFH-FL
LED470TR8-LFH56 US$ 639 LED470-TR8W LFH-FL
Product Code LED505-TR8W
LED470-TR8W		 MFH-FL LFH-FH56
Price US$ 580 US$ 172 US$ 59

Options

Item Price Image Description
YG-SC57 US$ 57 YG-SC57 gel cut goggle Gel Cut Goggle
Cut below 570 nm. Suitable for blue / green excitation. Designed to provide high-contrast observation and can be worn over glasses.
MF-SC55D US$ 200 MF-SC55D dichroic filter Dichroic Filter
Cuts wavelengths below 550 nm and transmits fluorescence more efficiently than standard SC filters. Enables high-contrast observation and image capture of weak fluorescent bands.
MF-SC60A US$ 59 MF-SC60A sharp-cut filter SC60 Sharp-Cut Filter
For observation of EtBr, GelRed, SYPRO Red, DsRed and similar longer-wavelength fluorescent samples.
MF-SC56A US$ 28 MF-SC56A sharp-cut filter SC56 Sharp-Cut Filter
For SYBR Green, SYPRO Orange, GFP and similar fluorescent samples with blue 470 nm LED excitation.
YS05T US$ 1,580 YS05T stereo zoom microscope C-mount Stereo Zoom Microscope
Trinocular stereo zoom microscope compatible with digital and USB cameras for fluorescence observation, documentation and inspection.

Specifications

Model LED505-TR8W LED470-TR8W
Wavelength 505 nm cyan 470 nm blue

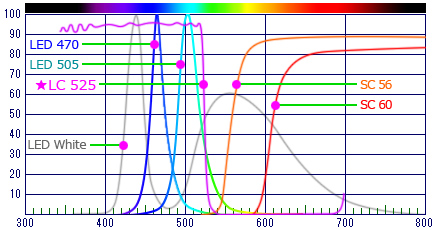

Spectral characteristics Spectral characteristics of LED470 and LED505 with dichroic filters
Radiation method Direct emission from LED set straight beneath the microscope stage.
Filter Multilayered vapor deposition dichroic filter with anti-fluorescence reflective processing.
Compatible reagents / samples Examples: EtBr, GelRed, SYBR Green, SYBR Gold, SYPRO Ruby, SYPRO Orange, FITC, GFP and related samples with excitation around 485–510 nm. Examples: SYBR Green, SYBR Gold, SYBR Safe, SYPRO Orange, SYPRO Ruby and related samples with excitation around 450–490 nm.
Control On / off switch and front dimmer control.
Power AC-DC adapter Input: 100–240 V, 50–60 Hz universal.
Output: DC 12 V, 1.5 A, 18 W. PSE / UL / CE approved.
Power consumption 8.1 W at maximum output, variable volume control.
LED life expectancy 40,000 hours.
Cooling system High-efficiency heat-sink structure
and die-cast aluminum casing.
Accessories 90-degree conversion plug, AC-DC adapter
and fixing stage plate.
Body size / weight W130 x D130 x H30 mm, approximately 500 g.
Fixing plate and accessories excluded.
Fluorescence performance depends on the sample, reagent, emission filter, microscope optics and camera settings. Please contact us when you need help selecting the LED wavelength and filter combination.
📬 Inquiry 🛒 Order
