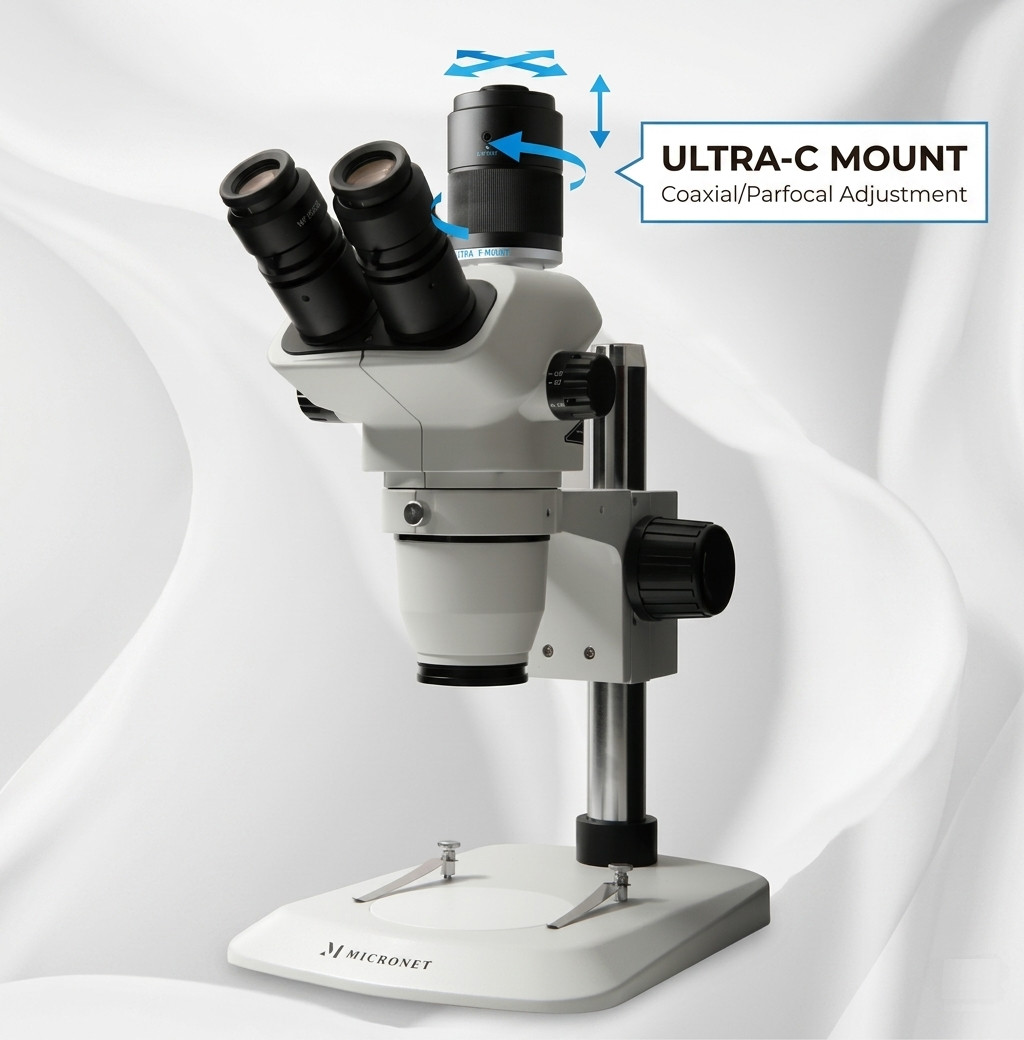

C-Mount Stereo Zoom Microscope - YS05T
C-Mount stereo zoom with simultaneous eyepiece and camera observation
YS05T is a budget-friendly trinocular stereo zoom microscope for industrial inspection, R&D, education and digital documentation. It provides a standard total magnification range of 6.7x to 45x, a long 110 mm working distance and a C-mount trinocular port designed for camera connection.
The simultaneous 3-way observation system allows eyepiece viewing and camera imaging at the same time, making it useful for live monitor display, classroom demonstrations, remote discussion and image capture workflows.
- C-Mount Trinocular
- 6.7x-45x Zoom
- WD 110 mm
- Simultaneous Viewing
- Inspection / R&D
YS05T — Price
| Product | Item Code | Price |
|---|---|---|
| C-Mount Stereo Zoom Microscope | YS05T | US$ 1,580 |
Optional Items
| Product | Item Code | Price |
|---|---|---|
| Eyepiece Lens 20x Pair, F.N. 12, diopter adjustable | IP-x20 | US$ 120 |
| Auxiliary Objective 2.0x, WD 26 mm | OB-x2 | US$ 60 |
| Auxiliary Objective 0.5x, WD 177 mm | OB-x0.5 | US$ 60 |
System Composition and Price
| Set Code | Price | System Composition | |||
|---|---|---|---|---|---|
| YS05T | US$ 1,580 |  | |||
| YS05T-Simple5 | US$ 1,726 | |  | ||
| YS05T-NYSL2-WE | US$ 3,276 | | |  | |
| YS05T-SD4 | US$ 1,970 | |  | ||
| YS05T-NYSL2-SD4 | US$ 3,520 | | | | |
| Product Code | YS05T | Simple-5 | SDA-W4 | NY1S-EOSSL3 | |
| Price | US$ 1,580 | US$ 146 | US$ 390 | US$ 1,550 | |
Stereo Observation and Digital Imaging in One System
- Wide standard magnification range from 6.7x to 45x.
- Long 110 mm working distance for sample handling and tool access.
- Diopter adjustment supports left/right eye differences.
- C-mount trinocular port for compatible camera systems.
- Simultaneous eyepiece observation and camera imaging without switching the optical path.
- Useful for live monitor display, documentation, education and inspection records.
- Optional eyepieces, auxiliary objective lenses, cameras and LED lighting expand the system.
YS05T — Key Features
Simultaneous 3-Way Field of View
The optical path supports simultaneous eyepiece observation and camera output. This is useful when an operator needs to observe through the eyepieces while also sharing or recording the microscope image.

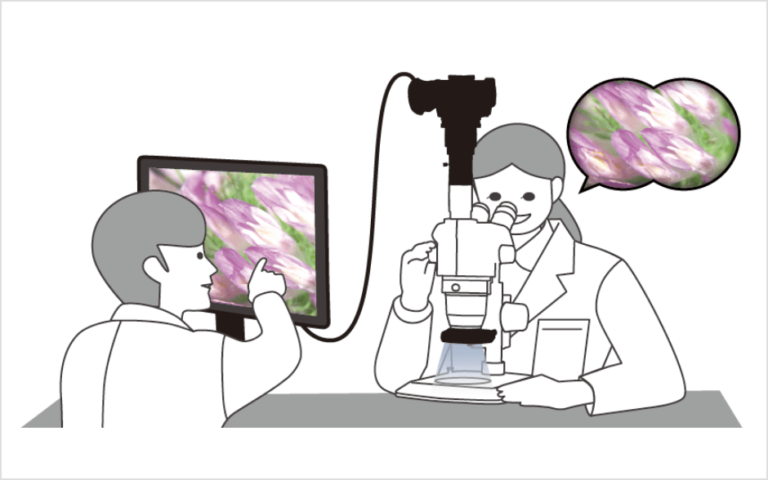

C-Mount Camera Expandability
The trinocular C-mount port allows connection to a wide range of C-mount cameras and camera adapter systems. Suitable for live monitor display, image capture, reporting and remote observation workflows.

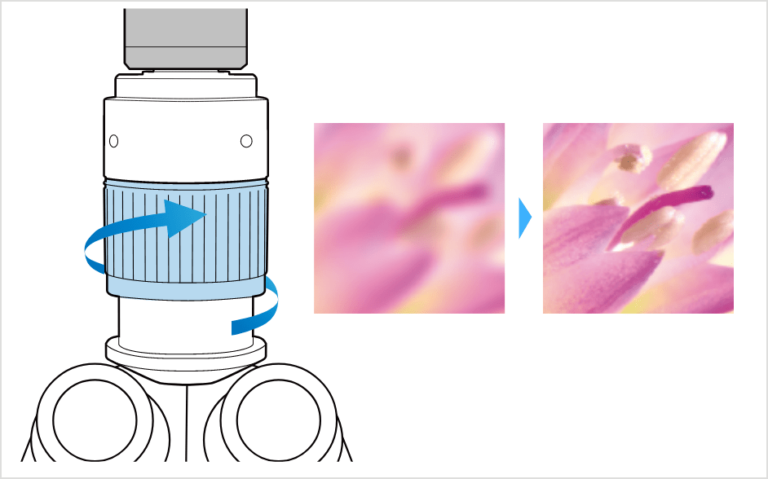

Ultra C-Mount Feature ①
Aligning focus between eyepiece and monitor
When you focus through the eyepiece, the monitor image is still out of focus. With the Ultra C-Mount, both can be adjusted to always match.

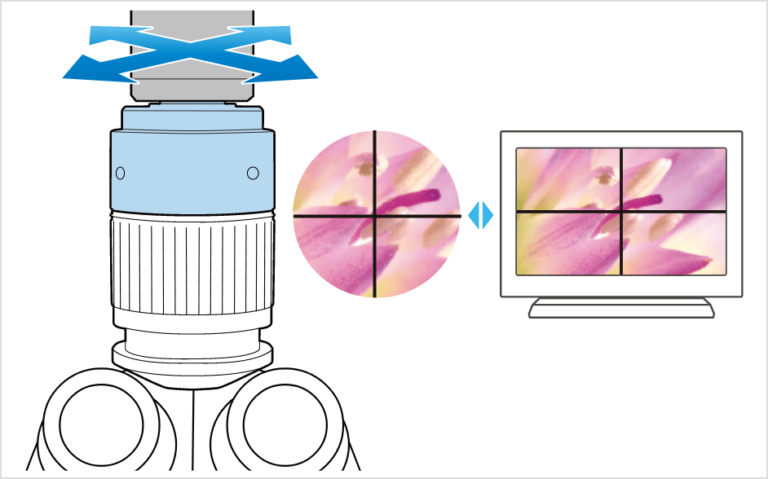

Ultra C-Mount Feature ②
Aligning center between eyepiece and monitor
You centered the subject through the eyepiece, but it appears off-center on the monitor. With the Ultra C-Mount, both centers can be adjusted to always match.
YS05T — Optional Items
Camera Systems
C-mount Camera
Camera connection options are available. Field of view and compatibility depend on the camera sensor and adapter configuration. Please contact us before ordering.
LED Light Systems
System Expandability
YS05T can be combined with optional eyepieces, auxiliary objective lenses, digital camera systems and microscope LED lighting. The system can be configured for simple visual observation, live monitor display or image capture.
