Bio-Pyramid MBP-03
Smartphone Gel Documentation System

for DNA, RNA and Agarose Gel Imaging.
Compact smartphone gel imaging solution for routine laboratory use

Bio-Pyramid MBP-03 is a compact gel documentation system designed for visualizing and photographing DNA, RNA and agarose gels using a smartphone.

Used with suitable UV or LED transilluminators, it supports fluorescence imaging workflows for common stains such as EtBr, SYBR Green, GelRed and GelGreen.

The universal smartphone adapter allows easy setup with many smartphone models, making MBP-03 suitable for teaching labs, routine documentation and compact research environments.

Smartphone DNA / RNA Agarose Gel UV / LED Transilluminator Compact Gel Imaging

Price Features Options Specification FAQ

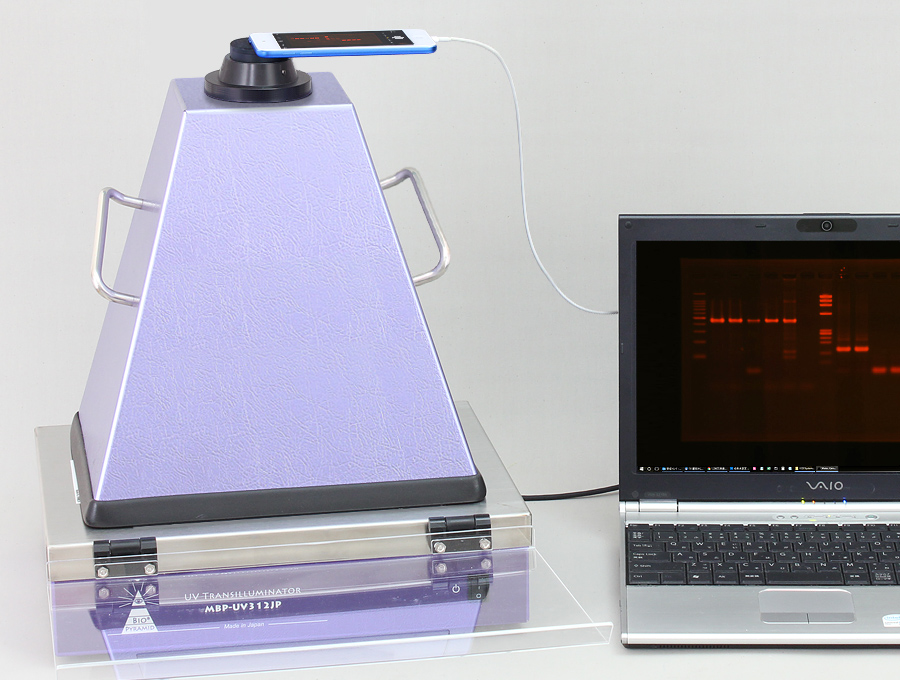

Bio-Pyramid MBP-03 smartphone gel documentation system

Smartphone Gel Imaging Made Simple

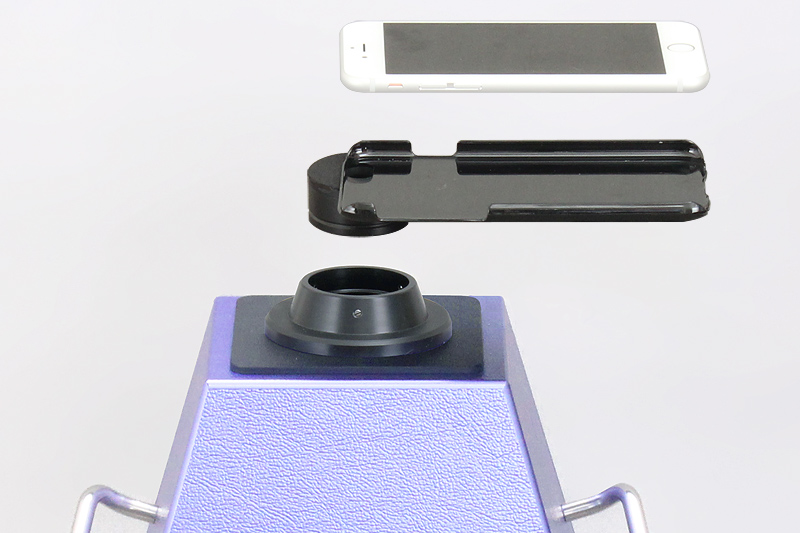

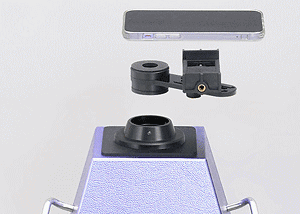

Universal Smartphone Adapter

Compatible with many smartphones.
Width adjustment range: 5.7 cm - 10.5 cm.

Capture gel images using a high-resolution smartphone camera.
Simple setup with no dedicated digital camera required.
Suitable for DNA, RNA and agarose gel documentation.
Use with compatible UV or LED transilluminators depending on the stain.
Real-time display and sharing are possible via smartphone connection features.
Compact design for teaching labs, routine imaging and small research spaces.

Recommended Applications

Routine Gel Documentation

Designed for everyday gel imaging where a compact and simple documentation setup is preferred.

Education and Training

Smartphone-based operation makes it easy to display, explain and share gel images in teaching laboratories.

PCR-Related Workflows

Useful for documenting agarose gels in PCR-related confirmation and routine molecular biology workflows.

Compact Lab Setup

The small footprint helps laboratories that need flexible imaging without a large dedicated imaging station.

Set Composition & Price

Bio-Pyramid MBP-03 smartphone system composition

Set Code	Price	System Composition
MBP03S-USA	US$ 570
MBP03S-USA -UV312	US$ 1,940
MBP03S-USA -505/470DF	US$ 1,520
	Product Code	MBP-03S	MBP-USA	MBP-UV312	LED505-DF36W LED470-DF36W
	Price	US$ 460	US$ 110	US$ 1,370	US$ 950

Optional Equipment

UV Transilluminator

UV excitation light source for compatible gel stains and UV fluorescence workflows.

Details

LED Transilluminator

LED excitation light source for compatible fluorescence stains and safer visible-light workflows.

Details

Optional Items

Additional helpful accessories for gel documentation, filters and workflow setup.

Option Page

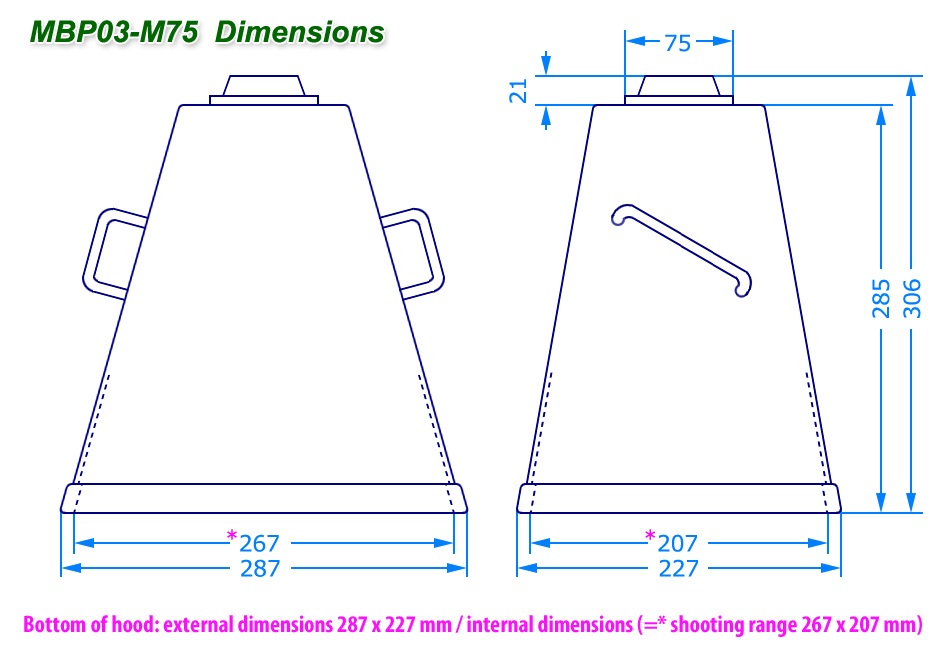

Specification

Maximum Shooting Area	267 x 207 mm Internal dimensions of the bottom of the box.
Shooting Distance	To the tip of the lens: approx. 292mm Please use a camera that can focus within this shooting distance.
Compatible Filter Size	Glass filter: 52 mm diameter
Material	Hood: ABS resin Ground contact area: Rubber
Standard Accessory	Built-in 52 mm diameter connecting sleeve MF-SC56A filter
Size	Width 287 mm x Depth 227 mm Height 306 mm Body height: 285 mm / Camera mount height: 21 mm
Weight	Approx. 1 kg
Adapter Width Range	5.7 cm - 10.5 cm
System Use	Smartphone gel imaging with suitable UV or LED transilluminators.

FAQ

What is the Bio-Pyramid MBP-03 Smartphone system?

The Bio-Pyramid MBP-03 smartphone system is a compact smartphone gel documentation system for photographing DNA, RNA and agarose gels.

Can MBP-03 be used with different smartphones?

Yes. The universal smartphone adapter supports many smartphones with an adjustable width range of 5.7 cm to 10.5 cm.

Can it be used with UV and LED transilluminators?

Yes. MBP-03 can be used with suitable UV or LED transilluminators depending on the fluorescence stain and wavelength requirements.

What stains can be used?

It can be used for common gel imaging workflows such as EtBr, SYBR Green, GelRed and GelGreen when the appropriate excitation light source and filter conditions are selected.
