Pict LaBox Digital Camera Gel Documentation System
for DNA, RNA and Agarose Gel Imaging.
Compact gel imaging and cutting solution for everyday laboratory use
Pict LaBox is a compact gel documentation hood designed for visualizing, photographing and cutting DNA, RNA and agarose gels using a digital camera.
It enables clear gel imaging without a darkroom and works directly with suitable UV or LED transilluminators. The system is designed for teaching laboratories, small research labs and practical gel cutting workflows.
Compatible with a wide range of fluorescence stains such as EtBr, SYBR Green, GelRed and GelGreen.
- DNA / RNA
- Agarose Gel
- Gel Imaging / Cutting
- Digital Camera
- UV / LED Transilluminator
Choose from Two Digital Camera Setups

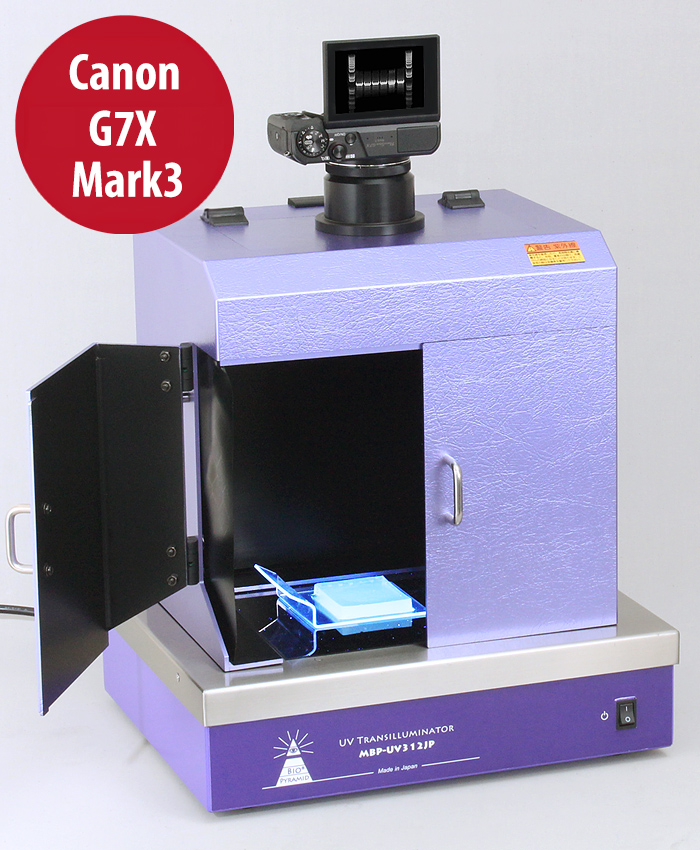

Canon G7X Mark III Set
High-sensitivity camera setup
For higher imaging sensitivity. The 1-inch sensor and bright lens help capture faint DNA bands, with an adjustable monitor for easy viewing during setup.

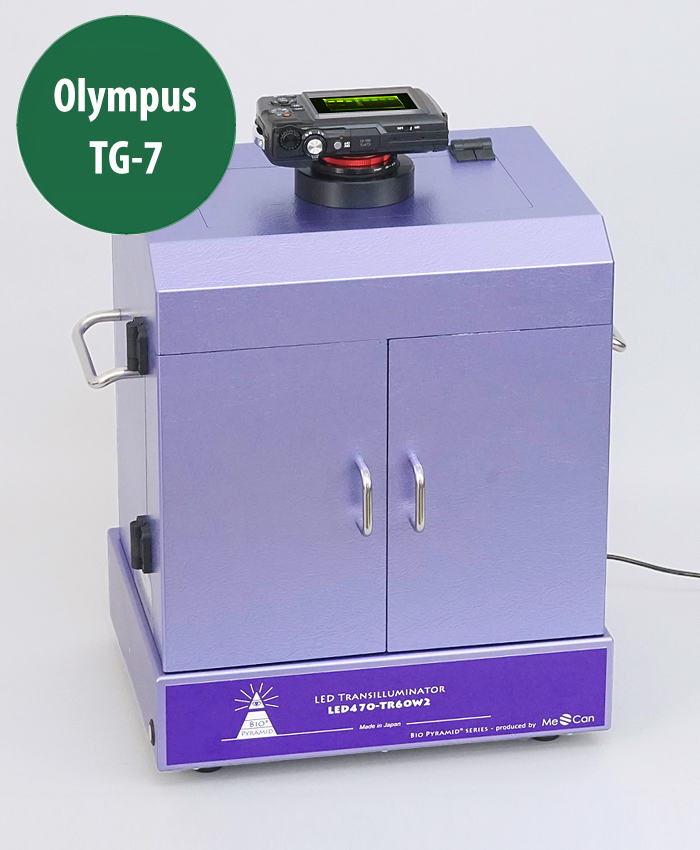

Olympus TG-7 Set
Simple and rugged camera setup
For a simple, affordable and rugged imaging workflow. The TG-7 is waterproof, dustproof and shockproof, suitable for routine laboratory use.
Complete Gel Imaging & Cutting Workflow
- Visualize, capture and cut DNA gels in one compact workflow.
- Use directly with suitable UV or LED transilluminators.
- Operate under normal laboratory lighting conditions.
- Compact, lightweight and easy to set up anywhere.
- Wide viewing window supports accurate gel cutting.
- Built-in observation and photography filters.
- Canon G7X Mark III set for higher imaging sensitivity.
- Olympus TG-7 set for a simple, rugged and affordable workflow.
Canon G7X Mark III System - Set Composition & Price
| Set Code | Price | System Composition | |||
|---|---|---|---|---|---|
| PLBX-G | US$ 860 |  | |||
| PLBXG-G7XM3 | US$ 2,140 | |  | ||
| PLBXG-G7XM3 -UV312 | US$ 3,510 | | |  | |
| PLBXG-G7XM3 -LED505/470DF | US$ 3,090 | | |  | |
| Product Code | PLBX-G | G7XM3-SET | MBP-UV312 | LED505/470 -DF36W | |
| Price | US$ 860 | US$ 1,280 | US$ 1,370 | US$ 950 | |
Olympus TG-7 System - Set Composition & Price
| Set Code | Price | System Composition | |||
|---|---|---|---|---|---|
| PLBX-B | US$ 890 |  | |||
| PLBXB-TG7 | US$ 1,510 | |  | ||
| PLBXB-TG7 -UV312 | US$ 2,880 | | | | |
| PLBXB-TG7 -LED505/470DF | US$ 2,460 | | | | |
| Product Code | PLBX-B | TG7-SET | MBP-UV312 | LED505/470 -DF36W | |
| Price | US$ 890 | US$ 620 | US$ 1,370 | US$ 950 | |
Quick Selection Guide
- Choose Canon G7X Mark III when higher imaging sensitivity is a priority.
- Choose Olympus TG-7 when affordability and ruggedness are important.
- Choose UV312 when your stain and workflow require UV excitation.
- Choose LED505/470DF for compatible LED fluorescence workflows.
- Choose body-only when you already have a camera and light source.
- Ask us when you are unsure about stain, filter or wavelength compatibility.
Key Features
Wide Viewing Window
A wide viewing window with a built-in SC56 filter supports clear observation and accurate gel cutting. Viewing from directly above helps cut even narrow bands.
Light-Blocking Structure
The tilted filter lets stray light escape toward the back and ceiling, while the camera door blocks light from the front. This structure helps improve image contrast.
Double Doors & Click-Hinge
The double-door structure makes gel handling easier. Click-lock damper hinges keep the door open during work and help block external light when closed.
Comfortable Gel Cutting Space
Side-wall openings provide working space for gel cutting. The design offers a surprisingly large workspace despite the compact body size.
UV / LED Transilluminator Compatible
Pict LaBox can be used on top of many fluorescent excitation light sources when the surface is at least 220 mm wide and has no projections.
Secure Fixing for Smaller Illuminators
With Velcro tape, an illuminator smaller than the LaBox can also be fixed firmly for stable operation.
Optional Equipment
Specification
| Maximum Shooting Area | 200 x 167 mm Internal dimensions of the bottom of the box. |
|---|---|
| Shooting Distance | Approx. 280 mm, camera mounting adapter not included. Please use a digital camera that can focus on the shooting range at this distance. |
| Observation Window Size | 196 x 103 mm |
| Compatible Filter Size | 52 mm diameter filter |
| Filter | Built-in observation and photography filters. 52 mm diameter filter can be used as needed. |
| Sharp-Cut / Observation Window | UV transmittance, range: 220-450 nm. Max. 0.09%, average 0.02%. Actual measured values; not guaranteed values. |
| Material | ABS resin |
| Size | Width 280 mm x Depth 210 mm x Height 280 mm. Exterior dimensions. Camera mounting adapter not included. |
Camera Information
Canon PowerShot G7X Mark III
Please refer to the Canon website for detailed camera specifications. This camera is recommended when higher imaging sensitivity is needed.
Olympus Tough TG-7
Please refer to the Olympus / OM System website for detailed camera specifications. This camera is suitable for a rugged and practical workflow.
FAQ — Pict LaBox (MBP-PLBX)
What is Pict LaBox?
Pict LaBox is a compact gel documentation hood designed for visualizing, photographing, and cutting DNA, RNA, and agarose gels using a digital camera.
Does Pict LaBox require a darkroom?
No. Pict LaBox is designed to support gel imaging and cutting workflows under normal laboratory lighting conditions when used with a suitable transilluminator and camera setup.
Which camera sets are available?
Digital camera sets are available with Canon G7X Mark III or Olympus TG-7 configurations. The best option depends on imaging sensitivity, budget, and operating environment.
Can Pict LaBox be used with UV and LED transilluminators?
Yes. Pict LaBox can be used with suitable UV or LED transilluminators depending on the gel stain, fluorescence sample, and imaging workflow.
How much does Pict LaBox cost?
Pict LaBox is available from US$860 for the hood-only configuration. Complete camera sets with Canon G7X Mark III start at US$2,140 and with Olympus TG-7 at US$1,510. Full sets including UV or LED transilluminator range up to US$3,510.
What gel stains are compatible with Pict LaBox?
Pict LaBox is compatible with a wide range of fluorescence gel stains including Ethidium Bromide (EtBr), SYBR Green, GelRed, and GelGreen, when used with a suitable UV or LED transilluminator and appropriate filter.
What is the maximum gel size supported by Pict LaBox?
The maximum shooting area of Pict LaBox is 200 × 167 mm. The observation window size is 196 × 103 mm.
What is the difference between the Canon G7X Mark III set and the Olympus TG-7 set?
The Canon G7X Mark III set offers higher imaging sensitivity with a 1-inch sensor, suited for capturing faint DNA bands. The Olympus TG-7 set is more affordable, waterproof, dustproof, and shockproof, suited for routine laboratory use.
Need help selecting the right Pict LaBox setPlease tell us your gel size, stain, camera preference, UV/LED preference and required workflow.
We will recommend a suitable configuration.
