Which stereo microscope is suitable for camera connection?

YS05T and YS03C are trinocular stereo microscopes designed for camera connection. YS05T uses a C-mount trinocular port, while YS03C supports switchable JIS phototube and C-mount camera connection.

Which model is best for simple binocular observation?

MK01 and MK02 are compact binocular stereo microscopes with two fixed magnification levels. MK01 provides 10x and 20x, while MK02 provides 20x and 40x.

What is the difference between zoom and fixed magnification stereo microscopes?

Zoom stereo microscopes such as YS05T, YS03C and YS02Z2 allow continuous magnification adjustment. Fixed-magnification models such as MK01 and MK02 switch between two magnification levels using a turret objective system.

Stereo Microscope Specifications

Model comparison guide for stereo microscope selection

This page compares the main stereo microscope models available from Mecan USA. Use it as a quick reference for magnification range, working distance, camera connection, optical configuration and typical applications.

For continuous zoom observation and camera documentation, select a zoom or trinocular model. For simple workbench inspection, MK01 and MK02 provide compact fixed-magnification observation.

Zoom
Fixed Magnification
Camera
Working Distance
Inspection / R&D

Model Lineup

Specification Comparison

Item	YS05T	YS03C	YS02Z2	MK01	MK02
Price	US$ 1,580	US$ 890	US$ 740	US$ 480	US$ 480
Observation Head	Trinocular	Trinocular	Binocular	Binocular	Binocular
Magnification Type	Continuous zoom	Continuous zoom	Continuous zoom	2-step turret	2-step turret
Standard Total Magnification	6.7x to 45x	7x to 45x	7x to 45x	10x / 20x	20x / 40x
Field of View	Approx. 32.8 to 4.9 mm	Approx. 28.6 to 4.4 mm	Approx. 28.6 to 4.4 mm	Approx. 20 mm (10x) / 10 mm (20x)	Approx. 10 mm (20x) / 5 mm (40x)
Working Distance	110 mm	100 mm	100 mm	75 mm	75 mm
Weight	Approx. 4.5 kg	Approx. 4.6 kg	Approx. 4.7 kg	Approx. 3.5 kg	Approx. 3.5 kg
Camera Connection	C-mount trinocular port or eyepiece adapter	Switchable JIS phototube / C-mount or eyepiece adapter	Eyepiece adapter	Eyepiece adapter	Eyepiece adapter
Auxiliary Objective	0.5x (WD 177 mm) 2x (WD 26 mm)	0.5x (WD 165 mm) 2x (WD 33 mm)	0.5x (WD 165 mm) 2x (WD 33 mm)	-	-
Recommended Use	Camera documentation, live display, inspection	Flexible camera connection, education, inspection	Budget-friendly zoom observation	Simple 10x / 20x routine inspection	Simple 20x / 40x routine inspection

Prices and configurations are subject to change. Please confirm current availability, optional accessories and camera adapter compatibility before ordering.

Selection Guide

Choose YS05T when a C-mount camera port and simultaneous eyepiece / camera observation are important.

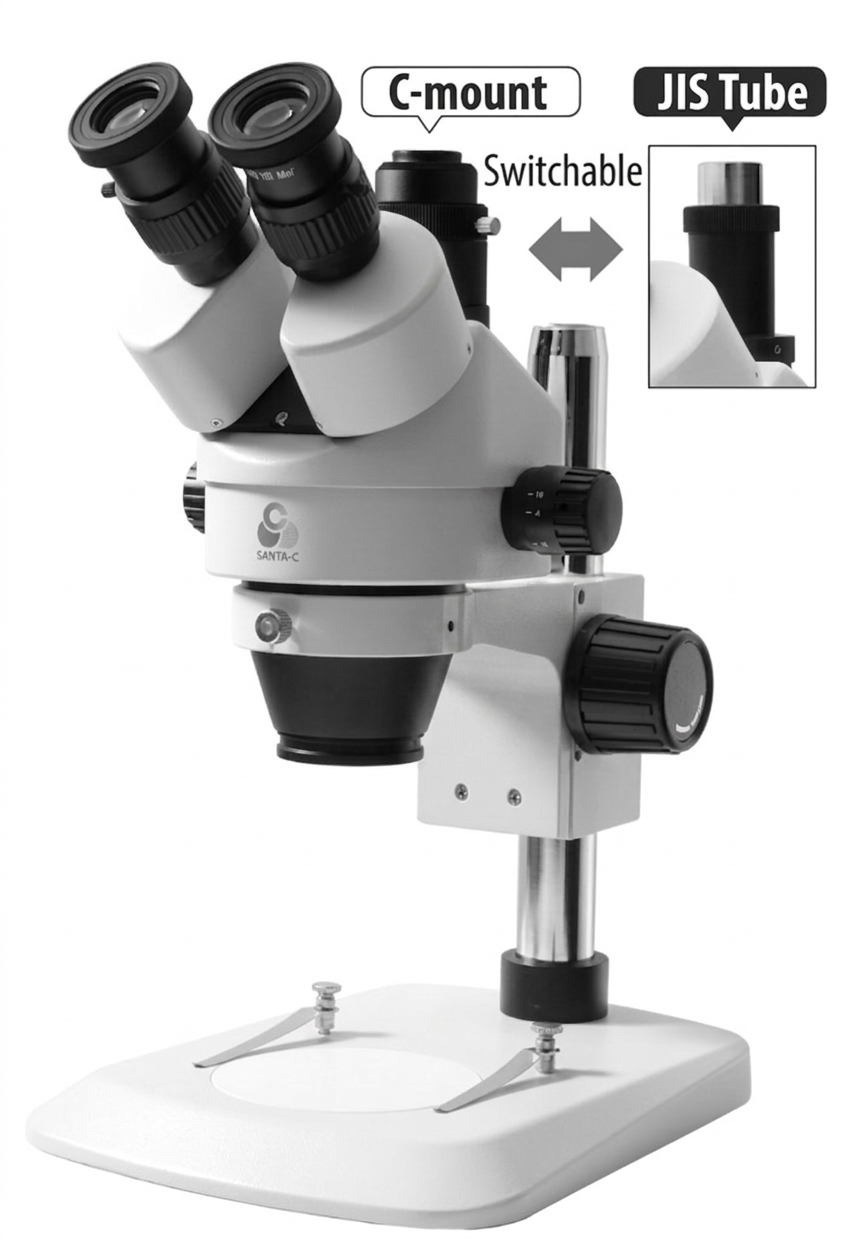

Choose YS03C when both JIS phototube and C-mount style camera connection may be required.
Choose YS02Z2 when you need continuous zoom observation but do not require a trinocular port.

Choose MK01 for simple 10x / 20x binocular observation on a compact workbench.
Choose MK02 when the same simple binocular format is preferred with 20x / 40x magnification.
For image capture with MK01, MK02 or YS02Z2, use an appropriate eyepiece camera adapter or camera system.

Technical Notes

Actual field of view and image coverage can vary depending on eyepiece, auxiliary objective, camera sensor size and adapter configuration. For camera documentation, always confirm the microscope model, camera type and intended imaging workflow before selecting an adapter.

If you are not sure which microscope is suitable, please contact us with your sample type, required magnification, working distance, camera model and observation purpose.
