Microscope Adapter for iPhone - iNTER LENS

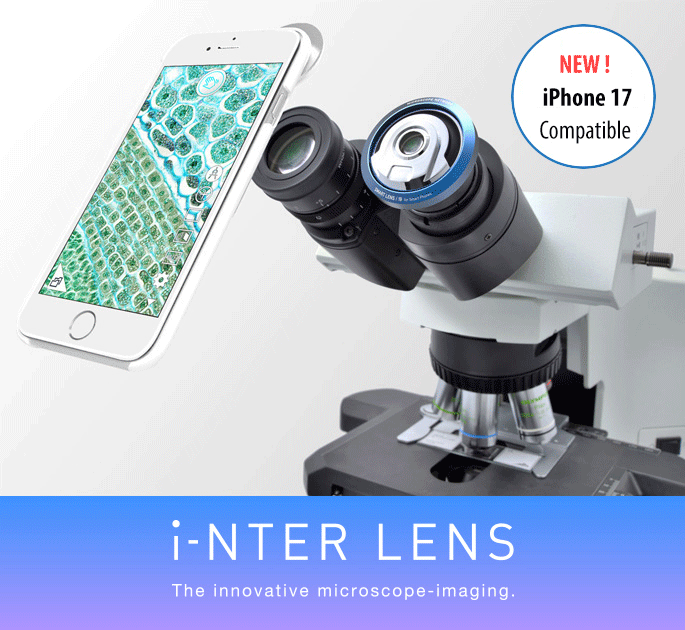

iNTER LENS microscope adapter for iPhone
Relay-lens iPhone microscope adapter for imaging & video documentation

The iNTER LENS is a dedicated microscope adapter for iPhone. Instead of simply holding the phone over an eyepiece, the adapter uses a relay-lens optical system to help project the microscope image to the iPhone camera with reduced distortion, aberration and vignetting when properly matched.

It is useful for microscope photography, video recording, classroom demonstrations, inspection work and laboratory documentation.
A dedicated attaching case is required for each supported iPhone model.

iPhone x Microscope Relay-Lens System Still Images / Video 23.2 mm / 30.0 mm Eyepiece
Price Features iNTER Shot App Installation Why iNTER LENS?

System Component

The iNTER LENS set consists of the main optical adapter, a sleeve for standard eyepiece-tube installation and a dedicated iPhone attaching case. The case differs by iPhone model.

iNTER LENS system components

Price and Compatible iPhone Models

Item Price
iNTER LENS Set <MR-6i> (Main product set) US$ 880
- iNTER LENS Main Body + Φ23.2 mm / 30.0 mm Sleeve US$ 650
- Dedicated Attaching Case US$ 230
Optional C-Mount Sleeve for C-mount Installation US$ 32
Available attachment case models include compatible cases for many iPhone generations, including iPhone 17 / 16 / 16 Pro / 15 / 15 Pro / 14 / 13 / 13 mini / SE series (3rd, 2nd gen) /
12 / 12 mini / 11 / X / XS / XS Max / XR / 7 / 8 and selected older models.
Please confirm the exact iPhone model before ordering.

Features

  • Dedicated optical system designed for iPhone microscope imaging.
  • Relay-lens design helps reduce vignetting, distortion and aberration.
  • Easy attachment and removal using a dedicated iPhone case.
  • Useful for still images, video recording and live demonstration.
  • Supports standard microscope eyepiece inside diameters.
  • Optional C-mount sleeve is available for compatible C-mount setups.
  • Ocular micrometer insertion is supported.
  • Suitable for education, inspection and laboratory documentation.
Dedicated optical system for iPhone microscope adapter

Dedicated Optical System

Optimized for iPhone camera imaging, the relay-lens system helps deliver a wide microscope image with reduced visual field defects compared with simple eyepiece-mounted smartphone holders.

Easy attachment with iPhone case

Easy Attachment

The dedicated iPhone case makes attachment and removal simple. No special tools or screws are required for routine installation and use.

iNTER LENS microscope adapter setup

iNTER Shot Support App

iNTER Shot support app for iNTER LENS

Touchless Control

The iNTER Shot app supports touchless shutter and touchless save functions to help reduce vibration when capturing microscope images. Not available on iPod touch.

Stable Image Capture

Touchless control is useful when high-magnification images are sensitive to vibration. It helps support sharper microscope images during documentation.

iNTER Shot app functions and microscope imaging

Installation and Microscope Compatibility

iNTER LENS microscope installation

Compatible eyepiece tube sizes for iNTER LENS

Eyepiece Tube Installation

Fits standard eyepiece inside diameters such as Φ23.2 mm and 30.0 mm. These sizes are commonly used on many microscopes.

C-Mount Option

The adapter can also be mounted to a compatible C-mount using the optional C-mount sleeve. Please confirm microscope-side compatibility before ordering.

Ocular micrometer insertion with iNTER LENS

Ocular Micrometer Insertion

The iNTER LENS features a built-in fixing bracket for ocular micrometer insertion.

Ocular Micrometer Stage Micrometer

Recommended Output Options

Wireless Monitor Output

With Apple TV and Wi-Fi connectivity, live microscope images can be wirelessly transmitted to a monitor. This is useful for classroom demonstrations, remote observation and collaborative work.

HDMI Cable Output

Wired image output via HDMI cable is also available using appropriate Apple adapters. Please purchase Apple TV, HDMI or VGA adapters directly from Apple or an authorized distributor.

Wireless monitor output using Apple TV

HDMI cable output for iPhone microscope adapter

Why iNTER LENS?

Issues with Simple iPhone Microscope Holders

  • Camera center often needs to be readjusted after removal.
  • Vignetting can make the image look like it is viewed through a small hole.
  • Peripheral distortion and lower edge resolution may occur through eyepiece-based setups.

Relay-Lens Solution

The iNTER LENS replaces the eyepiece-side optical path with a built-in relay-lens design that better matches the iPhone camera. This helps improve usability and image quality compared with simple mechanical smartphone holders.

Comparison of iNTER LENS and common iPhone microscope adapters

Important: Actual image quality depends on microscope model, objective magnification, eyepiece tube or C-mount configuration, iPhone model, camera settings and sample conditions.

See microscope adapter sample images.

Frequently Asked Questions

Q What is the iNTER LENS microscope adapter for iPhone? ▼
A The iNTER LENS is a relay-lens microscope adapter designed to connect compatible iPhone models to a microscope for still image capture, video recording and documentation.
Q How is it different from simple smartphone microscope adapters? ▼
A Instead of only holding a smartphone over an eyepiece, the iNTER LENS uses a dedicated relay-lens optical system to help reduce vignetting, distortion and peripheral image degradation when properly matched to the microscope and iPhone.
Q Which microscope connections are supported? ▼
A The adapter supports standard eyepiece inside diameters such as 23.2 mm and 30.0 mm. An optional C-mount sleeve is also available for compatible C-mount setups.
Q Does each iPhone model need a dedicated case? ▼
A Yes. A dedicated attaching case is required for each supported iPhone model so the camera position can be aligned with the adapter.
