MBP mini is a compact hood-type gel documentation system designed for routine DNA, RNA and agarose gel imaging using a digital camera.

Does MBP mini require a darkroom?

No. MBP mini supports gel imaging under normal laboratory lighting conditions when used with a suitable transilluminator and camera setup.

Which camera sets are available for MBP mini?

Digital camera sets are available with Canon G7X Mark III or Olympus TG-7 configurations. The Canon set is suitable for higher sensitivity imaging, while the TG-7 set is a rugged and affordable option.

Can MBP mini be used with UV and LED transilluminators?

Yes. MBP mini can be used with suitable UV or LED transilluminators depending on the gel stain, fluorescence sample and imaging workflow.

Gel Documentation System

Bio-Pyramid mini - MBP-mini
Digital Camera Gel Documentation System

Compact and budget-friendly gel imaging solution

MBP mini is a lightweight hood-type gel documentation system designed for simple and reliable DNA, RNA and agarose gel imaging using a digital camera.

It works with standard UV or LED transilluminators and allows gel observation and image capture. Choose a Canon G7X Mark III set for higher sensitivity imaging,
or an Olympus TG-7 set for a rugged, cost-effective workflow.

DNA / RNA Agarose Gel Digital Camera UV / LED Compatible

Camera Sets G7X Set TG-7 Set Options Specification

Choose from Two Digital Camera Setups

MBP mini Canon G7X Mark III gel documentation system

Canon G7X Mark III Set

High-sensitivity camera setup

Recommended when higher imaging sensitivity is required. The Canon G7X Mark III set is suitable for capturing faint bands and routine gel documentation with a compact digital camera.

View Canon Set Prices

MBP mini Olympus TG-7 gel documentation system

Olympus TG-7 Set

Simple and rugged camera setup

Recommended when a practical, affordable and rugged workflow is preferred. The TG-7 set is suitable for routine laboratory use and straightforward gel image capture.

View TG-7 Set Prices

Simple Gel Imaging for Routine Laboratory Work

Compact hood-type system for stable gel imaging in laboratory environments.
Compatible with standard UV and LED transilluminators.
Supports digital camera-based gel photography with simple setup.

Lightweight ABS resin hood with integrated metal handle.
Canon G7X Mark III set for higher sensitivity imaging.
Olympus TG-7 set for a rugged and practical workflow.

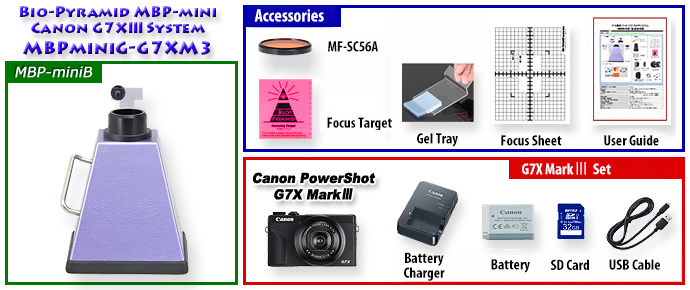

Canon G7X Mark III System - Set Composition & Price

MBP mini Canon G7X Mark III system composition

Set Code	Price	System Composition
MBPmiG-G7XM3	US$ 1,690
MBPmiG-G7XM3 -UV312	US$ 3,060
MBPmiG-G7XM3 -LED505/470DF	US$ 2,640
	Product Code	MBP-miG	G7XM3-SET	MBP-UV312	LED505/470 -DF36W
	Price	US$ 410	US$ 1,280	US$ 1,370	US$ 950

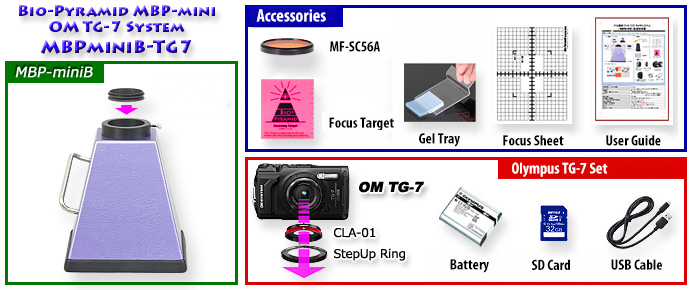

Olympus TG-7 System - Set Composition & Price

MBP mini Olympus TG-7 system composition

Set Code	Price	System Composition
MBPmiB-TG7	US$ 1,060
MBPmiB-TG7 -UV312	US$ 2,430
MBPmiB-TG7 -LED505/470DF	US$ 2,010
	Product Code	MBP-miB	TG7-SET	MBP-UV312	LED505/470 -DF36W
	Price	US$ 440	US$ 620	US$ 1,370	US$ 950

Optional Equipment

UV Transilluminator

UV excitation light source for compatible gel stains and workflows.

Details

LED Transilluminator

LED excitation light source for compatible fluorescence imaging.

Details

Optional Items

Additional helpful items for gel documentation and workflow setup.

Option Page

Specification

Maximum Shooting Area	167 x 147 mm (* interior dimension)
Shooting Distance	203 mm with Φ52 mm sleeve Select a camera that can focus on the shooting area at this range.
Compatible Filter Size	Glass filter: Φ52 mm
Material	Hood: ABS resin Ground contact area: Rubber
Standard Accessory	Built-in Φ52 mm connecting sleeve / body cap Sharp-cut filter
Weight	1029 g
Size	Width 187 x Depth 167 mm (= gel hood external dimensions) Height 206 mm

Camera Information

Canon PowerShot G7X Mark III

Please refer to the Canon website for detailed camera specifications. This camera is recommended when higher imaging sensitivity is needed.

Canon Website

Olympus Tough TG-7

Please refer to the Olympus / OM System website for detailed camera specifications. This camera is suitable for a rugged and practical workflow.

Olympus Website

FAQ - MBP mini Gel Documentation System

Q What is MBP mini? ▼

A MBP mini is a compact hood-type gel documentation system for routine DNA, RNA and agarose gel imaging with a digital camera.

Q What type of transilluminator can be used? ▼

A MBP mini can be used with suitable UV or LED transilluminators depending on the dye, sample and imaging workflow.

Q Which camera set should I choose? ▼

A The Canon G7X Mark III set is suitable when higher imaging sensitivity is preferred. The Olympus TG-7 set is suitable for a rugged, practical and cost-effective workflow.

Note: Actual imaging performance depends on the gel stain, fluorescence intensity, transilluminator wavelength, filter selection and camera settings.

Bio-Pyramid mini - MBP-mini Digital Camera Gel Documentation System
