What is included in the STC-HD213DV C-mount HDMI microscope camera set?

The set includes the STC-HD213DV HDMI C-mount camera and the NY-CZ C-mount microscope adapter. Optional phototube sleeves may be required depending on the microscope photo port.

Do these HDMI microscope cameras require a PC?

No. These cameras are designed for direct monitor connection via HDMI, so live microscope images can be viewed without PC setup.

Is a phototube sleeve required?

Depending on the microscope photo port, optional sleeves such as NY-BH, NY-JIS or NY-NF may be required. Please confirm the microscope model and photo port before ordering.

C-Mount HDMI Camera - STC-HD213DV

Direct-to-monitor microscope camera set for PC-free live viewing.

The STC-HD213DV is a C-mount HDMI camera for microscope observation, inspection and documentation workflows where a live image needs to be displayed directly on a monitor. The camera can be connected to a display via HDMI without PC setup, helping keep the work area simple and uncluttered.

C-mount HDMI microscope camera set connection overview

HDMI Output C-Mount Camera NY-CZ Adapter Set Full HD 1080p

Set & Price Specifications Installation Sample Images FOV

Overview

Simple live viewing without PC setup

Direct monitor connection via HDMI for live microscope observation.
Suitable for inspection benches, teaching rooms and routine observation where a PC is not preferred.
Remote control unit allows camera settings to be adjusted on screen through the camera interface.
Auto/manual white balance and push-to-set white balance support typical microscope imaging workflows.

STC-HD HDMI microscope camera and remote controller

STC-HD213DV

Full HD 1920 × 1080 output model using a 1/2.8 inch progressive color CMOS sensor.
This set is suitable when a higher-resolution monitor image is required.

Set Composition & Price

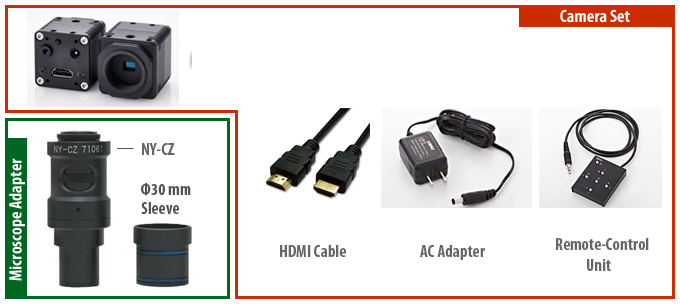

STC-HD93DV and STC-HD213DV microscope camera set composition — HDMI microscope camera set composition with NY-CZ C-mount microscope adapter.

Set / Item	Model No.	Composition	Price
NYCZ-STCHD213 Set
C-Mount HDMI Camera Set (Full HD 1080p)	STC-HD213DV	+	US$ 1,368
C-Mount Camera Microscope Adapter	NY-CZ	+	US$ 1,368

Prices and availability may change without notice.
Please confirm current availability and microscope compatibility before ordering.

Optional Items

Optional Item	Model No.	Price
Olympus PT type phototube sleeve	NY-BH	US$ 53
JIS type phototube sleeve	NY-JIS	US$ 53
Nikon F type phototube sleeve	NY-NF	US$ 26

Specifications

Viewer software and related information may be available from the manufacturer:
Sentech data download page.

Item	STC-HD213DV
Output / Connector	DV model: HDMI connector
Sensor	2.16 MP progressive color CMOS Sony IMX291
Sensor Size	1/2.8 inch
Cell Size	2.9 × 2.9 μm
Video Output	Full HD 1920 (H) × 1080 (V)
Frame Rate	DVI 1.0 compliant - RGB 60 fps
Minimum Scene Illumination	0.4 lux (Max Gain) @ F1.4
Shutter Speed	AEE or fixed exposure time Default: AEE Extended shutter frame unit up to 2.12 seconds* High speed from 1/33,750 seconds* *Depends on video output mode.
Lens Mount	C-Mount
Optical Filter	IR cut filter on
Size / Weight	W40 × H40 × D48.9 mm / 129 g *Connector excluded.
Power Input	Input voltage: DC +9-15 V (Typical: DC +12 V)
Power Consumption	Less than 3.2 W

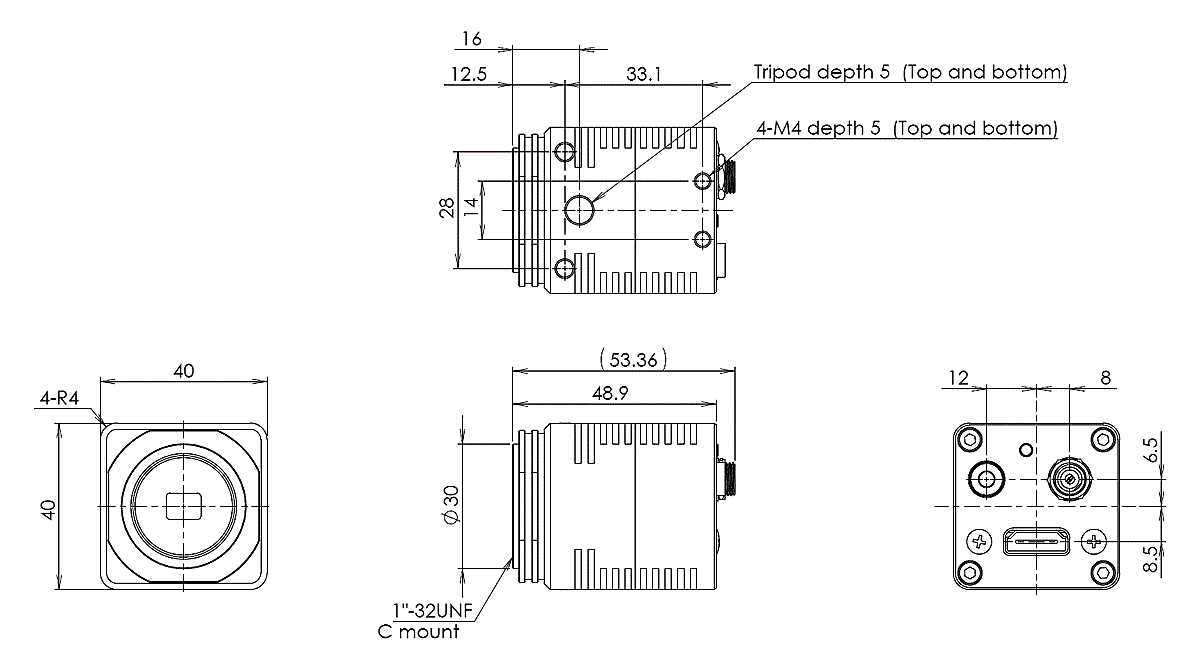

External Dimensions

Specifications and compatibility information are based on the available product information at the time of page preparation. Please confirm current availability, software support and microscope compatibility before ordering.
