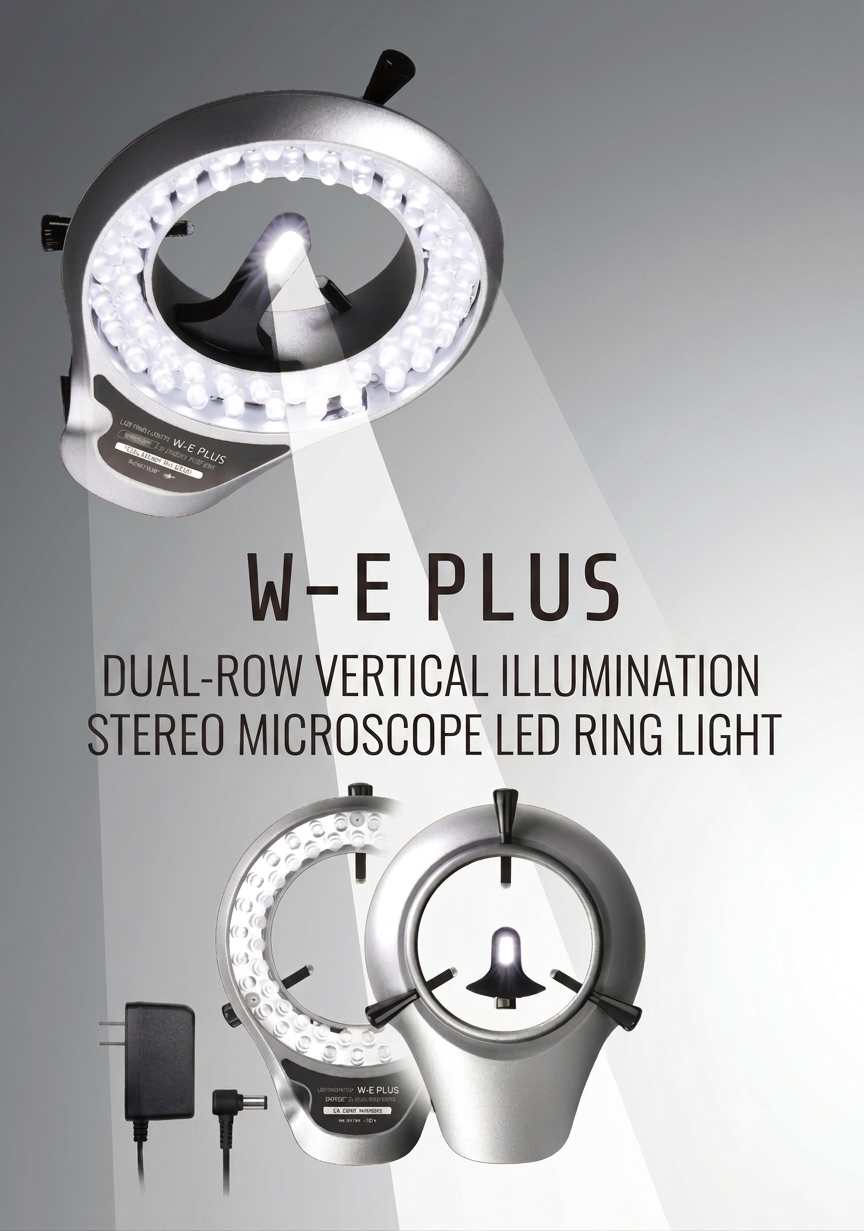

LED Ring Light WE-PLUS
High-brightness stereo microscope LED ring light with vertical illuminator unit
WE-PLUS is a dual-row LED ring light for stereo microscopes with a detachable vertical illuminator unit. The vertical illuminator is fitted with a concentrating lens that delivers approximately twice the brightness of conventional designs. With over 50,000 lux of illumination, built-in PWM dimmer and a durable aluminum die-cast body,
WE-PLUS is suitable for observation, inspection, assembly and quality control work.
Price
| Product | Model | Price |
|---|---|---|
| LED Ring Light with Vertical Illuminator (short type) | WE-PLUS | US$ 165 |
| Filter | Model | Price |
|---|---|---|
| Protective Filter (transparent) | WP-CF | US$ 15 |
| Diffuser Filter (white) | WP-RS | US$ 20 |
| Warm Filter | WP-WF | US$ 20 |
| Red Filter | WP-AF | US$ 20 |
| Blue Filter | WP-BF | US$ 20 |
| Adapter | Model | Price |
|---|---|---|
| Olympus SZ Series attachment | SZ-AD | US$ 20 |
| Carton attachment (limited compatible models) | C-AD | US$ 30 |
| 61-70 mm attachment | 6070-AD | US$ 35 |
| Accessory | Model | Price |
|---|---|---|
| Vertical Illuminator Unit — Long Type | WV-LONG | US$ 25 |
Features
- Over 50,000 lux — dual-row LED ring with vertical illuminator unit
- Vertical illuminator fitted with concentrating lens for approx. 2x brighter vertical light
- Illuminates recessed areas and deep cavities difficult to reach with ring light alone
- PWM dimmer control 0–100%, no external controller required
- Compatible with Nikon, Evident (Olympus), Mitsutoyo, Carton and other major brands
- Direct mounting Φ40–Φ61mm; optional adapters available for selected models
- Durable aluminum die-cast frame
Dual-Row LED Ring — Even Brighter

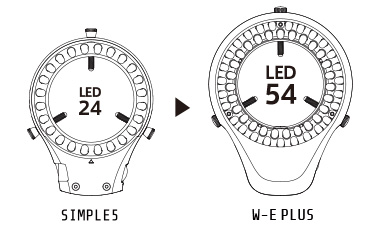

The high-brightness white LED proven in the Simple-5 is now arranged in two rows — 54 LEDs vs. 24 in Simple-5. This delivers over 50,000 lux of illumination, and the extra brightness makes filter work with optional color filters comfortable and effective.
Vertical Illuminator Unit — Illuminates Further

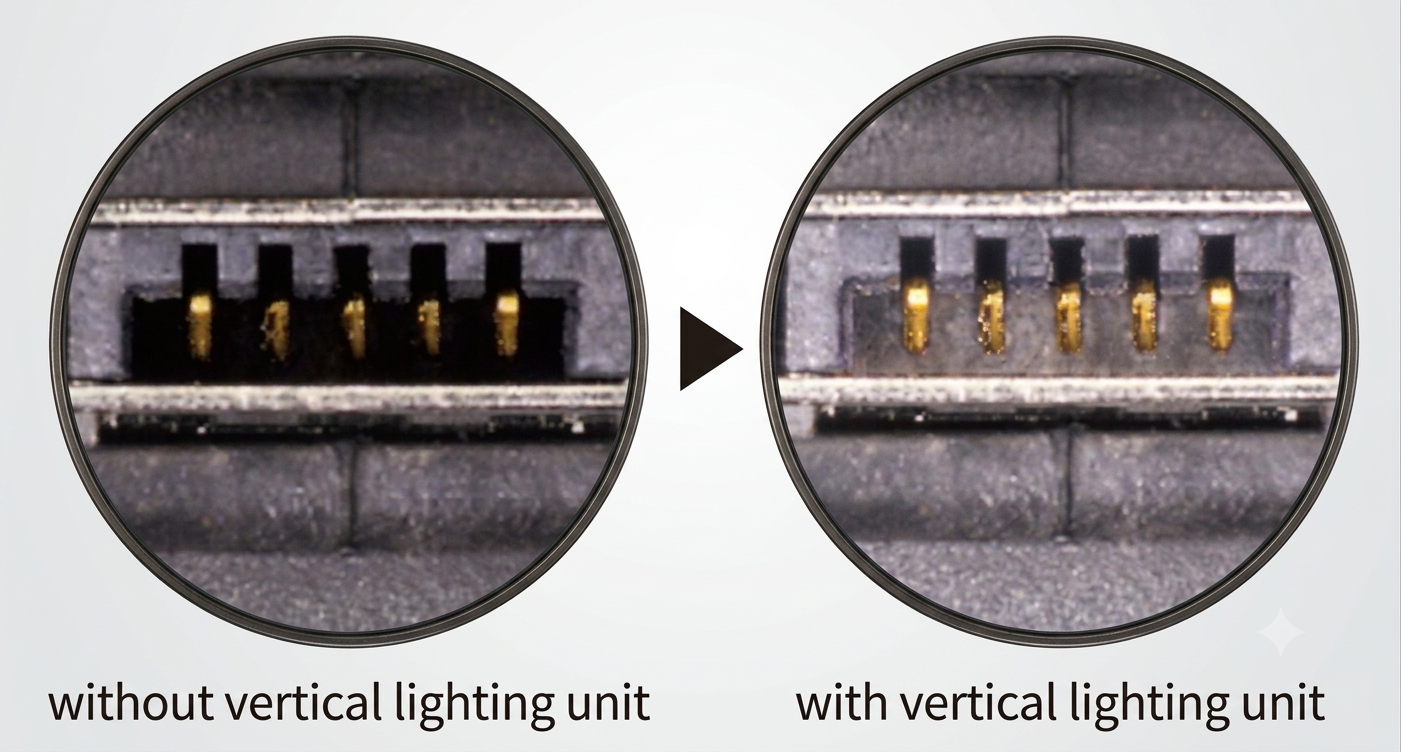

The newly designed vertical illuminator unit directs light deep into areas that are difficult to illuminate with a conventional ring light alone. Three high-brightness LEDs provide ample light output. The unit can be detached when not needed.

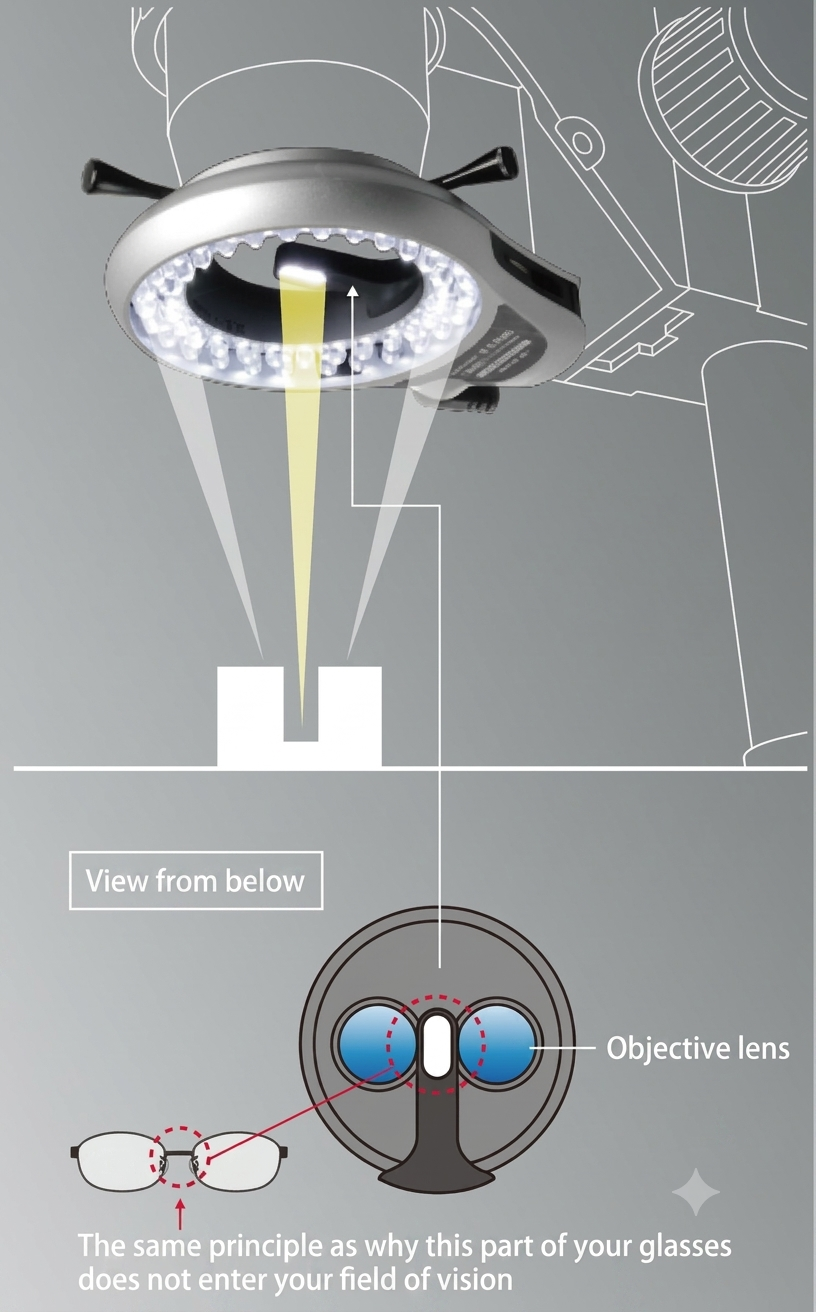

The vertical illuminator is positioned in the gap of the optical path between the left and right objective lenses. The position is determined based on independent optical analysis of major stereo microscope brands including Nikon, Olympus, Leica and Zeiss, minimizing interference with the field of view.
Options
Optional filters help adapt WE-PLUS to different observation conditions and sample types.

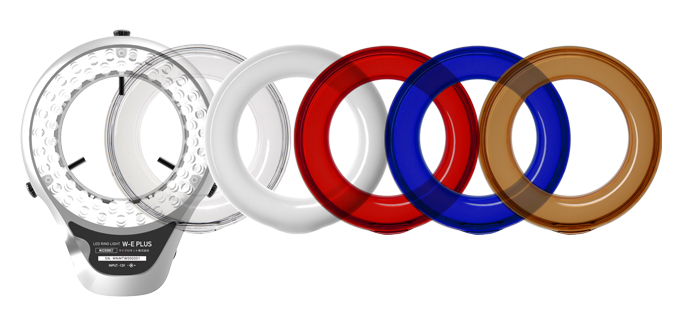

Filters

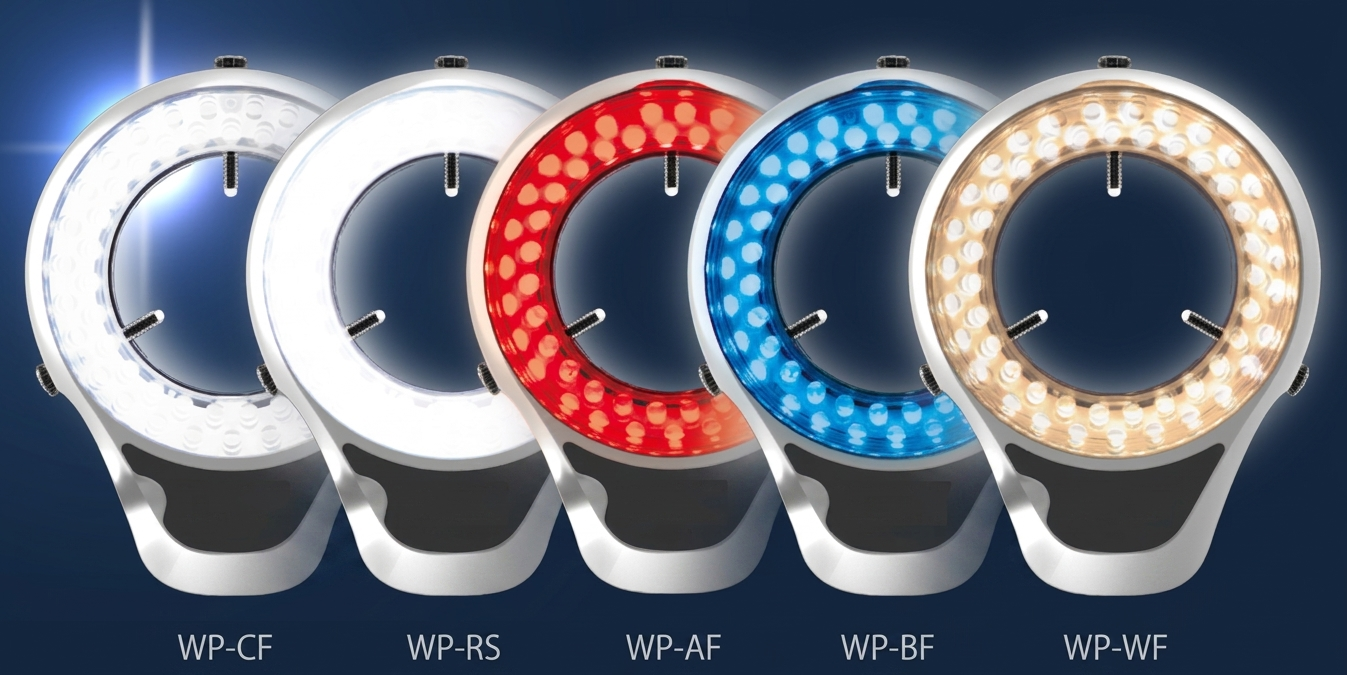

Protective (WP-CF), diffuser (WP-RS), warm (WP-WF), red (WP-AF) and blue (WP-BF) filters are available. Warm filter changes color temperature from approx. 8,000 K to approx. 5,000 K.
Vertical Illuminator — Long Type
A long-type vertical illuminator unit (WV-LONG) is available for samples requiring a longer working distance between the ring light and the observation surface.
Installation to Microscope
WE-PLUS can be attached directly with three screws when the target mounting diameter is within Φ40 mm to Φ61 mm. For selected microscope models or specific mounting configurations, an optional attachment adapter may be required.
Direct attachment with three screws
WE-PLUS is designed for direct attachment when the target mounting diameter is within the Φ40 mm to Φ61 mm range.
If the microscope has a different mounting diameter or a body shape that does not allow direct screw attachment, use the appropriate optional adapter.
Microscopes requiring an optional attachment adapter
- Olympus SZ61 / SZ Series:
SZ-AD, Φ48 mm, P=0.75, US$ 20 - Carton, limited compatible models:
C-AD, Φ49 mm, P=0.75, US$ 30 - Nikon: compatible with most models without an attachment adapter
- Target mounting diameter between
61 and 70 mm: 6070-AD, US$ 35
Note: Actual compatibility depends on the microscope model and the outer diameter of the mounting area. Please check the mounting diameter before ordering an attachment adapter.
Specification
| Max illuminance | Over 50,000 lux |
|---|---|
| Color temperature | Approx. 8,000 K; approx. 5,000 K with warm filter (WP-WF) |
| Voltage range | AC100V-240V / DC12V |
| Dimming | PWM dimming, variable range 0-100% |

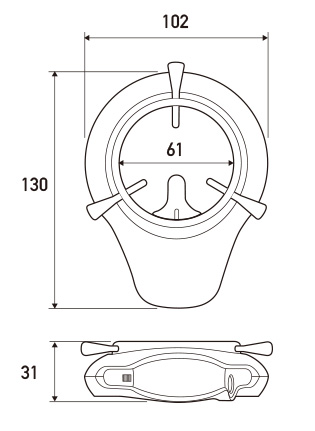

| Attaching diameter | Φ40-Φ61mm direct attachment |
| Power consumption | 4 W |
| Frame material | Aluminum die-cast |
| Compliance | PSE, RoHS2 |
| Country of origin | Japan |
