What is Bio-Pyramid MBP-03?

Bio-Pyramid MBP-03 is a compact hood-type gel documentation system designed for visualizing, photographing and cutting DNA, RNA and agarose gels using a digital camera.

Does MBP-03 require a darkroom?

No. MBP-03 supports gel imaging and gel cutting workflows under normal laboratory lighting conditions when used with a suitable transilluminator and camera setup.

Which camera sets are available for MBP-03?

Digital camera sets are available with Canon G7X Mark III or Olympus TG-7 configurations. The Canon set is recommended for higher imaging sensitivity, while the TG-7 set is suitable for a rugged and affordable workflow.

Can MBP-03 be used with UV and LED transilluminators?

Yes. MBP-03 can be used with suitable UV or LED transilluminators depending on the gel stain, fluorescence sample and imaging workflow.

Bio-Pyramid MBP-03
Digital Camera Gel Documentation System

Digital camera gel imaging for DNA, RNA and agarose gels

Bio-Pyramid MBP-03 is a compact hood-type gel documentation system designed for visualizing and photographing DNA, RNA and agarose gels using a digital camera.

It can be used with suitable UV or LED transilluminators and supports
routine gel imaging workflows.

Choose a Canon G7X Mark III set for higher imaging sensitivity,
or an Olympus TG-7 set for a simple, rugged and affordable workflow.

DNA / RNA Agarose Gel Digital Camera Gel Imaging / Cutting UV / LED Transilluminator

Camera Sets Canon Price TG-7 Price Options Specification

Compact Gel Imaging Made Simple

Visualize and capture DNA gels in one compact workflow.
Use directly with suitable UV or LED transilluminators.
Operate under normal laboratory lighting conditions.

Compact hood body made of lightweight ABS resin.
Canon G7X Mark III set for higher imaging sensitivity.
Olympus TG-7 set for a rugged and practical workflow.

Choose from Two Digital Camera Setups

Bio-Pyramid MBP-03 Canon G7X Mark III gel documentation system

Canon G7X Mark III Set

High-sensitivity camera setup

Recommended when higher imaging sensitivity is required. The Canon G7X Mark III set is suitable for capturing faint bands and routine gel documentation with a compact digital camera.

View Canon Set Prices

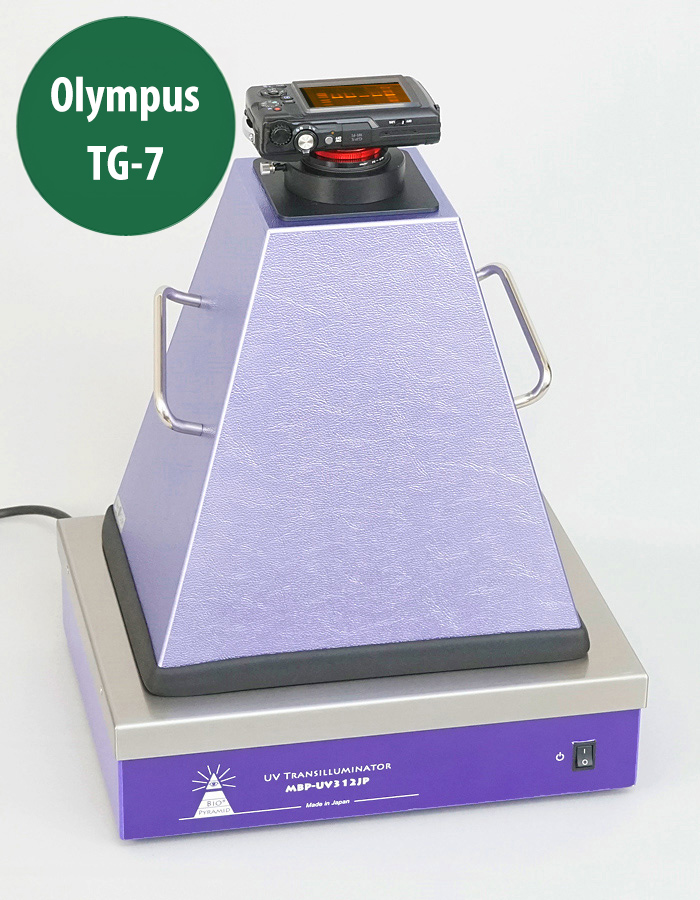

Bio-Pyramid MBP-03 Olympus TG-7 gel documentation system

Olympus TG-7 Set

Simple and rugged camera setup

Recommended when a practical, affordable and rugged workflow is preferred. The TG-7 set is suitable for routine laboratory use and straightforward gel image capture.

View TG-7 Set Prices

Canon G7X Mark III System - Set Composition & Price

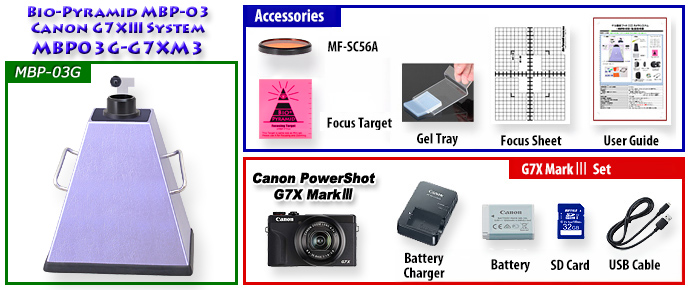

Bio-Pyramid MBP-03 Canon G7X Mark III system composition

Set Code	Price	System Composition
MBP03G-G7XM3	US$ 1,770
MBP03G-G7XM3 -UV312	US$ 3,140
MBP03G-G7XM3 -LED505/470DF	US$ 2,720
	Product Code	MBP-03G	G7XM3-SET	MBP-UV312	LED505-DF36W LED470-DF36W
	Price	US$ 490	US$ 1,280	US$ 1,370	US$ 950

Olympus TG-7 System - Set Composition & Price

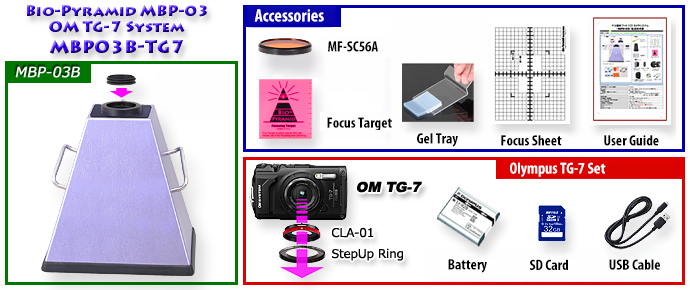

Bio-Pyramid MBP-03 Olympus TG-7 system composition

Set Code	Price	System Composition
MBP03B-TG7	US$ 1,140
MBP03B-TG7 -UV312	US$ 2,510
MBP03B-TG7 -LED505/470DF	US$ 2,090
	Product Code	MBP-03B	TG7-SET	MBP-UV312	LED505-DF36W LED470-DF36W
	Price	US$ 490	US$ 650	US$ 1,370	US$ 950

Optional Equipment

UV Transilluminator

UV excitation light source for compatible gel stains and workflows.

Details

LED Transilluminator

LED excitation light source for compatible fluorescence imaging.

Details

Optional Items

Additional helpful items for gel documentation and workflow setup.

Option Page

Specification

Maximum Shooting Area	267 x 207 mm (* interior dimension)
Shooting Distance	302mm with Φ52mm sleeve (* Select a camera that can be focused to shooting area at these ranges)
Compatible Filter Size	Glass Filter ：Φ52mm
Material	Hood ： ABS Resin 　 Ground Contact Area ： Rubber
Standard Accessory	Built-in Φ52mm Connecting Sleeve MF-SC56A filter.
Size	Width 287 x Depth 227mm (= External Dimensions) Height 302 mm (Multi-type lens adapter h:17mm / main body h:285mm) * The height of φ52 sleeve "MBP-52SLV" is not included.

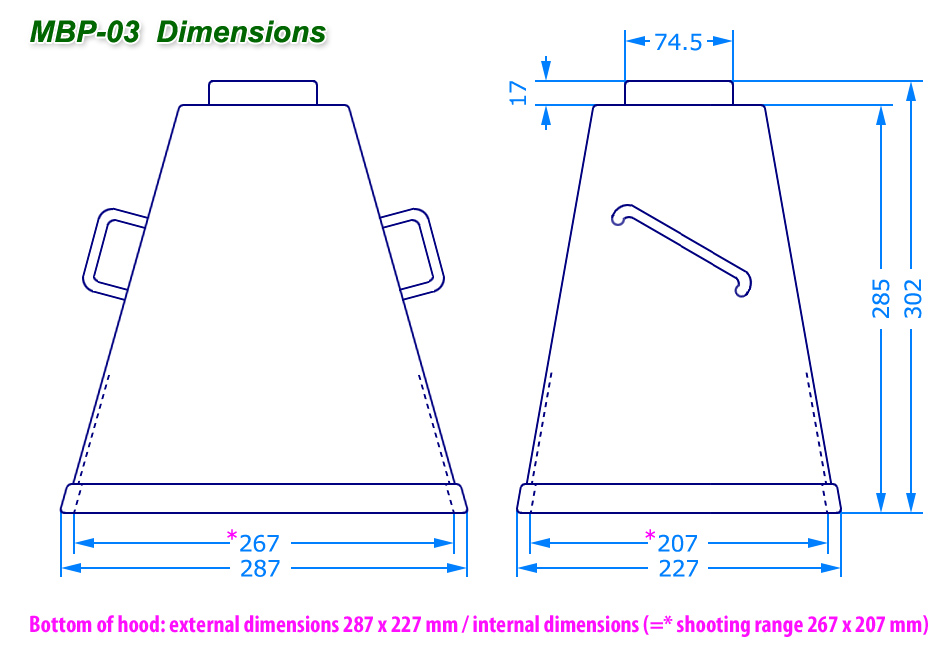

Bio-Pyramid MBP-03 external dimensions and maximum shooting area

Camera Information

Canon PowerShot G7X Mark III

Please refer to the Canon website for detailed camera specifications. This camera is recommended when higher imaging sensitivity is needed.

Canon Website

Olympus Tough TG-7

Please refer to the Olympus / OM System website for detailed camera specifications. This camera is suitable for a rugged and practical workflow.

Olympus Website

Need help selecting the right MBP-03 set? Please tell us your gel size, stain, camera preference, UV/LED preference and required workflow. We will recommend a suitable configuration.
