How is wire grid polarizing film different from a standard absorptive polarizer film?

A standard absorptive polarizer mainly absorbs the blocked polarization component, while a wire grid polarizer reflects it. This can reduce absorption loss and improve heat resistance in suitable optical systems.

Is this wire grid polarizer still available?

Wire grid polarizing film is currently out of stock and no longer available for order.

Is NIR polarizer film a direct replacement for wire grid polarizer film?

No. NIR polarizer film is structurally different and is not a direct one-to-one replacement for wire grid polarizer film. However, it may be a practical successor option for some near-infrared wavelength applications.

Optical Film & 3D Glasses

Wire Grid Polarizing Film

Film-based reflective polarizer using a metal nano-wire grid structure

Wire grid polarizing film is a reflective polarizer film that uses a fine metal nano-wire grid structure to separate polarization. It transmits one polarization component and reflects the orthogonal component.

Compared with standard absorptive polarizer films, it can reduce absorption loss and heat generation in suitable optical systems. It is used for visible to infrared applications, polarizing beam splitters, AR glass, sensors, cameras, machine vision and industrial inspection.

wire grid polarizer film reflective structure

Reflective Polarizer Wire Grid Structure Visible to IR PBS Machine Vision Limited Stock

Price Features Applications FAQ

Important Notice:
Wire grid polarizing films are now out of stock and no longer available for order.

For near-infrared wavelength applications, our NIR polarizer films may be considered as a practical successor option. Please note that they are not a direct one-to-one replacement for wire-grid polarizers.
→ NIR Polarizer Films

Wire Grid Reflective Polarizer Film Structure

wire grid polarizer film reflective polarizer feature

metal nano wire grid polarizer SEM section image

What wire grid polarizing film is used for

Wire grid polarizing film is used where reflective polarization separation, heat resistance and broad wavelength usability are required.

Typical applications include polarizing beam splitters, AR glass, head-up displays, cameras, sensors, machine vision, industrial inspection and NIR optical systems.

Reflects one polarization component and transmits the other.
Useful from visible light to infrared light.
Film format allows easier processing than many rigid components.

Wire Grid Polarizing Film Price

Product	Type	Size	Price
MLP-WG-COP	Non-Adhesive	80 x 240 mm t = 190 μm	~~$251~~ Out of stock
MLP-WG-COP Sample	Non-Adhesive	80 x 50 mm t = 190 μm	~~$79~~ Out of stock
Out of stock. This product is no longer available for order.

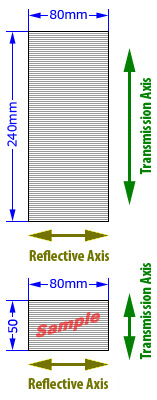

wire grid polarizer film sample size and polarization axis

Size and Axis Information

The standard sheet size is 80 x 240 mm. A smaller sample size is also available for preliminary optical evaluation.

Please check the polarization axis and handling direction before cutting or installation.

PDF Composition

PDF Notice

Features of Wire Grid Polarizing Film

Feature	Description
Reflective Polarizer	Transmits one polarization component and reflects the orthogonal polarization component.
Reduced Absorption Loss	Because it is not a standard absorptive polarizer, it can reduce heat generation caused by absorption in suitable optical systems.
Flexible Film Format	The film format provides better processability than many rigid wire-grid optical components.
Broad Wavelength Usability	Suitable for visible to infrared applications depending on the optical design and required performance.
Heat Resistance	Better heat resistance than many general absorptive polarizer films. Representative durability conditions include 60℃ / 90%RH / 1500h and 105℃ / dry / 1000h.
Machine Vision and Sensors	Suitable for polarization control in machine vision, infrared optical systems, optical sensors and camera-based inspection applications.

metal wire grid polarizer film structure

Metal Nano-Wire Grid Structure

The fine wire-grid structure enables polarization separation over a broad wavelength range.

This makes the film useful for applications where both polarization control and thermal durability are important.

Aluminum wire grid structure.
Reflective polarization separation.
Visible to infrared wavelength applications.

Applications of Wire Grid Polarizing Film

PBS / Polarizing Beam Splitter

Wire grid polarizer film can be used as a polarization separation element in polarizing beam splitter structures, including LCOS and AR-glass related optical systems.

Framed Filter

The film can be mounted to glass or a frame and installed into sensors, cameras, inspection devices and other optical equipment.

Application	Wavelength	Effect / Purpose	Precedent
Head-up Display	Visible light	Improved heat resistance	Yes
AR Glass	Visible light	PBS / high-angle optical design	Yes
Inspection Machine	Visible light	Polarized illumination / heat resistance	Yes
Onboard Camera	IR to approx. 1000 nm	Reflection and polarization control	Yes
Surveillance Camera	IR to approx. 1000 nm	Reflection and polarization control	Yes
Biometric Authentication Vein / Iris Recognition	IR to approx. 1000 nm	Sensor and imaging optics	Yes
Semiconductor Inspection	IR to approx. 1000 nm	Industrial imaging and inspection	Yes
Industrial Inspection Camera	IR to approx. 1000 nm	Machine vision polarization control	Yes
Fundus / Retinal Examination Equipment	IR to approx. 1000 nm	Optical noise reduction	Yes
Sorting Machines	IR to approx. 1000 nm	Fruit sorting and material inspection	Yes
Radar / THz / mm-Wave	THz / mm-wave	Interference reduction and polarization control	Pending

Selection / Compatibility Notice
Optical performance may vary depending on wavelength, incident angle, polarization axis, light source, sensor sensitivity, heat load, mounting method and surrounding optical components. Please evaluate the film under your actual operating conditions before final adoption.

Looking for wire grid polarizer film?
Contact us for pricing, availability and technical support based on your wavelength and application — send us an inquiry.

FAQ - Wire Grid Polarizing Film

Q What is a wire grid polarizing film? ▼

A It is a reflective polarizer film that uses a fine metal nano-wire grid structure. It transmits one polarization component and reflects the orthogonal component.

Q How is it different from a standard absorptive polarizer film? ▼

A Standard absorptive polarizers mainly absorb the blocked polarization component. Wire grid polarizers reflect the blocked component, which can reduce absorption loss and improve heat resistance in suitable optical systems.

Q What is the advantage of a wire grid polarizer? ▼

A A wire grid polarizer reflects unwanted polarization instead of absorbing it, which can reduce heat generation and improve performance in high-power or infrared optical systems.

Q Is this product still available? ▼

A This product is currently out of stock and no longer available for order. For near-infrared wavelength applications, our NIR polarizer films may be considered as a practical successor option.

Q Can NIR polarizer film replace this product? ▼

A Not directly. NIR polarizer film is structurally different and is not a one-to-one replacement. However, it may be a practical successor option for some near-infrared applications.
