What is Bio-Pyramid MBP-01?

Bio-Pyramid MBP-01 is a simple hood-type gel documentation system designed for visualizing and photographing DNA, RNA and agarose gels using a digital camera.

Does MBP-01 require a darkroom?

No. MBP-01 supports routine gel imaging workflows under normal laboratory lighting conditions when used with a suitable transilluminator and camera setup.

Which camera sets are available for MBP-01?

Digital camera sets are available with Canon G7X Mark III or Olympus TG-7 configurations. The Canon set is recommended for higher imaging sensitivity, while the TG-7 set is suitable for a rugged and affordable workflow.

Can MBP-01 be used with UV and LED transilluminators?

Yes. MBP-01 can be used with suitable UV or LED transilluminators depending on the gel stain, fluorescence sample and imaging workflow.

Bio-Pyramid MBP-01
Digital Camera Gel Documentation System

Simple and affordable gel imaging for DNA, RNA and agarose gels

Bio-Pyramid MBP-01 is a compact hood-type gel documentation system designed for routine gel imaging using a digital camera.

It provides a simple and cost-effective alternative to traditional darkroom or film-based gel documentation workflows.

Use it with a suitable UV or LED transilluminator depending on your gel stain, fluorescence sample and imaging workflow.

DNA / RNA Agarose Gel Digital Camera Routine Gel Imaging UV / LED Transilluminator

Camera Sets Canon Price TG-7 Price Options Specification

Simple Digital Camera Gel Imaging

Bio-Pyramid MBP-01 Canon G7X Mark III gel documentation system

Visualize and photograph DNA, RNA and agarose gels.
Use with suitable UV or LED transilluminators.
Large UV-cut observation window for direct viewing.
Lightweight ABS resin hood with rubber contact area.
Portable design with an integrated metal handle.
Cost-effective replacement for older film-based workflows.

Choose from Two Digital Camera Setups

Canon G7X Mark III Set

Higher-sensitivity camera setup

Recommended when higher imaging sensitivity is preferred. The Canon G7X Mark III configuration is suitable for routine gel documentation and faint-band capture with a compact digital camera.

View Canon Set Prices

Olympus TG-7 Set

Simple and rugged camera setup

Recommended when a practical, rugged and affordable workflow is preferred. The TG-7 set is suitable for straightforward gel image capture in routine laboratory use.

View TG-7 Set Prices

Canon G7X Mark III System - Set Composition & Price

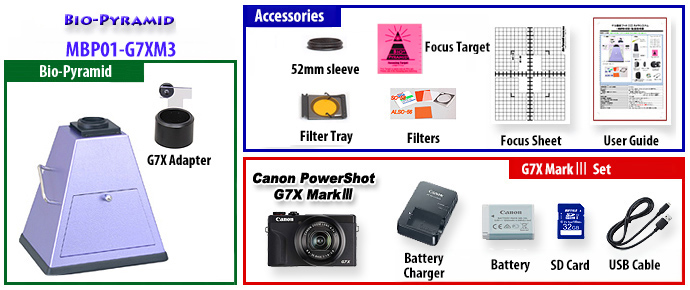

Bio-Pyramid MBP-01 Canon G7X Mark III system composition

Set Code	Price	System Composition
MBP01-G7XM3	US$ 1,770
MBP01-G7XM3 -UV312	US$ 3,140
MBP01-G7XM3 -LED505/470DF	US$ 2,720
	Product Code	MBP-01*	G7XM3-SET	MBP-UV312	LED505-DF36W LED470-DF36W
	Price	US$ 490	US$ 1,280	US$ 1,370	US$ 950

MBP-01*The price of this MBP-01 set includes the G7X adapter.

Olympus TG-7 System - Set Composition & Price

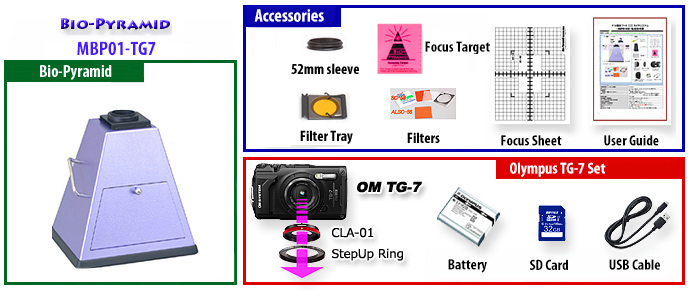

Bio-Pyramid MBP-01 Olympus TG-7 system composition

Set Code	Price	System Composition
MBP01-TG7	US$ 1,010
MBP01-TG7 -UV312	US$ 2,380
MBP01-TG7 -LED505/470DF	US$ 1,960
	Product Code	MBP-01	TG7-SET	MBP-UV312	LED505-DF36W LED470-DF36W
	Price	US$ 390	US$ 620	US$ 1,370	US$ 950

Optional Equipment

UV Transilluminator

UV excitation light source for compatible gel stains and routine fluorescence imaging workflows.

Details

LED Transilluminator

Visible LED excitation source for compatible fluorescence stains and safer visible-light workflows.

Details

Optional Items

Additional filters, adapters and helpful items for gel documentation workflow setup.

Option Page

Specification

Maximum Shooting Area	265 x 205 mm (* interior dimension)
Shooting Distance	310 mm with Φ52 mm sleeve * Select a camera that can be focused to the shooting area at this range.
Compatible Filter Size	Glass Filter: Φ52 mm Gelatin Filter: 75 mm square filter
Viewer Window	UV shield filter - transmission rate at 220-450 nm MAX 0.09%, Average 0.02% * Measured value, not guaranteed value.
Size	Width 287 x Depth 227 mm (= external dimensions) Height 310 mm
Weight	1040 g
Material	Hood: ABS resin Ground contact area: Rubber Viewer window filter: Acrylic resin
Standard Accessory	Built-in gelatin filter tray Built-in Φ52 mm connecting sleeve Standard filters: ALSC-56 filter / SC-58 filter / SC-60 filter

Camera Information

Canon PowerShot G7X Mark III

Please refer to the Canon website for detailed camera specifications. This camera is recommended when higher imaging sensitivity is needed.

Canon Website

Olympus Tough TG-7

Please refer to the Olympus / OM System website for detailed camera specifications. This camera is suitable for a rugged and practical workflow.

Olympus Website

What is MBP-01 used for? MBP-01 is used for imaging DNA, RNA and agarose gels after electrophoresis. It allows users to visualize and photograph fluorescent gel samples using a digital camera and a suitable transilluminator.

Need help selecting the right MBP-01 set? Please tell us your gel size, stain, camera preference, UV/LED preference and required workflow. We will recommend a suitable configuration.

Bio-Pyramid MBP-01 Digital Camera Gel Documentation System
