Bio-Pyramid mini - MBP-mini Smartphone Gel Documentation System
Ultra-compact gel imaging solution for DNA, RNA and agarose gels
Bio-Pyramid mini is the smallest and simplest smartphone gel documentation system in the Bio-Pyramid series, designed for quick gel visualization and image capture using a smartphone.
Used with suitable UV or LED transilluminators, it supports routine fluorescence gel imaging workflows for DNA, RNA and agarose gels.
Its compact hood design and universal smartphone adapter make it especially suitable for teaching laboratories, training, portable setups and cost-conscious routine documentation.
- Ultra Compact
- Smartphone
- DNA / RNA
- Agarose Gel
- UV / LED Transilluminator
Simple & Portable Smartphone Gel Imaging

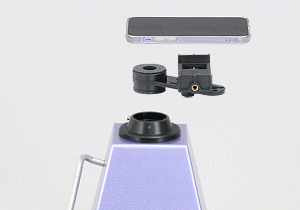

Universal Smartphone Adapter
Compatible with many smartphones.
Width adjustment range: 5.7 cm - 10.5 cm.
- Capture gel images using a smartphone camera.
- Ultra-compact hood design for easy installation and storage.
- Suitable for DNA, RNA and agarose gel documentation.
- Use with compatible UV or LED transilluminators depending on the stain.
- Real-time display and sharing are possible via smartphone connection features.
- Practical entry model for education, training and routine lab work.
Set Composition & Price
| Set Code | Price | System Composition | |||
|---|---|---|---|---|---|
| MBPmiS-USA | US$ 490 |  |  | ||
| MBPmi-USA -505 or 470TR | US$ 1,690 | | |  | |
| MBPmi-USA -505 or 470DF | US$ 1,440 | | |  | |
| Product Code | MBP-miS | MBP-USA | LED505/470 -TR60W | LED505/470 -DF36W | |
| Price | US$ 380 | US$ 110 | US$ 1,200 | US$ 950 | |

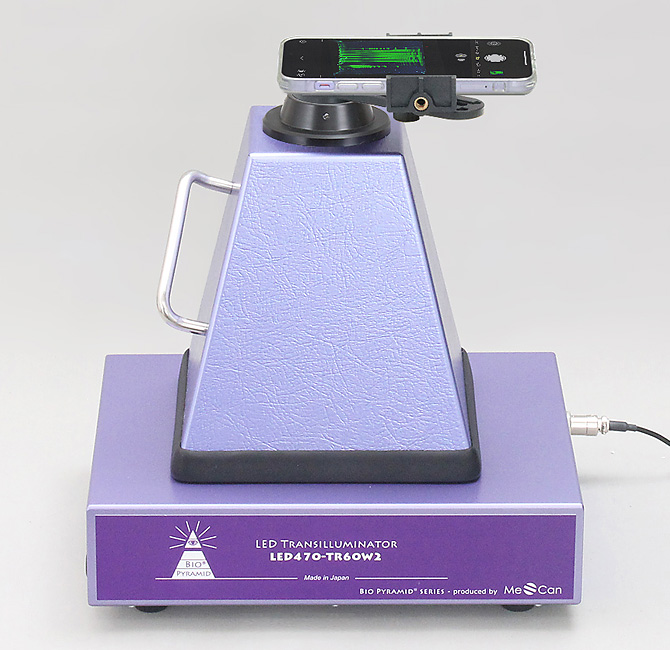

Light source selection Select the UV or LED transilluminator according to the stain, excitation wavelength and observation requirements.
Optional Items
UV Transilluminator
High-quality UV transilluminator equipped with a high-contrast filter to help reduce background.
LED Transilluminator DF Type
36W class high-power LED transilluminator. Available in 470 nm and 505 nm visible-light types.
LED Transilluminator TR Type
60W class super high-power LED transilluminator. Available in 470 nm and 505 nm visible-light types.
Recommended Applications
Education and Training
Smartphone-based operation makes it easy to display, explain and share gel images in teaching laboratories.
Routine Gel Documentation
Designed for everyday gel imaging where a simple and compact documentation setup is preferred.
PCR-Related Workflows
Useful for documenting agarose gels in PCR-related confirmation and routine molecular biology workflows.
Portable Lab Setup
The small footprint helps laboratories that need flexible gel imaging without a large dedicated imaging station.
Specification
| Product | Bio-Pyramid mini (MBP-mini) - Main Console |
|---|---|

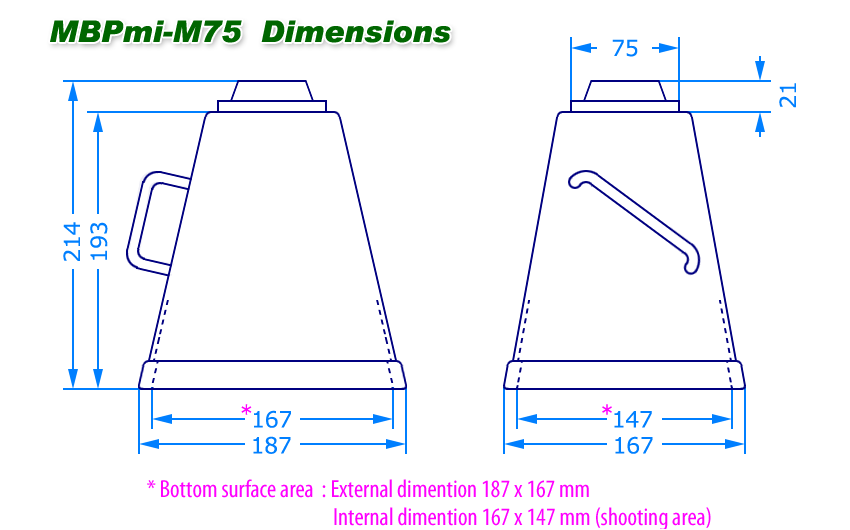

| Maximum Shooting Area | 167 mm x 147 mm Interior dimension at the bottom surface. |
| Shooting Distance | Approx. 214 mm to the tip of the lens. Please use a smartphone camera that can focus within this shooting distance. |
| Compatible Filter Size | Glass filter: 52 mm diameter |
| Material | Hood: ABS resin Bottom contact area: foam rubber |

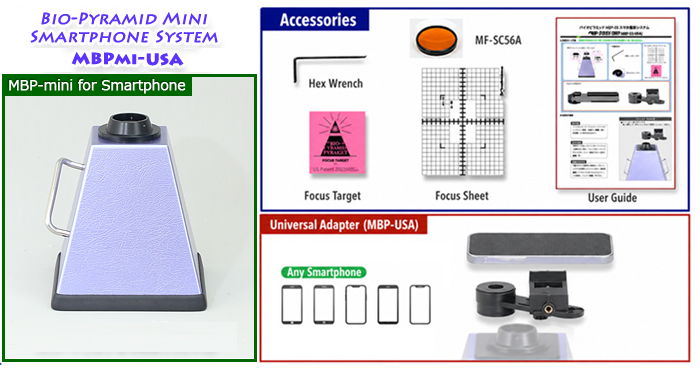

| Standard Accessory | Built-in 52 mm diameter connecting sleeve MF-SC56A filter |
| Size | Width 187 mm x Depth 167 mm Height 214 mm |
| Weight | Approx. 1.0 kg |
| Adapter Width Range | 5.7 cm - 10.5 cm |
| System Use | Smartphone gel imaging with suitable UV or LED transilluminators. |
FAQ
What is the Bio-Pyramid mini Smartphone Gel Documentation System?
Bio-Pyramid mini is an ultra-compact smartphone gel documentation system for photographing DNA, RNA and agarose gels.
How is Bio-Pyramid mini different from larger gel documentation systems?
Bio-Pyramid mini focuses on compact size, simple operation and lower cost. It is suitable when a small, portable and easy-to-use gel imaging setup is preferred.
Can Bio-Pyramid mini be used with different smartphones?
Yes. The current set uses the MBP-USA universal smartphone adapter, with an adjustable holding width of 5.7 cm to 10.5 cm. Compatibility also depends on camera position, phone case dimensions, secure mounting and the camera's ability to focus at the required shooting distance (approximately 214 mm to the lens tip). A phone within the width range may still be unsuitable. Please contact Mecan USA with your smartphone model and case details before ordering if you are unsure.
Can it be used with UV and LED transilluminators?
Yes. Bio-Pyramid mini can be used with suitable UV or LED transilluminators depending on the fluorescence stain and wavelength requirements.
What stains can be used?
It can be used for common gel imaging workflows such as EtBr, SYBR Green, GelRed and GelGreen when the appropriate excitation light source and filter conditions are selected.
