What is MRV-MSL and how does it differ from MRV-MS?

MRV-MSL is an upgraded version of the MRV-MS stereo microscope polariscope strain viewer. The key improvement is the LED-TR02W large-area flat panel LED light source, which is only 8.5 mm thin and provides uniform polarized illumination across the entire field of view regardless of sample size.

What observation methods does MRV-MSL support?

MRV-MSL supports three observation methods: crossed-Nicols, parallel-Nicols and sensitive color (sensitive tint) observation. These methods allow qualitative inspection of residual stress and birefringence in transparent materials.

Can MRV-MSL be attached to an existing stereo microscope?

Yes. The MS-MU filter holder supports objective lens outside diameters up to 61 mm and can be attached to most stereo microscopes. Complete sets with a recommended zoom stereo microscope are also available.

What makes the flat panel LED different from a conventional box-type LED illuminator?

The LED-TR02W flat panel LED is only 8.5 mm thick and provides large-area uniform illumination. Conventional box-type illuminators may have uneven brightness, especially at the edges. The flat panel design ensures consistent illumination regardless of sample size or position.

Polariscope

MRV-MSL
Stereo Microscope Polariscope Strain Viewer

Name: MRV-MSL Stereo Microscope Polariscope Strain Viewer
Brand: Mecan USA
SKU: MRV-MSL
Availability: InStock

Microscope-based strain inspection system with large-area flat panel LED for uniform polarized illumination.

The MRV-MSL is a stereo microscope polariscope strain viewer featuring a large-area flat panel LED light source — just 8.5 mm thin — which delivers uniform polarized transmitted illumination across the entire field of view regardless of sample size. It supports crossed-Nicols, parallel-Nicols and sensitive color observation for inspecting residual stress and birefringence in transparent plastics, glass and acrylic.

Crossed-Nicols Sensitive Color Method Large-Area Flat Panel LED Stereo Microscope Use

Features Configuration & Price Options Recommended Sets Specifications

MRV-MSL Stereo Microscope Polariscope System

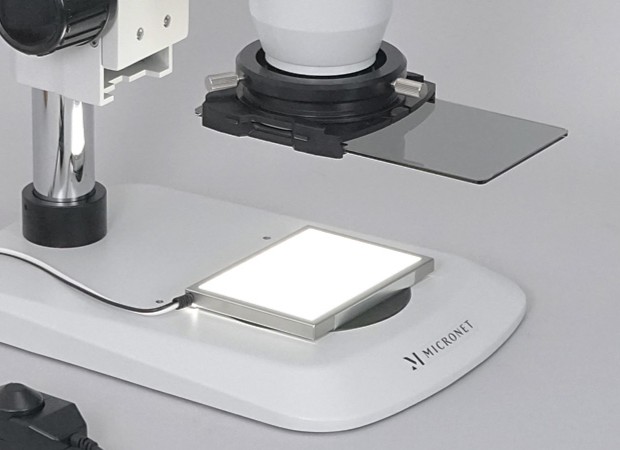

MRV-MSL stereo microscope polariscope strain viewer with flat panel LED

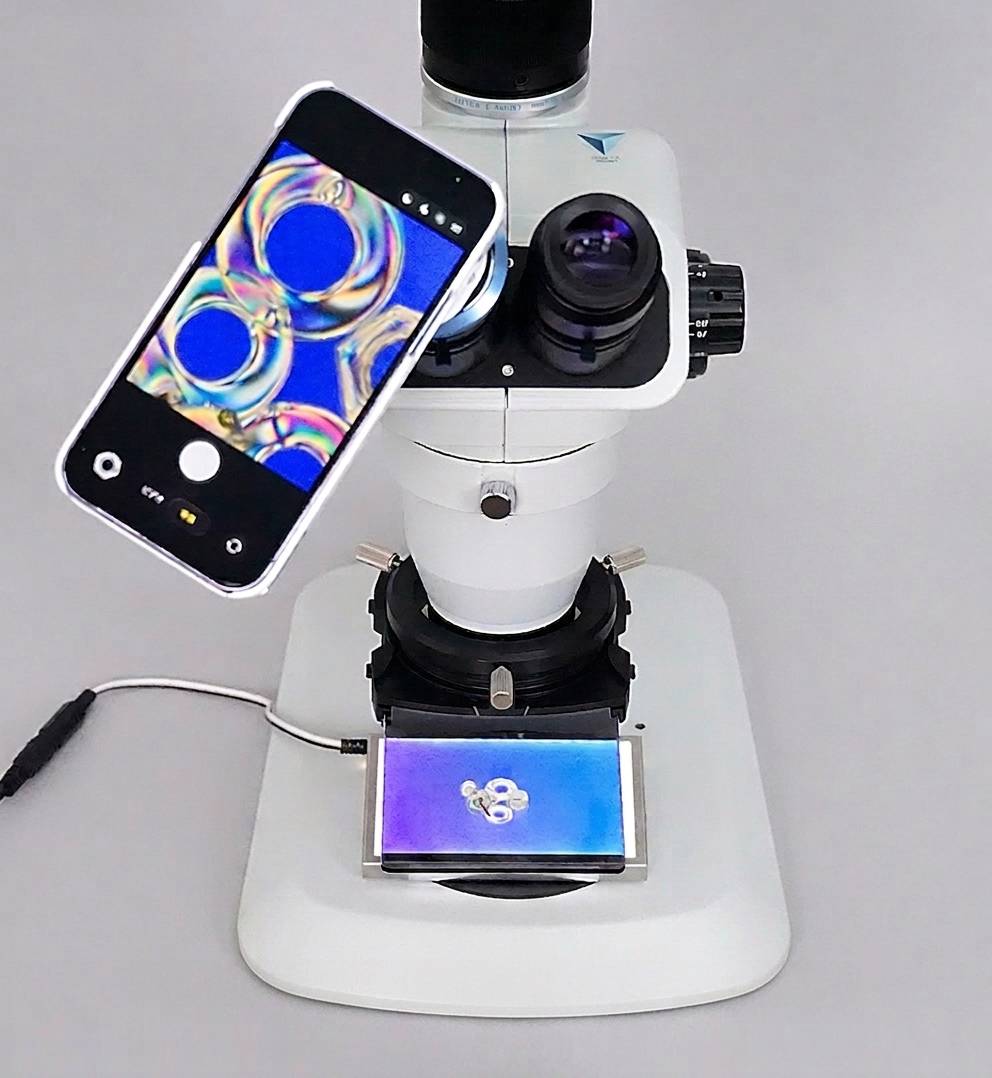

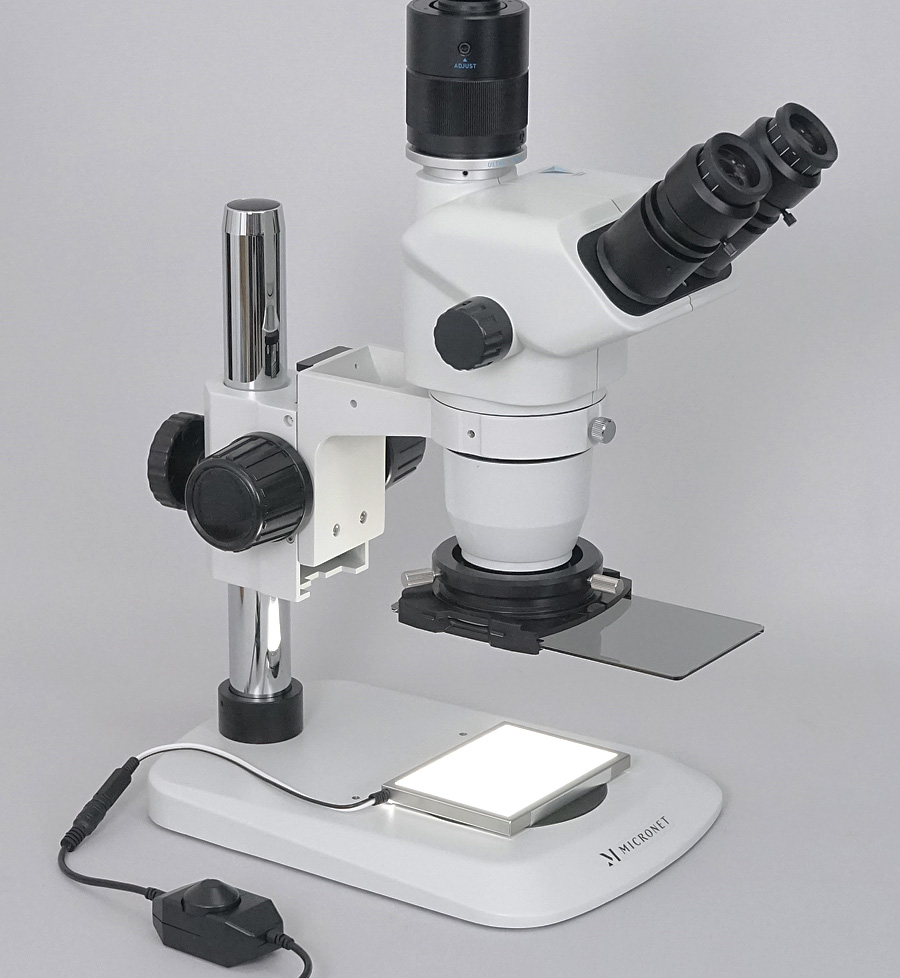

MRV-MSL installed on a stereo microscope

Crossed-Nicols microscope strain inspection sample

Crossed-Nicols Method

Place polarizer and analyzer at crossed axes to observe stress-related birefringence in transparent samples.

Sensitive color microscope strain inspection sample

Sensitive Color Observation

The sensitive color method makes stress direction and distribution easier to compare visually during inspection.

Large-area flat panel LED illuminationThe large-area LED panel delivers uniform illumination across the entire field of view regardless of sample size, making it easy to inspect larger parts or multiple samples simultaneously. The polarized illumination is continuously dimmable.
Crossed-Nicols and sensitive color observationCovers a wide range of inspection targets, from plastic parts with clear residual stress to glass and acrylic with more subtle birefringence. Both crossed-Nicols and sensitive color methods are supported.
Compact, portable and easy to useThe system assembles and disassembles quickly, making it practical for on-site inspection, field work and small-lot quality checks. The ultra-thin LED panel adds minimal height on the microscope stage.
Flexible microscope combinationThe basic set upgrades an existing stereo microscope. Complete sets with a trinocular stereo microscope and camera are also available.

Standard Configuration and Price

Installation example on a
stereo microscope

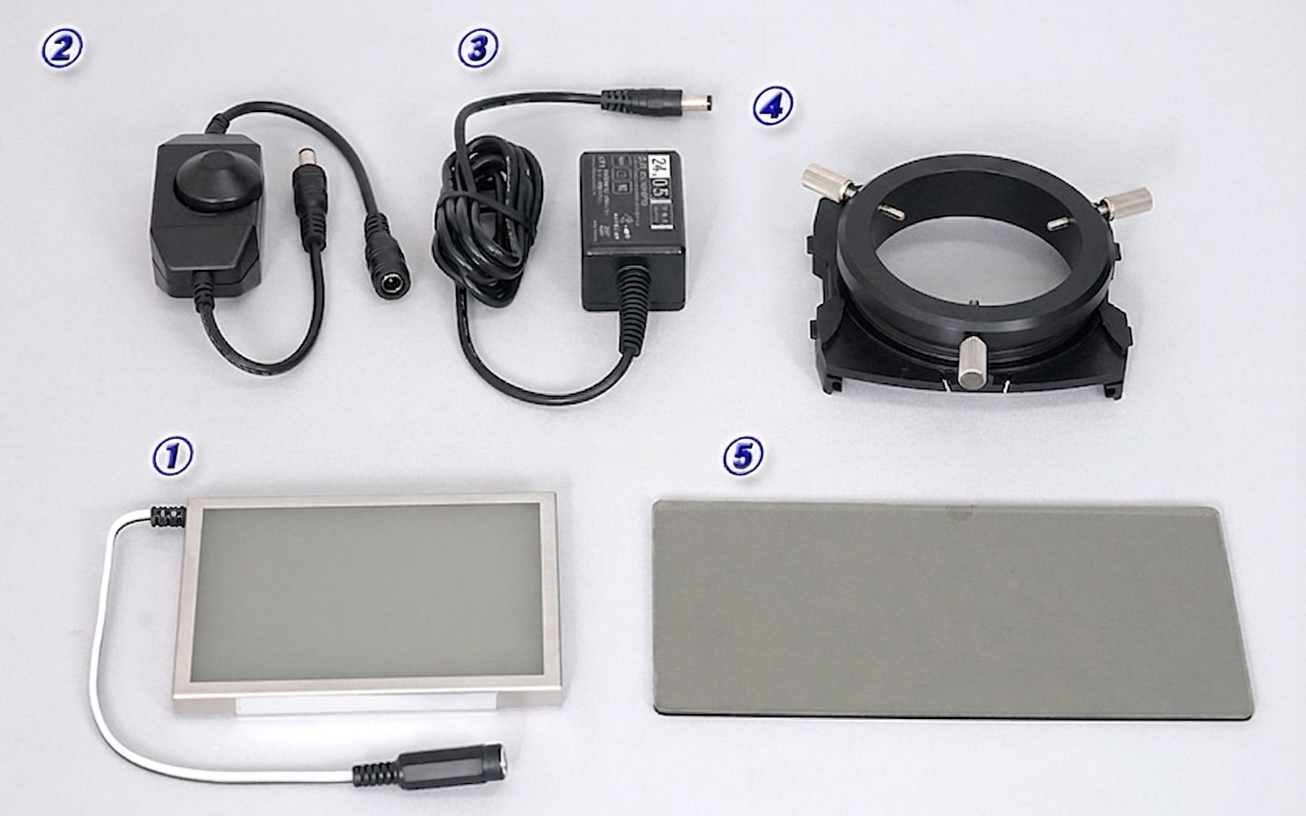

Included Components

①
Polarized transmitted LED light source
High-intensity large-area flat panel polarized illumination
②
Brightness controller
Stepless LED brightness adjustment
③
AC adapter
Stable switching AC adapter (100–240V input, 12V output)
④
Microscope filter holder
For objective lens outside diameter up to
φ61 mm (option: up to φ70 mm)
⑤
Polarizing / sensitive color analyzer
Crossed-Nicols, parallel-Nicols and sensitive color

Product	Part No.	Price
Stereo Microscope Polariscope Strain Viewer Set	MRV-MSL	US$ 440

Recommended Options

OM System TG-7 microscope camera adapter set

Recommended Set Configurations

Set Part No.	Price	MRV-MSL	Stereo Microscope	Smartphone Adapter	TG-7 Camera Set
MRV-MSL	US$ 440
MRVMSL-YS05T	US$ 2,020
MRVMSL-MR6i	US$ 1,320
MRVMSL-YS05T-MR6iL	US$ 2,900
MRVMSL-NYTG7	US$ 1,735
MRVMSL-YS05T-NYTG7	US$ 3,315
	Product Code	MRV-MSL	YS05T	MR6i	NYTG7
	Price	US$ 440	US$ 1,580	US$ 880	US$ 1,295

Note: iPhone adapter does not include the iPhone itself.
Please use a compatible iPhone supplied by the customer.

Specifications

Microscope Filter Holder

Microscope Mounting Diameter	Up to φ61 mm outside diameter
Holder Dimensions	Approx. 96 mm diameter × 39 mm height, excluding screws and protrusions
Weight	95 g (body only, excluding filters)
Compatible Filters	t2 / t3 mm acrylic filters (×2) and gelatin filter (×1, 83.5 mm width) can be loaded simultaneously
Rotation	Filter section rotates 360°

Polarizing / Sensitive Color Analyzer

Observation Method	Crossed-Nicols, parallel-Nicols and sensitive color — 3 methods available
Dimensions	83.5 × 165 mm, t2.0 mm

Large-Area Flat Panel Polarized LED Light Source

Illumination Method	Large-area flat panel LED, direct transmitted illumination from below the sample
Body Dimensions	W106 × D78 × H8.5 mm
Power Consumption	Max 2 W (with brightness control)
Power Supply	Input: 100–240V, 50–60Hz universal Output: 12V, 0.5A, 12W PSE / UL / CE certified
LED Lifetime	Approx. 40,000 hours (estimated)

MRV-MSL
Stereo Microscope Polariscope Strain Viewer
