High Durable Anti-Reflective Acrylic Sheet
Outdoor Type AR Acrylic

High-weather-resistant anti-reflective acrylic sheet designed for outdoor and demanding display environments. This durable AR acrylic uses a high-performance vapor-deposited dry-type coating to reduce surface reflection while improving visibility.

It is suitable for safety check monitor covers, destination display panels on station platforms, outdoor display protection, acrylic windows, and other applications that require reflection reduction, surface durability, and weather resistance.

Outdoor Use High Weather Resistance Vapor-Deposited AR Coating 4H Pencil Hardness
Overview ARAC503T2 Durability Data Applications How to Cut

Outdoor-Use AR Acrylic with High Durability

High durable anti-reflective acrylic sheet for outdoor display applications

This durable type is different from standard wet-processed AR acrylic. It is designed for applications where outdoor weather resistance and coating durability are especially important.
  • Designed for outdoor and high-durability applications.
  • Vapor-deposited dry-type AR coating reduces surface reflection.
  • 4H pencil hardness under JIS K5600-5-4 test conditions.
  • Hydrophobic surface with contact angle of 105° or more.
  • Suitable for protective covers, station display panels, and safety monitor windows.

ARAC503T2 - High Durable Anti-Reflective Acrylic Sheet


ARAC503T2 high durable anti-reflective acrylic coating structure ARAC503T2 high durable AR acrylic product image

Item Code Size Effective Area Unit Price
ARAC503T2 500 x 385 mm | t = 2 mm 486 x 371 mm $177

Durability & Surface Performance Data

Item Test Conditions Result
Pencil Hardness JIS K5600-5-4, load: 750 g 4H
Contact Angle θ/2 method 105° or more
Adhesion Cross-hatch cellophane tape peeling method, 3 times No peeling
Heat Resistance 80°C, 1000 h No peeling
Damp Resistance 60°C, 95%, 1000 h No peeling
Damp Resistance 85°C, 85%, 1000 h No peeling
Saltwater Resistance Salt spray test, JIS Z2371, 28 days No peeling
Light Resistance Super Xenon, BP = 63°C, 2000 h No peeling

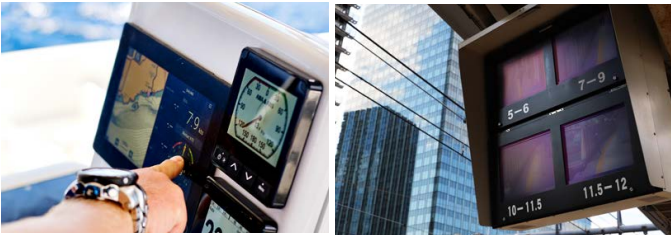

Recommended Applications

Outdoor Displays

Useful for protective display panels where sunlight reflection and long-term weather exposure are concerns.

Safety Monitor Covers

Suitable for safety check monitors and inspection windows that require clearer visibility and surface durability.

Station Display Panels

Designed for applications such as destination display panels on station platforms and other public display environments.
Important Handling Note The AR coating is a functional optical surface. Please avoid abrasive cleaning, strong solvents, and unnecessary rubbing.

How to Cut Acrylic Sheet

Easy to cut with an acrylic cutter

Score the acrylic surface repeatedly with an acrylic cutter. When the groove reaches approximately one-third of the sheet thickness, place the sheet along the edge of a desk and snap it carefully.

How to cut high durable anti-reflective acrylic sheet
