What is Pict LaBox Smartphone Gel Documentation System?

It is a compact gel documentation system that allows DNA, RNA and agarose gels to be imaged with a smartphone and suitable UV or LED transilluminator.

Which smartphone adapters are available?

Two adapter options are available: a universal smartphone adapter with an adjustable width range and an iPhone adapter for selected iPhone models.

Can Pict LaBox be used for gel cutting?

Yes. Pict LaBox supports gel observation, smartphone image capture and gel cutting workflows when used with a suitable light source.

Can it be used with UV and LED transilluminators?

Yes. Pict LaBox can be used with suitable UV or LED transilluminators depending on the stain, wavelength and fluorescence workflow.

Gel Documentation System

Pict LaBox
Smartphone Gel Documentation System

for DNA, RNA and Agarose Gel Imaging. Compact smartphone gel imaging and cutting workflow for everyday laboratory use

Pict LaBox Smartphone Set is a compact gel documentation system designed for visualizing, photographing and cutting DNA, RNA and agarose gels using a smartphone.

Compatible with a wide range of fluorescence stains such as EtBr, SYBR Green, GelRed and GelGreen when used with suitable UV or LED transilluminators.

Ideal for teaching labs, small research labs, and routine gel documentation workflows requiring a compact and cost-effective solution.

Smartphone DNA / RNA Agarose Gel Gel Imaging / Cutting UV / LED Transilluminator

Price Features Options Specification

Pict LaBox smartphone gel documentation system

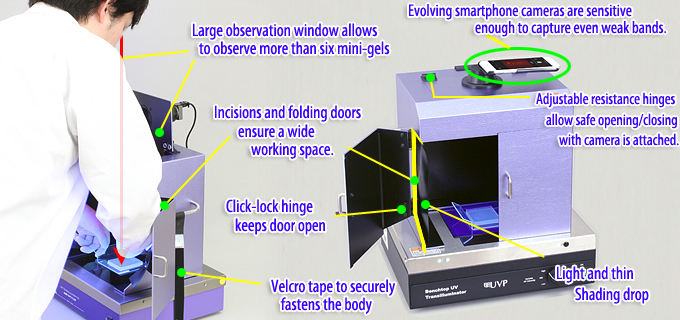

Pict LaBox gel imaging and gel cutting workflow

Smartphone Gel Imaging Made Simple

Compatible with many smartphones.
Width adjustment range: 5.7 cm - 10.5 cm.

Capture gel images with a smartphone and compact Pict LaBox hood.
Use directly with suitable UV or LED transilluminators.
Support gel observation, image capture and gel cutting workflows.

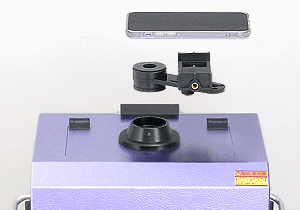

Universal adapter supports many smartphone sizes.
Wide viewing window helps accurate gel cutting.
Compact setup for teaching labs, small labs and routine imaging.

Set Composition & Price

Pict LaBox smartphone system composition

Set Code	Price	System Composition
PLBXS-USA	US$ 940
PLBXS-USA -UV312 or 365	US$ 2,310
PLBXS-USA -505 or 470DF	US$ 1,890
	Product Code	MBP-PLBXS	MBP-USA	MBP-UV312 MBP-UV365	LED505-DF36W LED470-DF36W
	Price	US$ 830	US$ 110	US$ 1,370	US$ 950

Key Features

Wide Viewing Window

A wide viewing window with a built-in SC56 filter supports clear observation and accurate gel cutting. Viewing from directly above helps cut even narrow bands.

Light-Blocking Structure

The tilted filter lets stray light escape toward the back and ceiling, while the camera door blocks light from the front. This structure helps improve image contrast.

Double Doors & Click-Hinge

he double-door structure makes gel handling easier. Click-lock damper hinges keep the door open during work and help block external light when closed..

Pict LaBox wide workspace for gel cutting

Comfortable Gel Cutting Space

Side-wall openings provide working space for gel cutting. The design offers a surprisingly large workspace despite the compact body size.

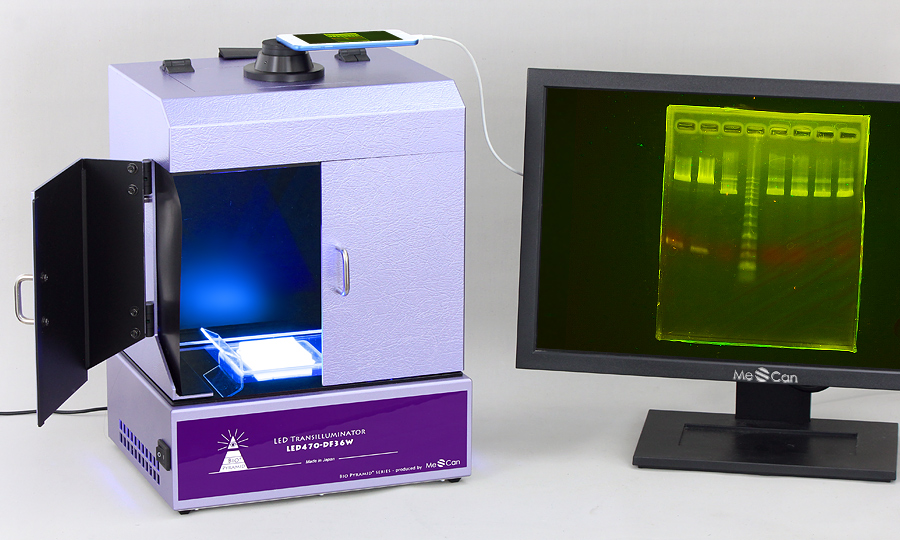

Pict LaBox compatible with UV and LED transilluminators

UV / LED Transilluminator Compatible

Pict LaBox can be used on top of many fluorescent excitation light sources when the surface is at least 220 mm wide and has no projections.

Pict LaBox Velcro tape fixing transilluminator

Secure Fixing for Smaller Illuminators

With Velcro tape, an illuminator smaller than the LaBox can also be fixed firmly for stable operation.

Optional Equipment

UV Transilluminator

UV excitation light source for compatible gel stains and workflows.

Details

LED Transilluminator

LED excitation light source for compatible fluorescence imaging.

Details

Optional Items

Additional helpful items for gel documentation and workflow setup.

Option Page

Specification

Maximum Shooting Area	200 x 167 mm Internal dimensions of the bottom of the box.
Shooting Distance	Approx. 280 mm, distance to the lens
Observation Window Size	196 x 103 mm
Compatible Filter Size	52 mm diameter filter
Filter	Built-in observation and photography filters. 52 mm diameter filter can be used as needed.
Sharp-Cut / Observation Window	UV transmittance, range: 220-450 nm. Max. 0.09%, average 0.02%. Actual measured values; not guaranteed values.
Material	ABS resin
Size	Width 280 mm x Depth 210 mm x Height 280 mm. Exterior dimensions. Camera mounting adapter not included.

Pict LaBox external dimensions and maximum shooting area

Need help selecting the right smartphone gel documentation set? Please tell us your smartphone model, gel size, stain, UV/LED preference and required workflow. We will recommend a suitable configuration.
