| All-in-one Gel Documentation solution now with built-in LED ! |
| Pict-LaBox, the ultimate all-in-one gel observation, documentation, and
cutting system now comes with built-in LED lights! You can select from two types of light sources (blue 470 and Cyan 505 nm) that can be chosen based on the fluorescent reagent used. |
| Canon G7X MIII Set | Olympus TG-7 Set |
| ◎ ◎ ◎ |
Adjustable tilt monitor for easy viewing High sensitivity large 1-inch sensor F1.8 Bright lens makes faint bands clear |
◎ ◎ ◎ |
Affordable, low-priced camera sets High-speed back-illuminated sensor Waterproof, dustproof, and shockproof ! |
 |
 |
|
 |

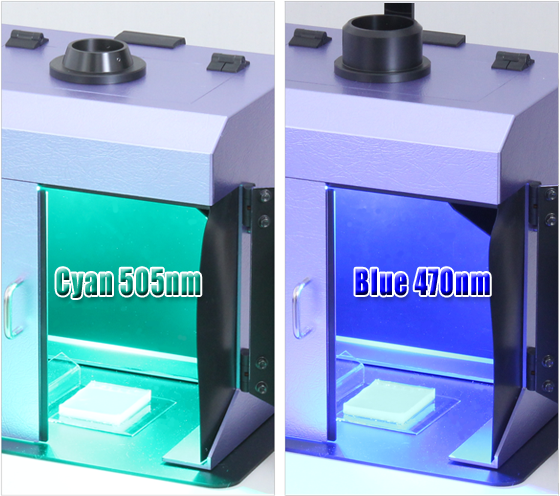

Blue 470nm and Cyan 505nm available ! Please select the one that best suits the fluorescent reagent of your choice. |
|
| LED 470nm for SYBR Green, SYBR Gold, SYBR Safe, Gel Green, Midori Green, SYPRO Orange, SYPRO Ruby, etc. |
||
| LED 505nm for EtBr, DsRed, AlexaFluor532, Flamingo, Gel Green, Gel Red, SYPRO Red, YFP, etc. |
||
 |
| Set Composition & Price |

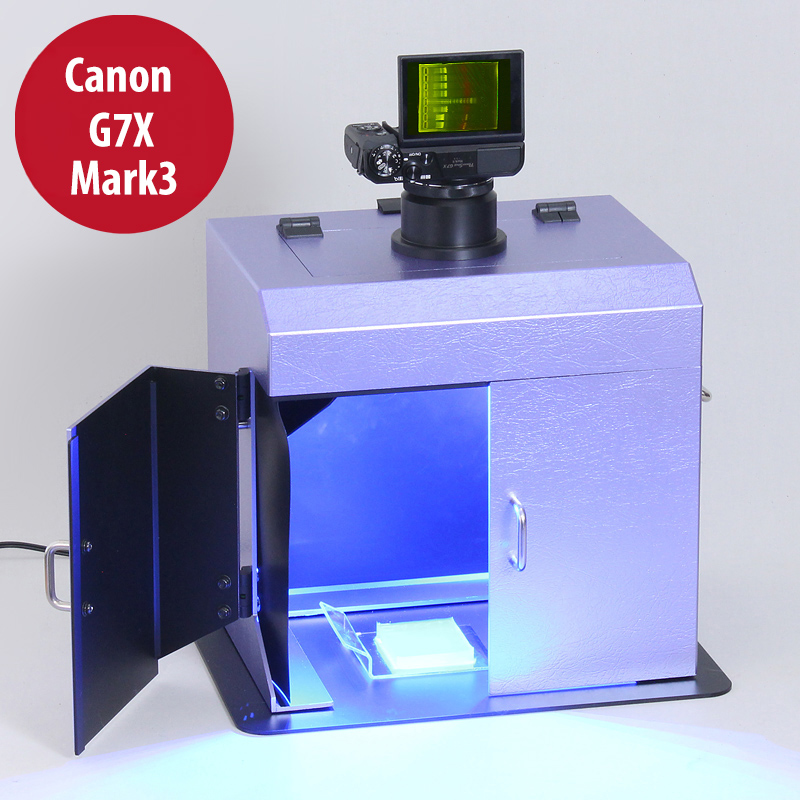

| Canon G7X Mark Ⅲ System |
 |
| Set Code | Price | System Composition | |
| Copy & Paste it to inquiry/order form ↓↓ | |||
| PLBXG-LED470 -G7XM3 |
US$ 2,680 |  |
 |
| PLBXG-LED505 -G7XM3 |
US$ 2,680 |  |
|
| Product Code | PLBXG-LED470/505 | G7XM3-SET | |
| Price | US$ 1,400 | US$ 1,280 | |

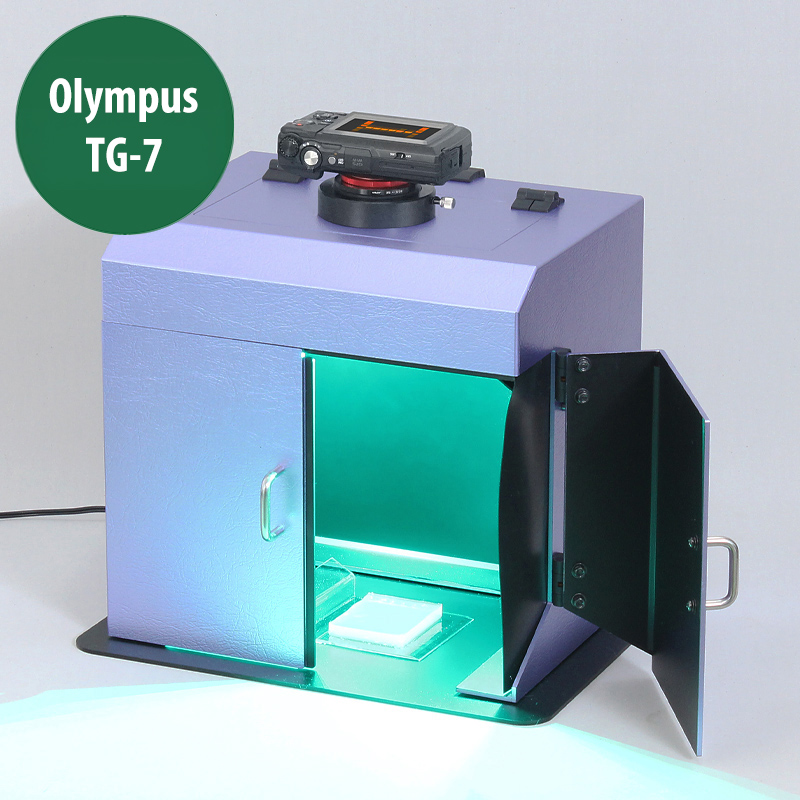

| Olympus TG-7 System |
 |
| Set Code | Price | System Composition | |
| Copy & Paste it to inquiry/order form ↓↓ | |||
| PLBXB-LED470 -TG7 |
US$ 2,050 |  |
 |
| PLBXB-LED505 -TG7 |
US$ 2,050 |  |
|
| Product Code | PLBXB-LED470/505 | TG7-SET | |
| Price | US$ 1,430 | US$ 620 | |
| Optional Equipment |
|
|
|
||||||||
 |
|
|
||||||||
| ★ Go to the Optional Items Page to find more helpful gel doc optional items! | ||||||||||
| Feature |
 |
 |
Clear Gel Image with a Light-Absorbing Structure. The filter is tilted forward to let light escape from the back and ceiling, while the camera door blocks light from the front. This ensures reliable and efficient gel cut-out with Pict-Labox. |
| Convenient Double-Doors and Click-Hinge The double door makes it easy to open/close while holding the gel. Click lock damper hinges keep it open while at work and completely block out light with no gap when closed. |
 |
 |
Incisions in the side walls provide ample workspace. With the slit on both sides, gel cutting can be done quickly by stretching your elbows to the side. It has a surprisingly large workspace despite its small size. |
| Compatible with most UV/LED Transilluminators. Pict-Labox can be used on top of most fluorescent excitation light sources if it has a more than 220 mm wide surface with no projections. (Smaller sizes may be fit inside the box) |
 |
| With the Velcro Tape, an illuminator smaller than the Labox can also be fixed firmly. |
| Specification |
| Body | |
| Maximum Shooting Area | 200 x 167 mm (Internal dimensions of the bottom of the box) |
| Shooting Distance | Approx 280mm (Camera mounting adapter not included) ★ Notice : Please use a digital camera that is able to focus on the shooting range at this distance. |
| Observation window size | 196 x 103 mm |
| Compatible Filter size | φ52mm filter |
| Filter | Built-in observation and photography filters (φ 52 mm diameter filter can be used as needed) |
| Sharp-cut / Observation window |
UV transmittance (Range: 220-450nm ) Max 0.09% Average 0.02 % * Actual measured values. Not guaranteed values. |
| Material | ABS resin |
| Size | Width : 280 x Depth : 210 mm (exterior dimension) Hight : 280 mm (Camera mounting adapter not included) |
 |
|
| Built in LED | ||
| LED | 16 high-intensity chip-type LEDs arranged in parallel | |
| Peak Wavelength | Blue 470nm | Cyan 505nm |
| Radiation Method | Downward-facing dark field illumination * Irradiate from diagonally above the left and right |
|
| Compatible reagents | SYBR Green, SYBR Gold, SYBR Safe, Gel Green, Midori Green, SYPRO Orange, SYPRO Ruby, etc. |
EtBr, DsRed, AlexaFluor532, Flamingo, Gel Green, Gel Red, SYPRO Red, YFP, etc. |
| Power supply (AC adapter) | Input: 100-240V 5-60Hz universal Output: 24V 2.7A (65W) PSE / UL / CE certified |
|
| Power consumption) | 21W | 23W |
| Lamp life | 40,000 hours (estimated calculation time) | |
| Accessories | AC-DC adapter, instruction manual | |
| Camera | |
 |
 |
| Canon PowerShot G7X Mark3 Please refer Canon Web Page for detailed specs. |
Olympus Tough TG-7 Please refer Olympus Web Page for detailed specs. |
 |
 |
