| All-in-one Gel Documentation solution ! |

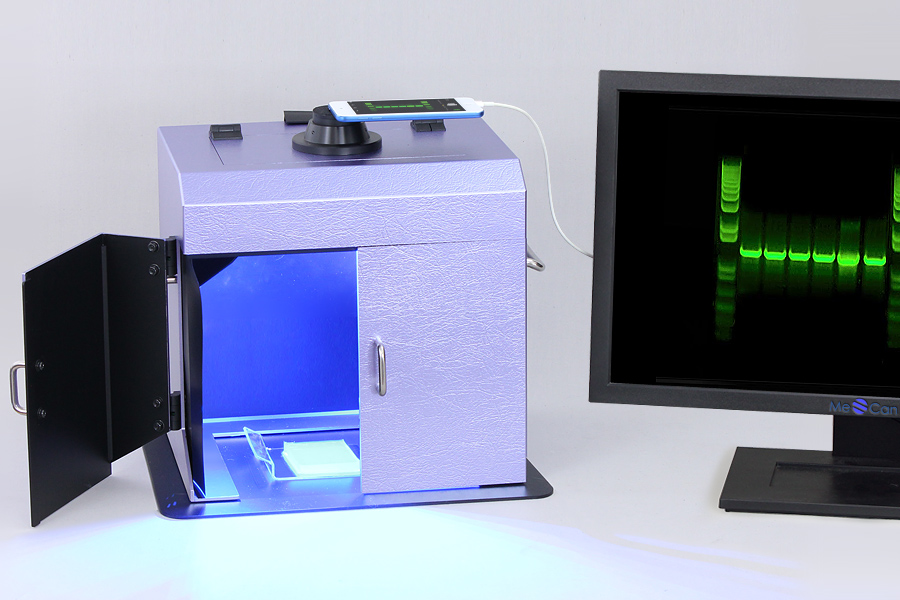

| Introducing Pict-LaBox, the all-in-one gel imaging, cutting, and observation
system. It comes with a universal smartphone adapter and built-in LED lights. You can select between blue 470 and Cyan 505 nm light sources based on your fluorescent reagent. Upgrade to our universal smartphone adapter system today and enjoy modern gel documentation at its best! |
 |
||
| Blue LED 470 nm for SYBR Green, SYBR Gold, SYBR Safe, Gel Green, Midori Green, SYPRO Orange, SYPRO Ruby, etc. |
||
| Cyan LED 505 nm for EtBr, DsRed, AlexaFluor532, Flamingo, Gel Green, Gel Red, SYPRO Red, YFP, etc. |
| Universal Adapter | iPhone Adapter | |||
 |
 |
|||
| Compatible with most smartphones ! Width adjustment range 5.7cm -10.5cm |
Compatible with iPhone 7/8/SE and 6/6s |
| Set Composition & Price |
|
| Set Code | Price | System Composition | ||
| Copy & Paste it to inquiry/order form ↓↓ | ||||
| PLBXS470 | US$ 1,370 |  |
||
| PLBXS470-USA | US$ 1,480 | |
 |
|
| PLBXS470-iPA | US$ 1,450 | |
 |
|
| Product Code | PLBXS-LED470 | MBP-USA | MBP-iPA | |
| Price | US$ 1,370 | US$ 110 | US$ 80 | |
| Set Code | Price | System Composition | ||
| Copy & Paste it to inquiry/order form ↓↓ | ||||
| PLBXS505 | US$ 1,370 |  |
||
| PLBX505-USA | US$ 1,480 | |
|
|
| PLBXS505-iPA | US$ 1,450 | |
|
|
| Product Code | PLBXS-LED505 | MBP-USA | MBP-iPA | |
| Price | US$ 1,370 | US$ 110 | US$ 80 | |
| Optional Equipment |
|
|
|
||||||||
| High quality UV Transilluminator equipped with high contrast filter capable to eliminate background |
Hi36W class, high power LED Transilluminator. 470 and 505nm (visible ray) |
60W class, Super high power LED Transilluminator. 470 and 505nm (visible ray) |
||||||||
 |
|
|
||||||||
| ★ Go to the Optional Items Page to find more helpful gel doc optional items! | ||||||||||
| Feature |
 |
 |

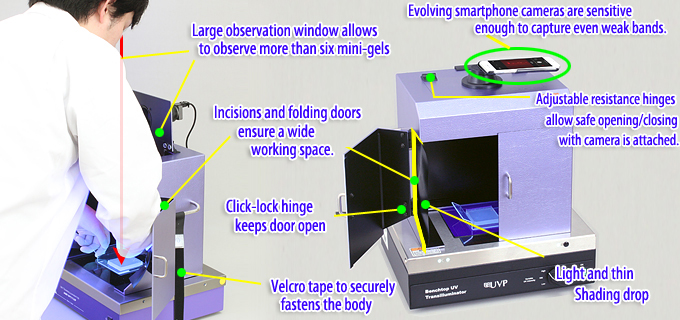

Clear Gel Image with a Light-Absorbing Structure. The filter is tilted forward to let light escape from the back and ceiling, while the camera door blocks light from the front. This ensures reliable and efficient gel cut-out with Pict-Labox. |
| Convenient Double-Doors and Click-Hinge The double door makes it easy to open/close while holding the gel. Click lock damper hinges keep it open while at work and completely block out light with no gap when closed. |
 |
 |
Incisions in the side walls provide ample workspace. With the slit on both sides, gel cutting can be done quickly by stretching your elbows to the side. It has a surprisingly large workspace despite its small size. |

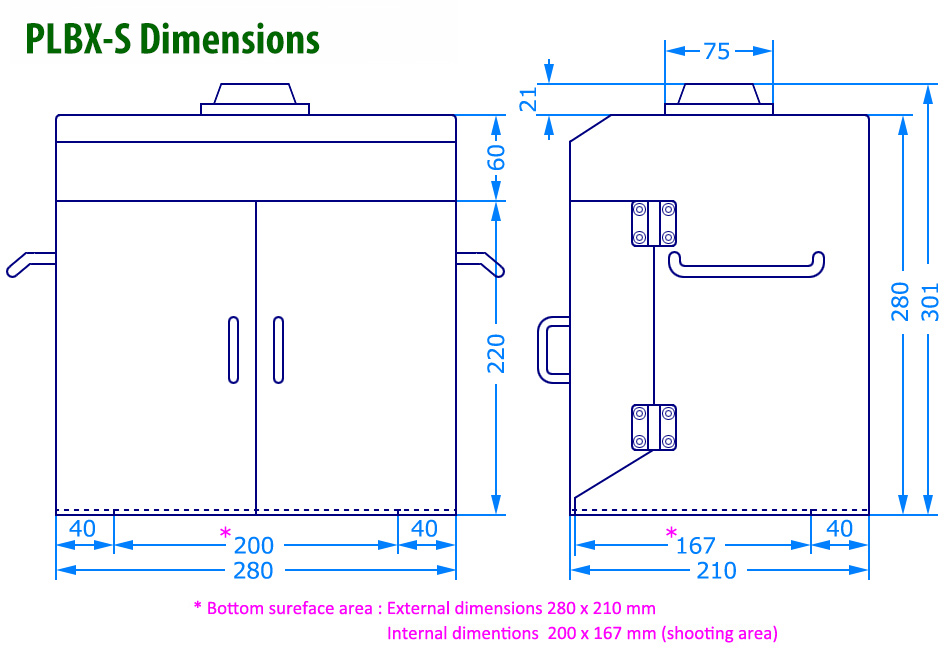

| Compatible with most UV/LED Transilluminators. Pict-Labox can be used on top of most fluorescent excitation light sources if it has a more than 220 mm wide surface with no projections. (Smaller sizes may be fit inside the box) |
 |
| With the Velcro Tape, an illuminator smaller than the Labox can also be fixed firmly. |
 |
| Specification |
| Built in LED | ||
| LED | 16 high-intensity chip-type LEDs arranged in parallel | |
| Peak Wavelength | Blue 470nm | Cyan 505nm |
| Radiation Method | Downward-facing dark field illumination * Irradiate from diagonally above the left and right |
|
| Compatible reagents | SYBR Green, SYBR Gold, SYBR Safe, Gel Green, Midori Green, SYPRO Orange, SYPRO Ruby, etc. |
EtBr, DsRed, AlexaFluor532, Flamingo, Gel Green, Gel Red, SYPRO Red, YFP, etc. |
| Power supply (AC adapter) | Input: 100-240V 5-60Hz universal Output: 24V 2.7A (65W) PSE / UL / CE certified |
|
| Power consumption) | 21W | 23W |
| Lamp life | 40,000 hours (estimated calculation time) | |
| Accessories | AC-DC adapter, instruction manual | |
 |
 |
