HD Camcorder Microscope Adapter　-　Installation

Select your connection method

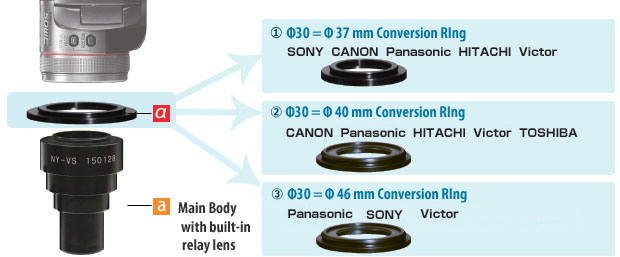

Microscope Adapter for Camcorder (1Set = 6 pieces)

1. C-Mount Installation

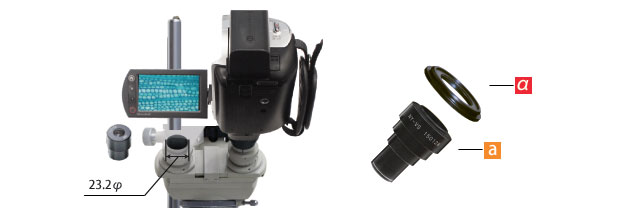

2-1. Φ 23.2 mm Eyepiece Installation

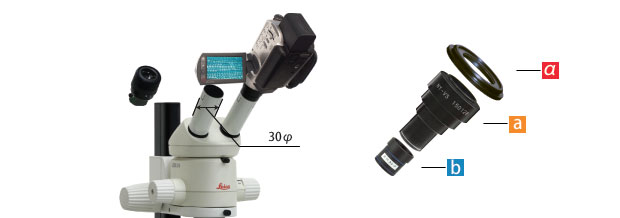

2-2. Φ 30.0 mm Eyepiece Installation

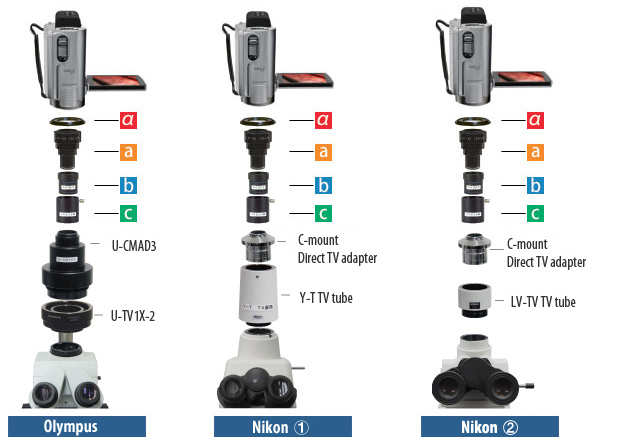

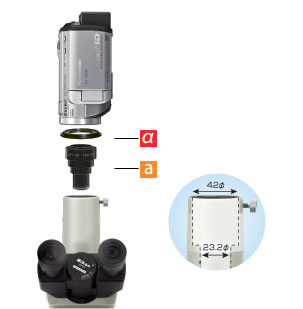

3. Nikon F-type phototube Installation

Fixation Sleeve (* option)

PT Tube Sleeve NY-BH JIS Tube Sleeve NY-JIS

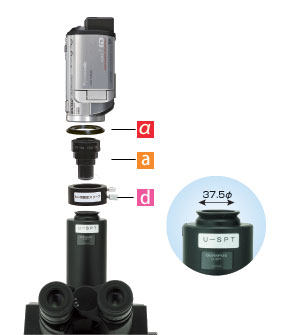

4. Olympus PT Phototube Installation (* PT Phototube Sleeve required)

	NY-BH (*option)
Compatible with SZ-PT, SZH-PT, U-SPT, IX-PT, etc.

★Olympus Trinocular with no phototube (only plastic cap) When there is no phototube attached to trinocular port with cap only, use Olympus adapter U-TV1X-2 and U-CMAD3 (C-mount adapter) →

5. Old Olympus Installation (* BH type and other - PT Phototube Sleeve required)

	NY-BH (*option)

6. JIS Phototube Installation (* JIS Phototube Sleeve required)

	NY-JIS (*option)

7. Ocular Micrometer Installation

Speciality Ocular Micrometer for Photomicrography S11-CF
10mm / 100div / 0.1mm pitch S11-CF Sample Images	Regular ocular micrometer has a scale and numbers etched at the center. S11-CF removed the numbers and shifted the scale from center for clear view !!
	Various type of Ocular/Stage Micrometer available !
