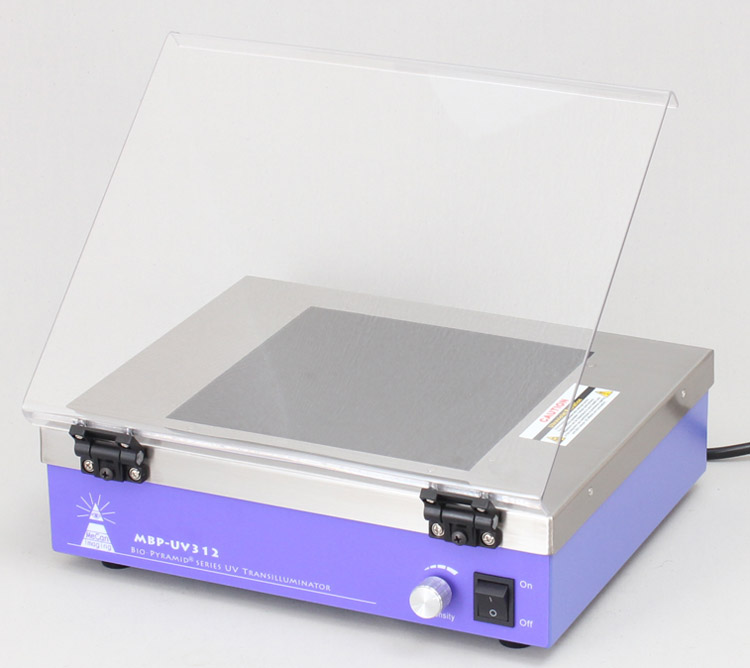

@@UV Transilluminator - MBP-UV312 / MBP-UV365
|
|
High Power - 8W x 6 lamps |
High contrast filter (high UV transmittance/IR cut ratio) would eliminate
background glow that is often captured along when documenting gels,
enables to capture clear image of even faintly excited band. Jointly developed
with Japanese image processing/lighting equipment manufacturers, MBP-UV312/365
boast premium quality and performance at budget price ! |
 |
 |
|
|
|
@Set Composition & Price |
| Product |
Item Code |
Price |
| High Contrast UV Transilluminator |
MBP-UV312 |
US$ 1,370 |
| MBP-UV365 |
US$ 1,370 |

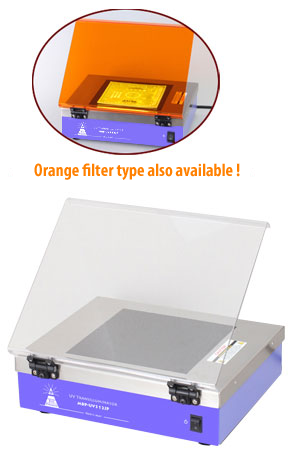

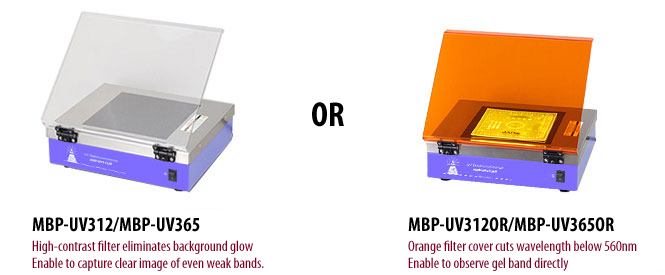

High Contrast UV Transilluminator
with Orange Filter Cover |
MBP-UV312-OR |
US$ 1,400 |
| MBP-UV365-OR |
US$ 1,400 |
|
|
| 1. |
Transilluminator |
| 2. |
Safety Goggle (cut IR/Blue wave) |
| 3. |
Gel Tray (UV transmittance) |
| 4. |
Gel Target - Mini Gel size |
|
(for focus/angle of view adjustment) |
* Two wavelengths available.
@Please select either 312 or 365nm |
|
|
@Gel Doc System Composition & Price |
| @Canon G7X Mark V System |
| Set Code |
Price |
System Composition |
| Copy & Paste it to inquiry/order form «« |
MBP03G-G7XM3
-UV312 |
US$ 3,140 |
 |
|
 |
 |
MBP03G-G7XM3
-UV312OR |
US$ 3,170 |
|
 |
|
|
|
Product Code |
MBP-UV312 |
MBP-UV312OR |
MBP-03G |
G7XM3-SET |
| Price |
US$ 1,370 |
US$ 1,400 |
US$ 490 |
US$ 1,280 |
| Set Code |
Price |
System Composition |
| Copy & Paste it to inquiry/order form «« |
MBP03B-TG7
-UV312 |
US$ 2,510 |
|
|
 |
 |
MBP03B-TG7
-UV312OR |
US$ 2,540 |
|
|
|
|
|
Product Code |
MBP-UV312 |
MBP-UV312OR |
MBP-03B |
TG7-SET |
| Price |
US$ 1,370 |
US$ 1,400 |
US$ 520 |
US$ 620 |
| |
MBP-UV312 |
MBP-UV365 |
| @Filter Size |
200 x 200 mm |
| @Filter Type |
High contrast UV filter |
| @Peak wavelength |
312 nm |
365 nm |
| @# of UV lamps |
6 |
| @Lamps power |
8w x 6 (built-in reflector) |
| @Surface material |
Stainless steel |
| @Safety measure |
UV shield cover |
| @Power |
100V}11V@ 50-60Hz@/@48W |
| @Operating environment |
Temp@5 - 40 / Humidity up to 80% |

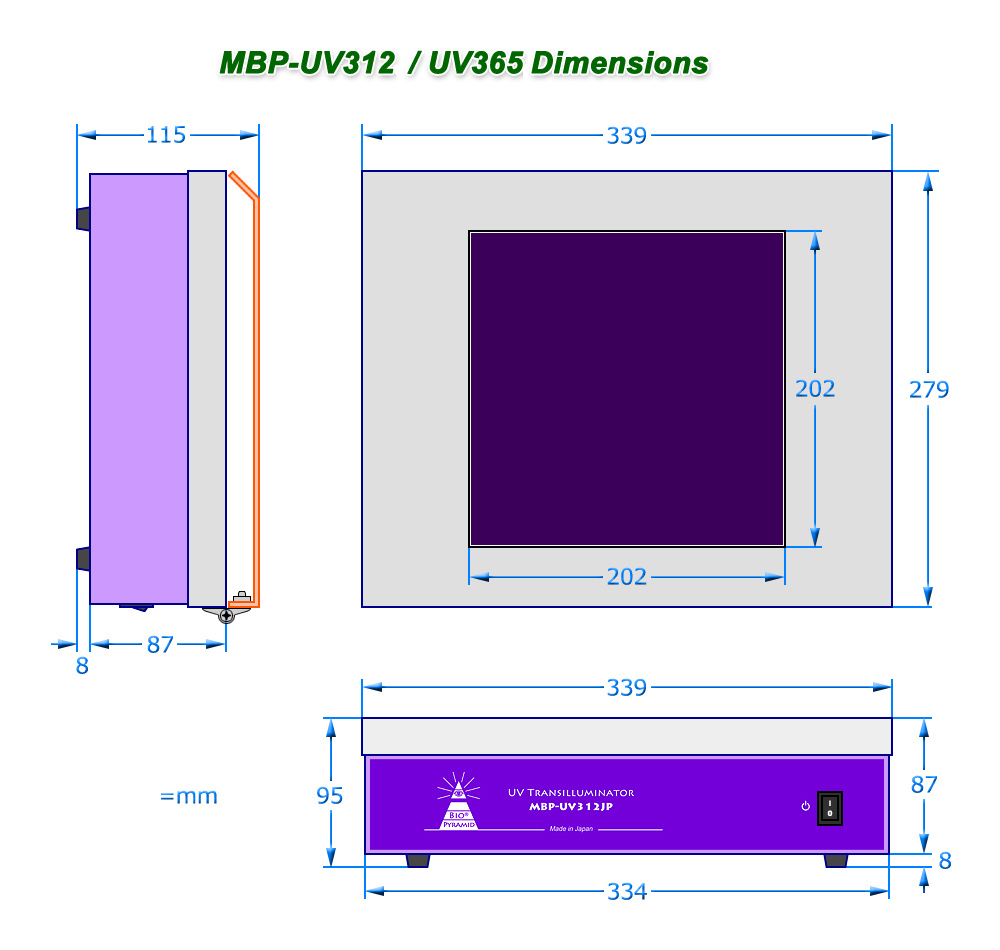

| @Size E Weight |
W339 x L279 x H115mm@7.4kg |
 |
