Linear Polarizing Film

SHLP41 Super High Contrast Non Adhesive

KLP43(S) High Contrast Adhesive and Non Adhesive

SZLP40LA High Contrast Thick Type Non Adhesive

MSHC40S High durable High contrast Adhesive

Wire Grid High durable works in visible-IR range

High Performance Linear polarizing film Available from single sheet ! Developed originally for LCD, our high quality polarizer films can be implemented to broad uses such as for strain inspection polariscope or polarizing 3D glasses. Wire grid polarizer (effective in visible to IR range) is also available.

SHLP41N - Roll Type Linear polarizer Film - Super High Contrast

Single transmittance = 42 % / Cross transmittance = less than 0.03 % (Polarizer : PVA / Base : TAC) Wide angle, super high-contrast polarizer originally developed for large size LCD.

	SHLP41N Data Sheet Film Structure Optical Axis

Item Code		Size		Unit Price
SHLP41N-1	Non-Adhesive	63 x 100 cm | t=0.18 mm		$ 161
SHLP41N-2		63 x 50 cm | t=0.18 mm		$ 89
SHLP41N-Roll		Size		Price /m
		★ Roll Type  Width 63 cm | t=0.18 mm	2-3 m	$ 152 /m
			4-9 m	$ 145 /m
			10 m -	$ 123 /m

* Small free sample piece available. Please use Inquire form for request. * Bulk price available for more than 10 unit order

KLP43/ KLP43S- Linear Polarizer Film - High Contrast

Single transmittance 43±2% / Cross transmittance of 0.01 % or less (Polarizer : PVA / Base : TAC) High-contrast, high extinction ratio polarizer at budget price to meet a wide range of demands.

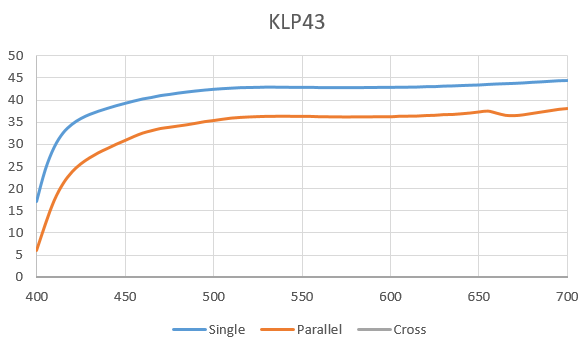

KLP43 Data Sheet Film Structure Optical Axis KLP43S Data Sheet

Item Code		Size		Unit Price
KLP43-1	Non-Adhesive	100 x 62 cm | t=0.19 mm		$ 116
KLP43-2		50 x 62 cm | t=0.19 mm		$ 58
KLP43S-1	Adhesive	100 x 62 cm | t=0.21 mm		$ 133
KLP43S-2		50 x 62 cm | t=0.21 mm		$ 68

* Small free sample piece available. Please use Inquire form for request. * Bulk price available for more than 10 unit order

SZLP40LA - Linear Polarizer Film - Thick Type ・ High Contrast

Single transmittance > 40% / Cross transmittance ave. 0.02 % (Polarizer : PVA / Base : TAC) High performance, thick type (t=0.3mm) polarizer used often for polarizer 3D glasses. Easy to handle characteristic makes it popular in factory lines or for polariscopes as well.

Data Sheet	Film Structure Optical Axis

Item Code		Size		Unit Price
SZLP40LA-1	Non-Adhesive	100 x 62 cm | t=0.3 mm		$ 120
SZLP40LA-2		50 x 62 cm | t=0.3 mm		$ 65

* Small free sample piece available. Please use Inquire form for request. * Bulk price available for more than 10 unit order

MSHC40S - Linear Polarizer Film - Dye Type ・ Super Durable ・ Wide Angle ・ High Contrast

Single transmittance = 40% / Cross transmittance ave 0.06% (Dye type polarizer / Base : TAC) Dye type, high heat resistance polarizer applicable even for polarizing 3D system setup. For adhesive, please make sure to adhere to cast acrylic or glass such that it does not interfere with optical performance of film.

Data Sheet	Film Structure Optical Axis

Item Code		Size		Unit Price
MSHC40S-1	Adhesive	100 x 62 cm | t=0.22 mm		$ 221
MSHC40S-2		50 x 62 cm | t=0.22 mm		$ 123
MSHC40S-4		50 x 31 cm | t=0.22 mm		$ 70

* Small free sample piece available. Please use Inquire form for request. * Bulk price available for more than 10 unit order
