@@Wire Grid Polarizing Film


World's First Plastic Film-Based Wire Grid Polarizing Film !
The wire grid polarizer has a high polarization separation performance in the
broad wavelength from visible to IR ray range using metal nanowires.
Furthermore, it has superior heat resistance compared to a general absorption polarizer.

Wire Grid Polarizing film


  @Wire Grid Polarizer


¡ A reflective polarizer without absorption loss
¡ Flexible & excellent processability
¡ Less wavelength dependence
(Visible light - infrared light)
¡ Excellent durability under high temperature
(60Ž/ 90%RH / 1500h, 105Ž/ Dry / 1000h)
Wire Grid Polarizer Film

Wire Grid Polarizing film
Grid Structure | Section SEM image

  @Application of Wire Grid Polarizing Film


¡ PBS (Polarizing Beam Splitter)
An optical component consisting of a Wire
Grid Polarizer sandwiched between prisms,
widely used in AR-glass that uses LCOS.

¡ Framed filter
Attachment of Wire Grid Polarizer
on the glass to the frame. It can be
attached to sensors and other devices.


Uses Wavelength Effects Precedent
 Head-up Display Visible light Improved heat resistance yes
 AR Glass Visible light PBS with high grazing incidence characteristics yes
 Polarized Light for  inspection Machine Visible light Improved heat resistance yes
 Onboard Camera IR (-1,000nm) Anti-reflection yes
 Surveillance camera IR (-1,000nm) Anti-reflection yes
 Biometric authentication  (vein, iris, etc.) IR (-1,000nm) Anti-reflection yes
 Semiconductor
 inspection machines
IR (-1,000nm) Anti-reflection yes
 Industrial inspection  camera IR (-1,000nm) Anti-reflection yes
 Fundus/Retinal  Examination Equipment IR (-1,000nm) Anti-reflection yes
 Sorting machines such as  fruit sorting machines IR (-1,000nm) Anti-reflection yes
 Radars THz/mm waves Prevention of
interference, etc.
pending


  @Price

@High Transmittance Grade

Non Adhesive Type  Wire Grid Polarizing film
Item Code Size Unit Price
 MLP-WG Non
-Adhesive
80 x 240 mm
t=80 ƒÊm
$ 172
 MLP-WG sample 80 x 50 mm
t=80 ƒÊm
$ 55
Wire Grid Polarizing film
 MLP-WG
 Data sheet
 Composition
Adhesive Type
Item Code Size Unit Price
 MLP-WGS Adhesive 80 x 240 mm
t=100 ƒÊm
$ 199
 MLP-WGS sample 80 x 50 mm
t=100 ƒÊm
$ 66
Wire Grid Polarizing film
 MLP-WGS
 Data sheet
 Composition


@High Contrast Grade

Non Adhesive Type  Wire Grid Polarizing film
Item Code Size Unit Price
 MLP-HC Non
-Adhesive
80 x 240 mm
t=80 ƒÊm
$ 172
 MLP-HC sample 80 x 50 mm
t=80 ƒÊm
$ 55
Wire Grid Polarizing film
Adhesive Type
Item Code Size Unit Price
 MLP-HCS Adhesive 80 x 240 mm
t=100 ƒÊm
$ 199
 MLP-HCS sample 80 x 50 mm
t=100 ƒÊm
$ 66
Wire Grid Polarizing film




 Notice




  @Specification

 Products and main specifications
grade name  optical grade  size substrate adhesive Transmittance
450nm 550nm 650nm
HT11N High
transmittance
240 x 80mm
x 2pcs
TAC
80ƒÊm
No Tp 80.6% 87.6% 89.4%
HT11U on substrate Tc (0.13%) (0.05%) (0.03%)
HC11N High
contrast
240 x 80mm
x 2pcs
TAC
80ƒÊm
No Tp 78.7% 83.0% 83.2%
HC11U on substrate Tc (0.05%) (0.02%) (0.01%)

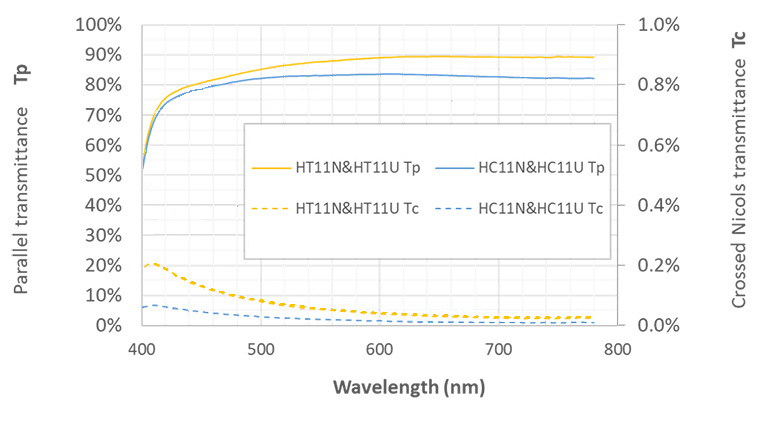

 Visible Light and Near Infrared field - Transmittance characteristics
Visible Light Field
Wire Grid Polarizing film
Near Infrared Field
* maintains polarization performance even in the near-infrared field
Wire Grid Polarizing film
